The Luxe Collection Triple Water Filtration System

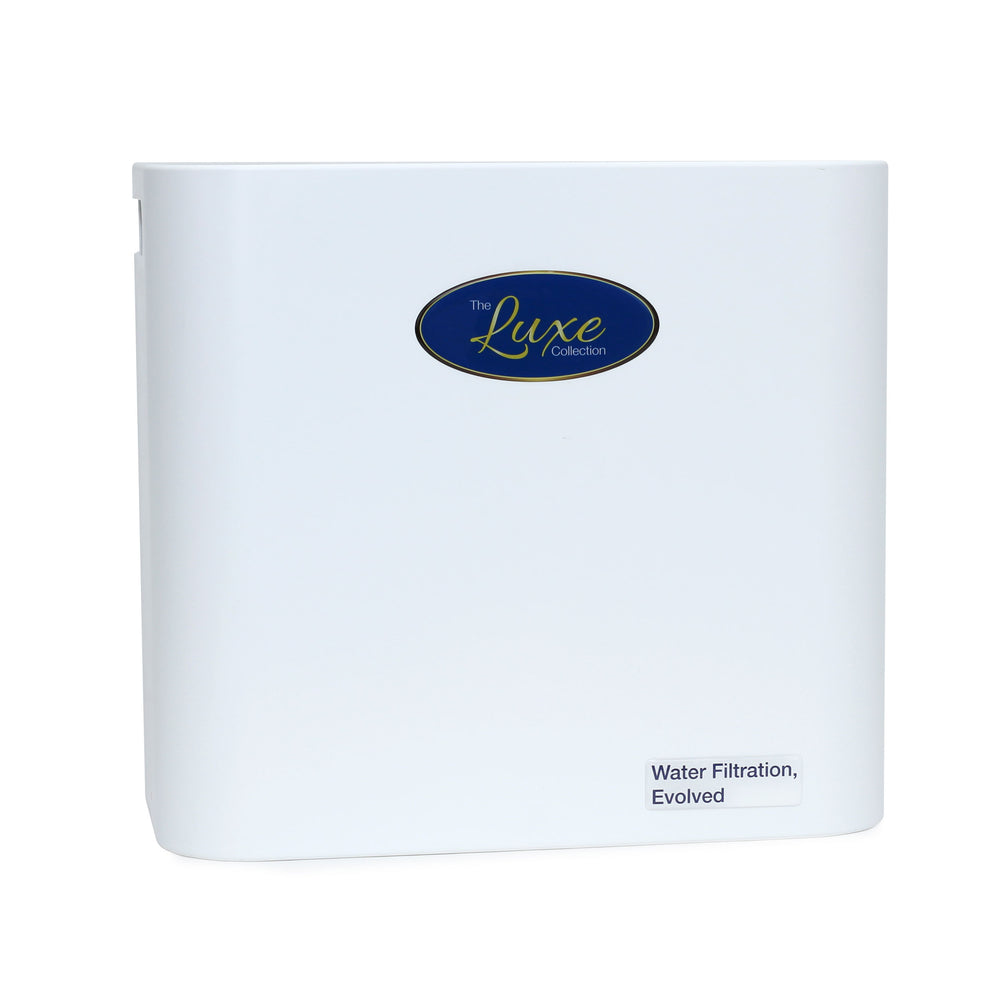

The Luxe Collection bench top water filter system

At a Glance

Application

Under-sink drinking water filtration

Water Source

Town water

Filtration

Multi-stage filtration

Installation

Under-sink / point-of-use installation

Technical Specifications

Dimensions, flow rates, operating limits and system specifications

System	The Luxe Collection Triple Water Filtration System
Dimensions	H= 340mm W= 370mm D=160mm
Max. Flow	Max. 3L per minute
Operating Pressure	200 - 600 kPa
Operating Temperature	0 - 60°C
WaterMark	Lead Free - AS 3497, Licence no. 040326
Certification	NSF Certified materials

Installation & Technical Drawings

Installation requirements, connections, clearances and technical drawings

Installation	Under-sink / point-of-use installation
Installer	Installation by a licensed plumber
Connections	Connects to the cold water supply beneath the sink and supplies filtered water to the selected outlet configuration.
Service Clearance	Allow sufficient space beneath the sink for the filtration system and access for cartridge replacement and servicing.

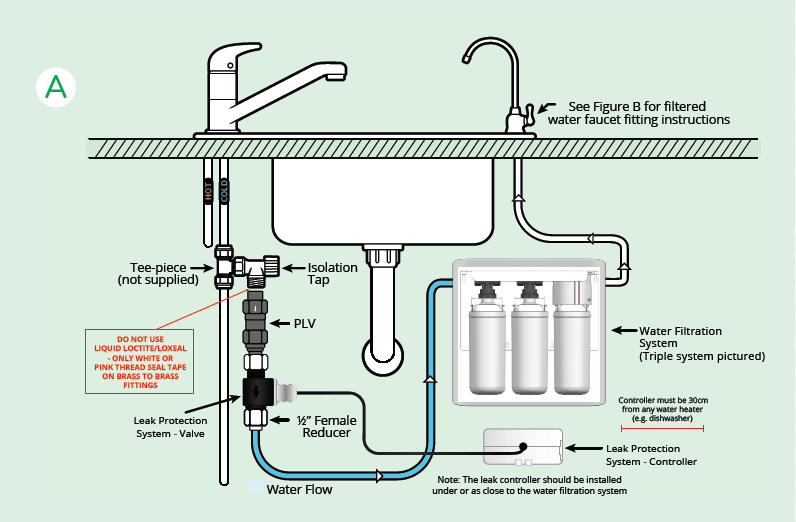

Technical Drawing

Download Installation Guide

Install on the cold water supply only. Position the system to allow convenient access to all filter cartridges for routine replacement and servicing.

Filtration Performance

Filtration stages, contaminant reduction and performance data

Filtration Configuration	Ultra Pre-Filter + HTO or HTO+
Filtration Performance	Multi-stage drinking water filtration combining fine sediment pre-filtration with HTO or HTO+ filtration. The HTO+ configuration provides additional targeted contaminant reduction compared with HTO.
PFAS	HTO+ provides targeted PFAS reduction. Refer to applicable HTO+ performance data for specific compounds, reduction results and test conditions.

Performance varies according to the selected HTO or HTO+ cartridge configuration. Refer to the applicable cartridge performance data for specific contaminant reduction results.

Performance Testing: Independent laboratory testing applicable to the selected HTO or HTO+ cartridge.

Performance varies according to cartridge configuration, incoming water quality, flow rate, usage and cartridge condition. Refer to the applicable performance data for specific contaminant reduction claims and test conditions.

View Filtration Performance Data

Components & What’s Supplied

Included cartridges, components, fittings and installation hardware

System	Luxe Triple under-sink filtration system and mounting assembly
Cartridges	Luxe Ultra Pre-Filter + selected Luxe HTO or HTO+ filtration cartridge
Fittings & Hardware	Installation fittings and connection hardware supplied with the system
Tap / Faucet	Optional extra – compatible filtered water faucets are available separately.

Primary filtration cartridge varies according to the HTO or HTO+ system option selected. Filtered water faucets are optional extras and are not included as standard. Additional plumbing materials may be required depending on the installation.

Technical Documents & Certifications

Specifications, installation guides, certifications and technical downloads

Document	Action
Installation Guide	Download
Installation & Compliance Guide	Download

Installation of this system must be carried out by a licensed plumber in accordance with the Plumbing Code of Australia (PCA), AS/NZS 3500 (all relevant parts), and any applicable state or local regulations.
