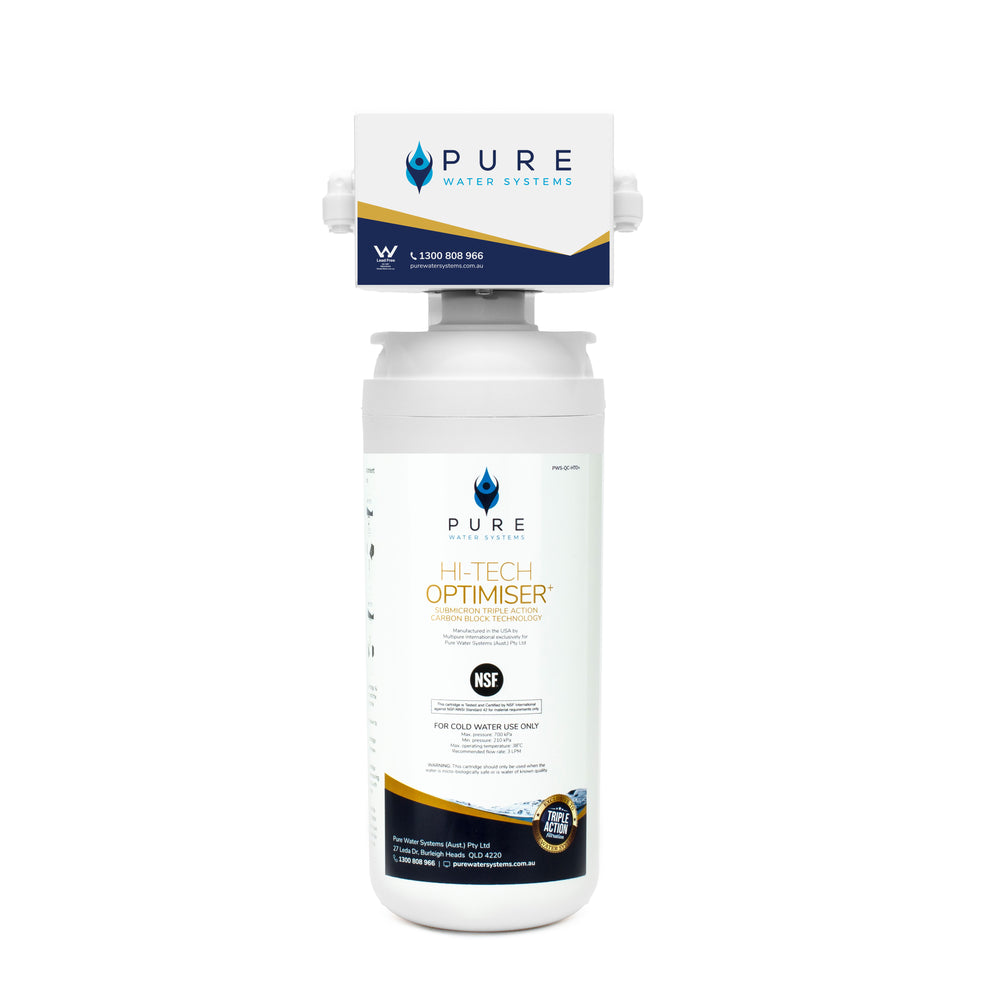

Single Quick Change Under Sink Water Filter System (without faucet)

Descriptive text goes here

At a Glance

Application

Under-sink drinking water filtration

Water Source

Town water

Filtration

Single-stage filtration

Installation

Under-sink / point-of-use installation

Technical Specifications

Dimensions, flow rates, operating limits and system specifications

Dimensions	H=320mm x L=270mm x D=130mm
Max. Flow	3L per minute
Operating Pressure	30 - 100 psi (210 - 700 kPa)
Operating Temperature	4.4 - 38°C
WaterMark	Lead Free - AS 3497, Licence no. 040326
Certification	NSF Certified materials

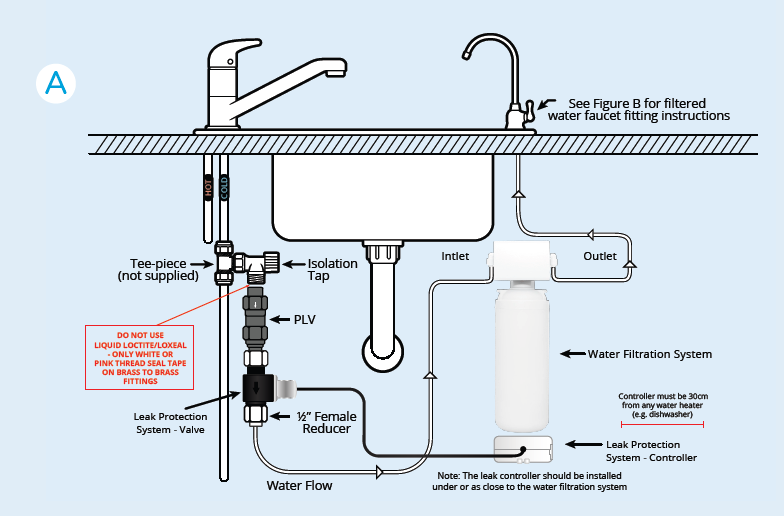

Installation & Technical Drawings

Installation requirements, connections, clearances and technical drawings

Installation	Under-sink / point-of-use installation
Installer	Installation by a licensed plumber
Connections	Connects to the cold water supply beneath the sink and supplies filtered water to the selected outlet configuration.
Service Clearance	Allow sufficient space beneath the sink for the filtration system and access for cartridge replacement and servicing.

Install on the cold water supply only. Position the system where the quick-change cartridge remains accessible for routine replacement and servicing.

Filtration Performance

Filtration stages, contaminant reduction and performance data

Filtration Configuration

Stage	Configuration

Testing: Independent laboratory testing applicable to the selected HTO or HTO+ cartridge.

Performance varies according to cartridge selection, incoming water quality, flow rate, usage and cartridge condition. Refer to the applicable performance data for specific contaminant reduction claims and test conditions.

Components & What’s Supplied

Included cartridges, components, fittings and installation hardware

System	Single Quick Change filter head and mounting assembly
Cartridges	Selected HTO or HTO+ filtration cartridge
Fittings & Hardware	Installation fittings and connection hardware supplied with the system
Tap / Faucet	Optional extra – dedicated filtered water faucets are available separately.

Cartridge supplied varies according to the HTO or HTO+ system option selected. Dedicated filtered water faucets are optional extras and are not included as standard. Additional plumbing materials may be required depending on the installation.

Technical Documents & Certifications

Specifications, installation guides, certifications and technical downloads

Document	Action
Installation Guide	Download
Installation & Compliance Guide	Download

Installation of this system must be carried out by a licensed plumber in accordance with the Plumbing Code of Australia (PCA), AS/NZS 3500 (all relevant parts), and any applicable state or local regulations.
