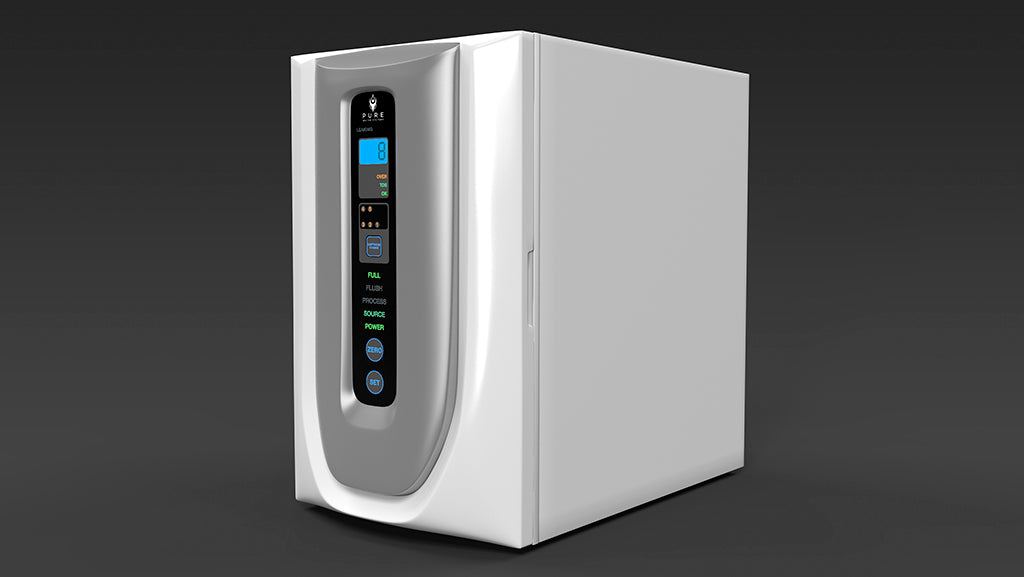

RO-5U Reverse Osmosis Water Purifier

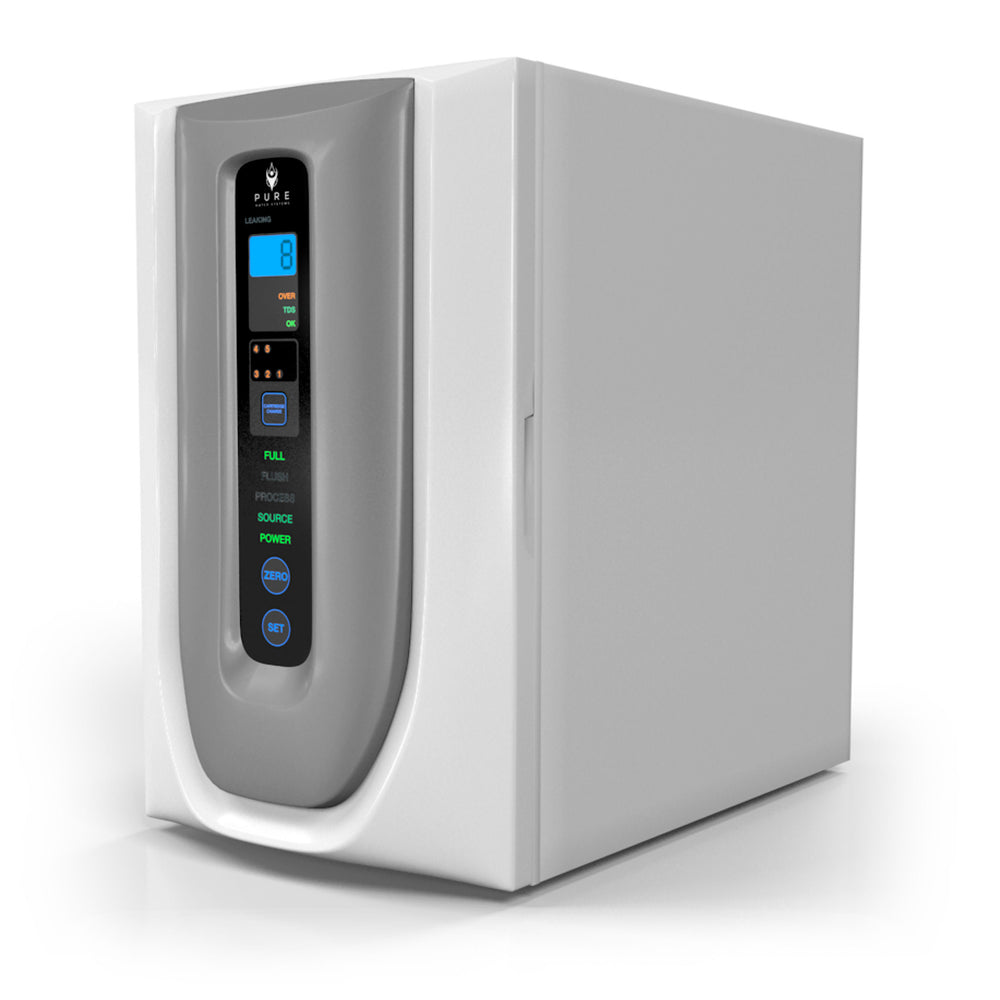

White and gray compact reverse osmosis water purifier with digital display panel.

At a Glance

Application

Under-sink drinking water purification

Water Source

Town water

Filtration

Five-stage reverse osmosis purification with remineralisation

Installation

Under-sink / point-of-use installation

Technical Specifications

Dimensions, flow rates, operating limits and system specifications

System	RO-5U Reverse Osmosis Water Purifier
Dimensions	H 390 mm × W 245 mm × D 390 mm
Max. Flow	189 L/day (50 GPD) production capacity
WaterMark	WMTS-103
Certification	Holding tank NSF approved and certified; power supply AS/NZS 4417 approved
Technical Notes	5-stage reverse osmosis system with quick-change TFC membrane, integrated 8 L NSF approved and certified holding tank, booster pump, automatic membrane flushing, TDS monitoring, cartridge replacement reminders and automatic leak detection.

Installation & Technical Drawings

Installation requirements, connections, clearances and technical drawings

Installation	Under-sink / point-of-use reverse osmosis installation
Installer	Installation by a licensed plumber
Connections	Cold water supply only. Includes a 15 mm isolation valve and ½" × ¼" reducer. Requires connection to the cold water supply, filtered water faucet and drain. Drain installation must comply with AS/NZS 3500.2.
Service Clearance	Allow adequate under-sink space for the RO-5U and sufficient tubing length so the unit can be removed from the cupboard for servicing. Supporting shelf must be suitable for the 16.5 kg full system weight.

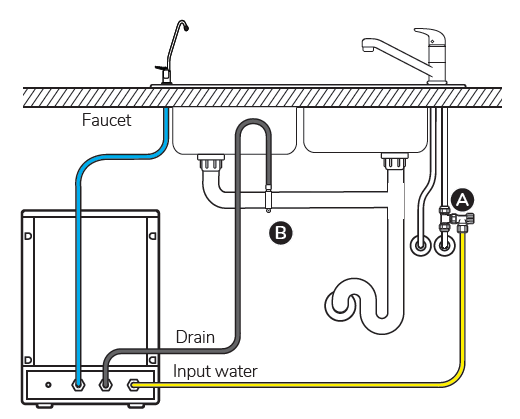

Technical Drawing

Download Installation Guide

Install in accordance with AS 3500.1, with the drain line installed in accordance with AS/NZS 3500.2. An internal pressure limiting valve is fitted, so an external pressure limiting valve is not required. The drain clamp must not be installed downstream of or directly on the trap. For a single-trap installation, a 50 × 40 mm trap extension is required.

Filtration Performance

Filtration stages, contaminant reduction and performance data

Filtration Configuration	5-stage reverse osmosis purification
Filtration Performance	Five-stage treatment incorporating sediment filtration, granular activated carbon, carbon block filtration, reverse osmosis and final post-treatment. The RO membrane reduces chemicals, total dissolved solids, metals, bacteria and viruses.

Stage 1 reduces sediment particles including sand, silt, dirt and rust down to a nominal size of 5 micron.

Stage 2 GAC reduces volatile organic compounds, pesticides, herbicides, chlorine and other chemicals.

Stage 3 Carbon Block reduces chlorine, organic chemicals and unpleasant taste.

Stage 4 reverse osmosis reduces chemicals, total dissolved solids, metals, bacteria and viruses.

Stage 5 provides final taste and odour treatment, with the GAC + Calcite option also raising water pH towards neutral.

Performance and cartridge life may vary depending on individual usage and incoming water quality.

Components & What’s Supplied

Included cartridges, components, fittings and installation hardware

System	RO-5U reverse osmosis system with integrated 8 L holding tank and booster pump
Cartridges	5 quick-change cartridges including RO membrane: Sediment, GAC, Carbon Block, RO Membrane and Stage 5 Post Carbon or GAC + Calcite cartridge (depending on selected configuration)
Fittings & Hardware	15 mm isolation valve and reducer, drain clamp and 3 metres of tubing
Safety & Protection	Integrated automatic leak detection and automatic inlet water shut-off

Includes AC/DC power supply. Stage 5 cartridge configuration varies according to the option selected. Installation must be completed by a licensed plumber.

Technical Documents & Certifications

Specifications, installation guides, certifications and technical downloads

Document	Action
Installation Guide	Download
Installation & Compliance Guide	Download

Installation of this system must be carried out by a licensed plumber in accordance with the Plumbing Code of Australia (PCA), AS/NZS 3500 (all relevant parts), and any applicable state or local regulations.
