The Luxe Collection Dual Action High Flow Water Filtration System

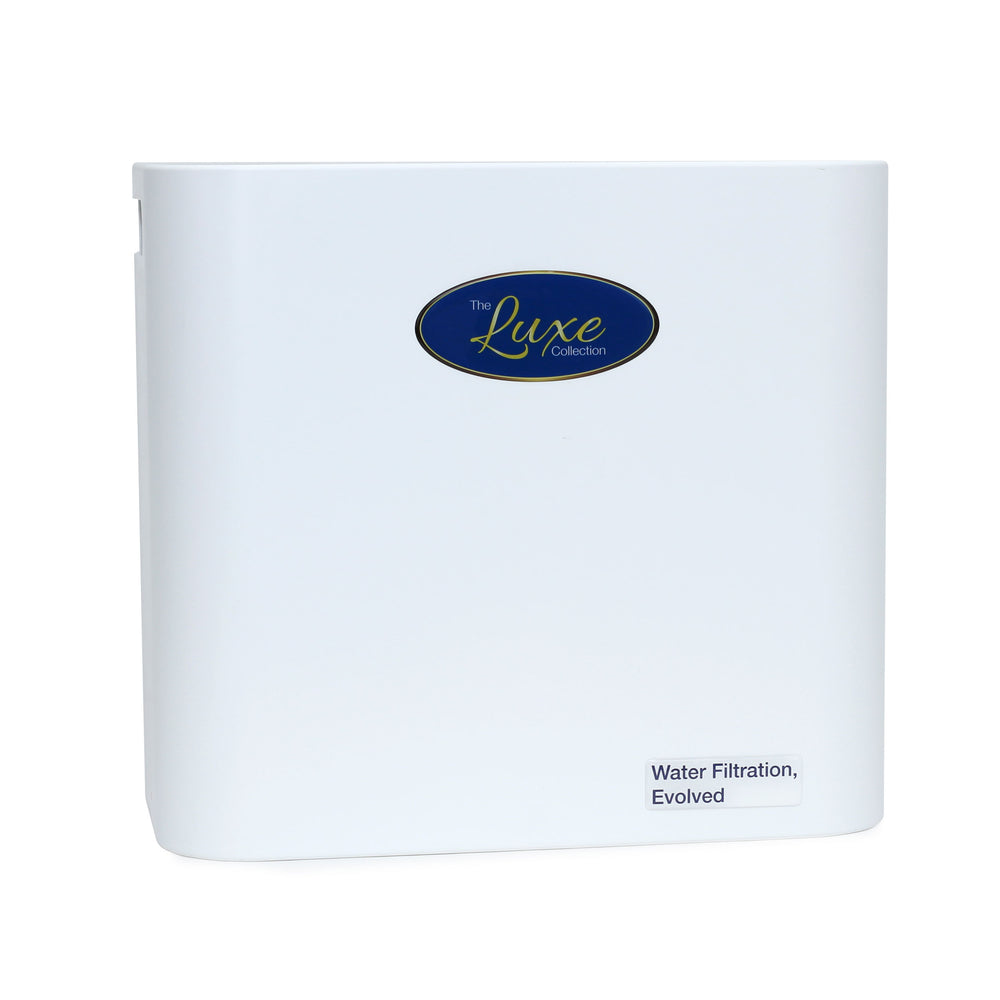

The Luxe Collection sleek white filter system

At a Glance

Application

Under Sink

Water Source

Town Water

Filtration

Dual Stage

Installation

Licensed Plumber Required

WaterMark Certification

Lead Free AS 3497, Licence No. 040326

Technical Specifications

Dimensions, flow rates, operating limits and system specifications

System	The Luxe Collection Dual Action High Flow Water Filtration System
Dimensions	H 340 × W 370 × D 160 mm
Max. Flow	Max. 3 L/min
Operating Pressure	200–600 kPa
Operating Temperature	0–60°C
WaterMark	Lead Free AS 3497, Licence No. 040326
Certification	NSF Certified materials

Installation & Technical Drawings

Installation requirements, connections, clearances and technical drawings

Installation	Under Sink
Installer	Licensed plumber installation required
Connections	Cold water supply Filtered water outlet to faucet or compatible 3-way mixer
Service Clearance	Allow sufficient access for cartridge replacement and servicing

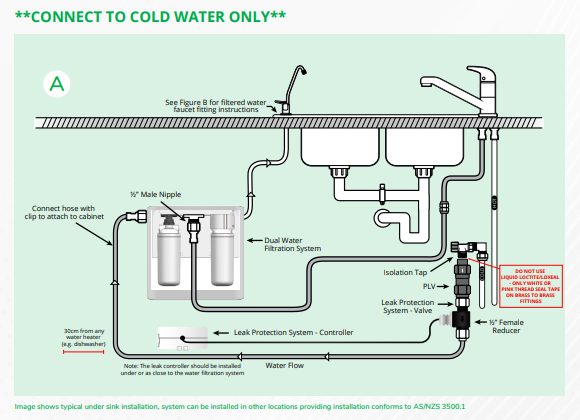

Technical Drawing

Luxe Dual under-sink installation diagram

Download Installation Guide

Installation must be completed by a licensed plumber in accordance with applicable Australian and local plumbing requirements.

Filtration Performance

Filtration stages, contaminant reduction and performance data

Filtration Configuration	Stage 1 — Hollow Fibre ultrafiltration (0.1 micron) Stage 2 — Carbon Block, HTO or HTO+ final-stage cartridge
Filtration Performance	The HTO and HTO+ final-stage cartridges provide broad-spectrum contaminant reduction, with independently tested performance across a wide range of contaminants. Testing includes chlorine, chloramine, heavy metals, cysts, pesticides, herbicides, volatile organic compounds (VOCs), disinfection by-products and other contaminants. Performance varies by contaminant and cartridge configuration. Refer to the HTO & HTO+ Performance Centre for individual contaminant reduction percentages, testing protocols and available performance data.
PFAS	Independent laboratory testing indicates PFAS reduction. Formal NSF testing and certification for PFAS claims are in progress.

Performance Testing: NSF/ANSI 42, 53, 401 and NSF P231 where applicable

Performance Comparison

Reduction	HTO	HTO+
Broad-spectrum contaminent reduction	✓	✓
Chlorine, chloramine & taste/odour	✓	✓
Heavy metals, VOCs & THMs	✓	✓
Herbicides, pesticides & cysts	✓	✓
Arsenic & microcystins HTO+ Only	—	✓
PCBs & PFAS* (PFOA/PFOS) Independent laboratory testing; formal NSF testing/certification in progress	—	✓

Performance varies by cartridge configuration and test conditions. Refer to full performance data for reduction percentages and protocols.

View Full Performance Data

Components & What’s Supplied

Included cartridges, components, fittings and installation hardware

System	Luxe Dual filtration system
Cartridges	Hollow Fibre cartridge + selected final-stage cartridge (Carbon Block, HTO or HTO+)
Fittings & Hardware	Connection fittings and installation hardware
Safety & Protection	Pressure limiting valve, dual check valve and Leak Protection System
Tap / Faucet	Selected drinking water faucet or compatible tap configuration, where included

Final supplied components vary by selected configuration. Installation not included unless specified.

Technical Documents & Certifications

Specifications, installation guides, certifications and technical downloads

Document	Action
Installation Guide	Download
Performance Data	View
Installation & Compliance Guide	Download

Installation of this system must be carried out by a licensed plumber in accordance with the Plumbing Code of Australia (PCA), AS/NZS 3500 (all relevant parts), and any applicable state or local regulations.
