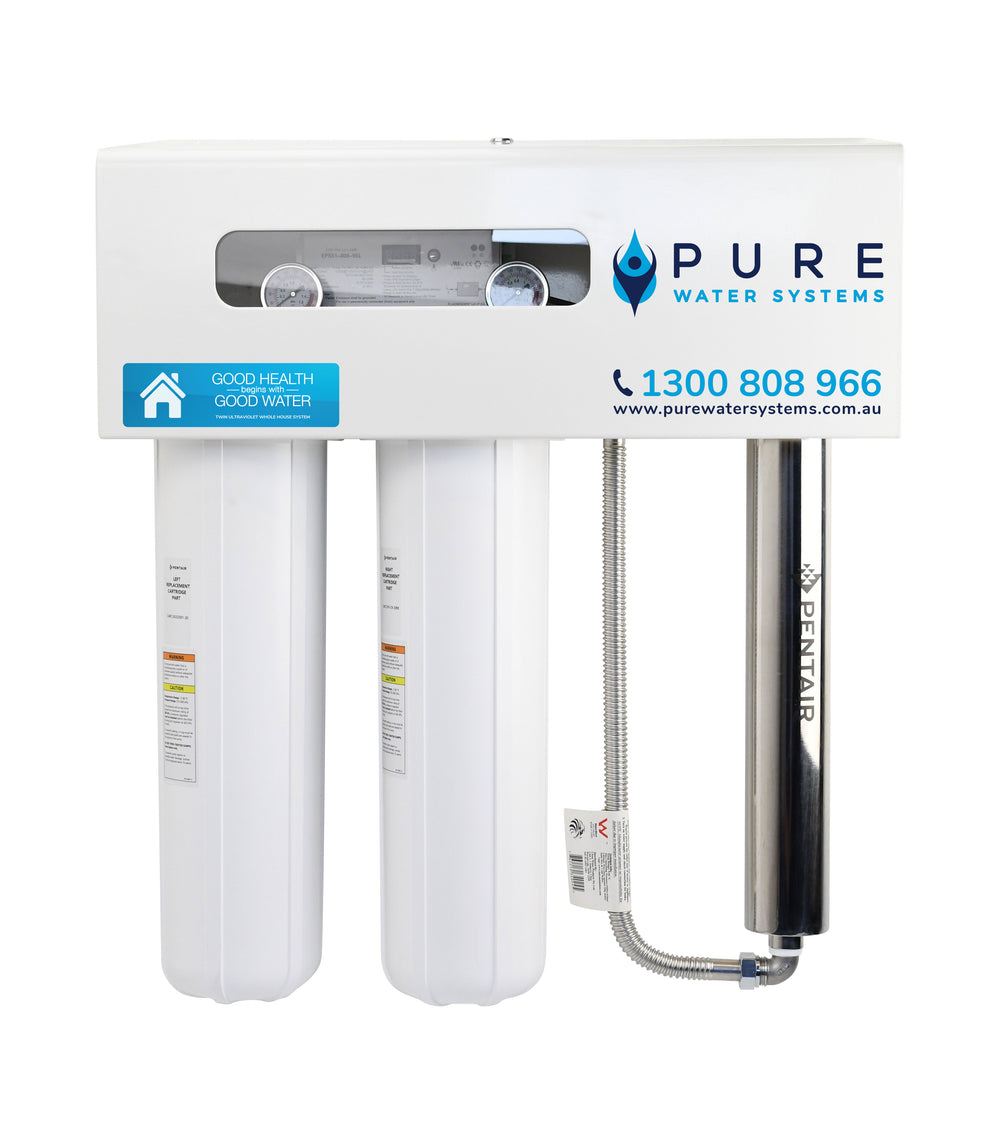

Twin UV Whole House Filtration System

At a Glance

Application

Whole house / point-of-entry water treatment

Water Source

Town or tank water

Filtration

Dual-stage filtration with UV disinfection

Installation

Point-of-entry installation by a licensed plumber

Technical Specifications

Dimensions, flow rates, operating limits and system specifications

System	Twin UV Whole House Filtration System
Dimensions	673 × 218 × 769 mm
Max. Flow	75 L/min
Operating Pressure	210–500 kPa
Operating Temperature	5–38°C
Certification	NSF 42 & 53
Technical Notes	Dual-stage whole house filtration system incorporating ultraviolet treatment. Suitable for town or tank water applications.

Installation & Technical Drawings

Installation requirements, connections, clearances and technical drawings

Installation	Point-of-entry whole house installation
Installer	Installation by a licensed plumber
Connections	Installed on the incoming main water supply before distribution throughout the property.
Service Clearance	Allow sufficient clearance for cartridge replacement, UV lamp servicing and routine maintenance.

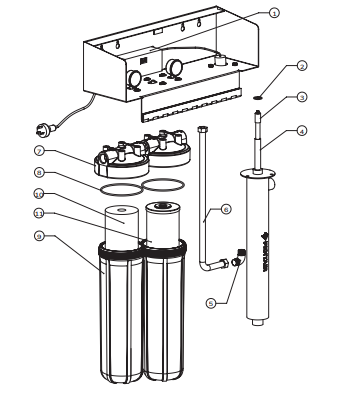

Technical Drawing

Download Installation Guide

Install in a protected location with suitable access for servicing. The UV chamber must remain accessible for lamp replacement and maintenance. For tank water applications, appropriate pre-filtration is required to support effective UV treatment.

Filtration Performance

Filtration stages, contaminant reduction and performance data

Filtration Configuration	Dual-stage filtration + UV disinfection
Filtration Performance	Provides staged reduction of sediment, chlorine, unpleasant taste and odour and selected chemical contaminants, followed by ultraviolet treatment for microbiological control.

Filtration performance depends on the installed cartridge configuration, incoming water quality, flow rate and cartridge condition. UV treatment effectiveness depends on suitable incoming water quality and correct system operation.

Testing Standards: NSF 42 & 53 applicable to filtration components

Performance claims are subject to applicable test conditions, water quality, flow rate, cartridge life and system maintenance. UV treatment requires appropriate pre-filtration and routine lamp and system maintenance.

Components & What’s Supplied

Included cartridges, components, fittings and installation hardware

System	Twin 20" whole house filter housing assembly UV disinfection system UV chamber UV lamp and power supply
Cartridges	Stage 1 – Polyspun Dual Gradient Sediment Cartridge Stage 2 – Carbon Filtration Cartridge
Fittings & Hardware	Whole house mounting and connection hardware supplied as applicable to the selected system configuration.
Safety & Protection	UV system electrical and protective components as supplied with the system.

Professional installation by a licensed plumber is required. Installation materials and fittings required to connect the system to the property's existing plumbing may vary by installation and may not be included.

Technical Documents & Certifications

Specifications, installation guides, certifications and technical downloads

Document	Action
Installation Guide	Download
Installation & Compliance Guide	Download

Installation of this system must be carried out by a licensed plumber in accordance with the Plumbing Code of Australia (PCA), AS/NZS 3500 (all relevant parts), and any applicable state or local regulations.
