Pure Water Systems Water Softener

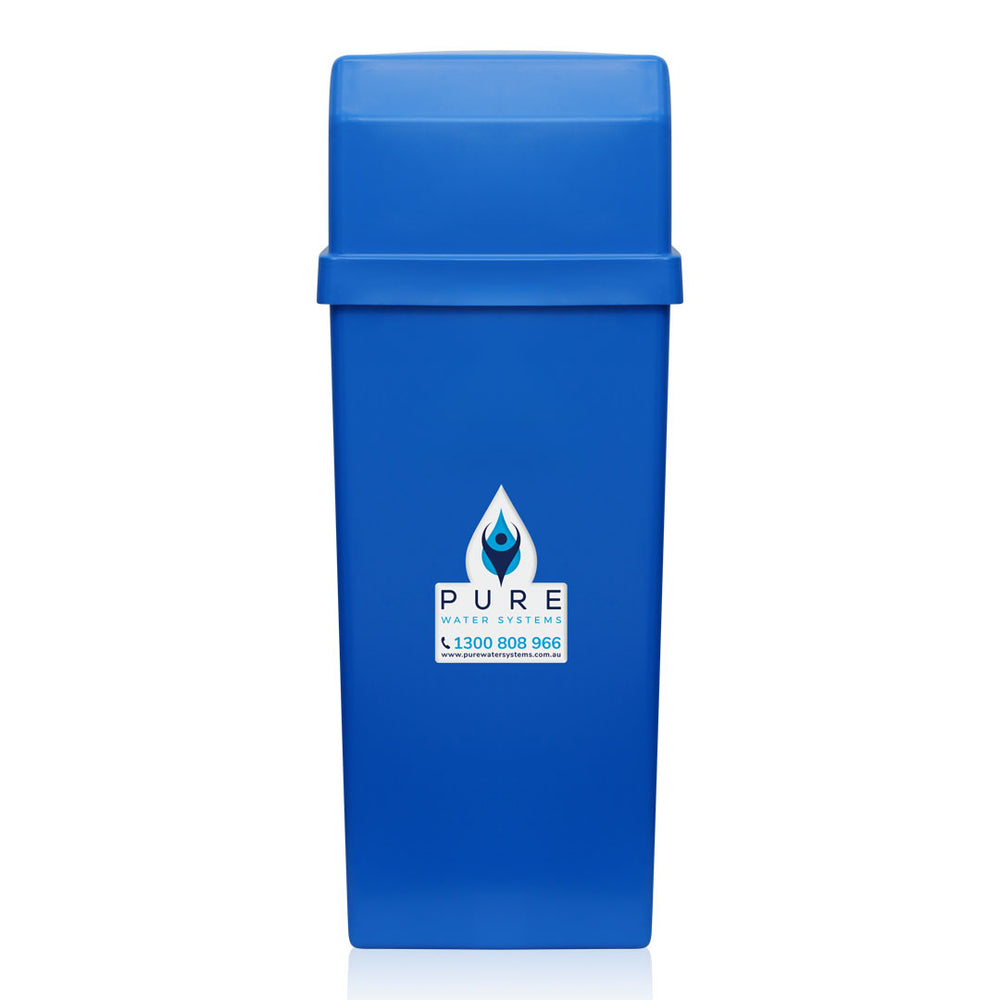

Tall blue rectangular water softener tank

At a Glance

Application

Whole house / point-of-entry water treatment

Water Source

Town water

Filtration

Ion exchange water softening

Installation

Point-of-entry installation

Technical Specifications

Dimensions, flow rates, operating limits and system specifications

System	Pure Water Systems Water Softener
Operating Pressure	Maximum 600 kPa
Certification	Installation in accordance with AS/NZS 3500.1 and WMTS-103
Technical Notes	Whole-house ion exchange water softener using pre-regenerated softening resin and salt regeneration. Available in automatic and semi-automatic configurations. Automatic models use volumetric control to monitor water usage and initiate regeneration when the preset capacity is reached, and require a 240 V GPO with waterproof 24 V step-down transformer. Semi-automatic models do not require power

Installation & Technical Drawings

Installation requirements, connections, clearances and technical drawings

Installation	Whole house / point-of-entry installation
Installer	Installation by a licensed plumber in accordance with AS/NZS 3500.1.
Connections	Connect to the main water supply to the property. A pressure limiting valve must be installed upstream of the appliance. Install backflow prevention where required. Regeneration discharge must connect to a sewer or suitable deep drain, not stormwater.

Download Installation Guide

Install the softener after any water pressure pump and after any sediment pre-filtration. The regeneration drain line must discharge with an air gap and must not be directly extended. The overflow drain must be connected separately and must not be joined to the regeneration discharge line.

Filtration Performance

Filtration stages, contaminant reduction and performance data

Filtration Configuration	Ion exchange water softening
Filtration Performance	Ion exchange treatment reduces water hardness by exchanging hardness minerals through the softening resin. Salt is used during regeneration to recharge the resin and remove accumulated hard-water salts.

Treatment capacity depends on the volume of water being treated and the hardness of the incoming water. Automatic models monitor water usage and regenerate when the preset capacity is reached. Semi-automatic models require regeneration intervals to be determined according to water usage and hardness.

Softener capacity and regeneration frequency vary according to incoming water hardness and water usage.

Components & What’s Supplied

Included cartridges, components, fittings and installation hardware

System	Pressure vessel / media tank Softener control valve Drop tube with bottom screen Brine tank with lid Brine valve and salt platform Ion exchange resin Gravel
Fittings & Hardware	Tubing and components required to connect the brine system to the softener control valve
Safety & Protection	Pressure limiting valve supplied. Domestic models incorporate a precautionary overflow outlet.

Ion exchange resin and gravel are supplied separately for loading into the media vessel. Softening resin is supplied pre-regenerated. Salt is required for operation and regeneration.

Technical Documents & Certifications

Specifications, installation guides, certifications and technical downloads

Document	Action
Installation Guide	Download
Installation & Compliance Guide	Download

Installation of this system must be carried out by a licensed plumber in accordance with the Plumbing Code of Australia (PCA), AS/NZS 3500 (all relevant parts), and any applicable state or local regulations.
