Triple Whole House Town Water Filtration System

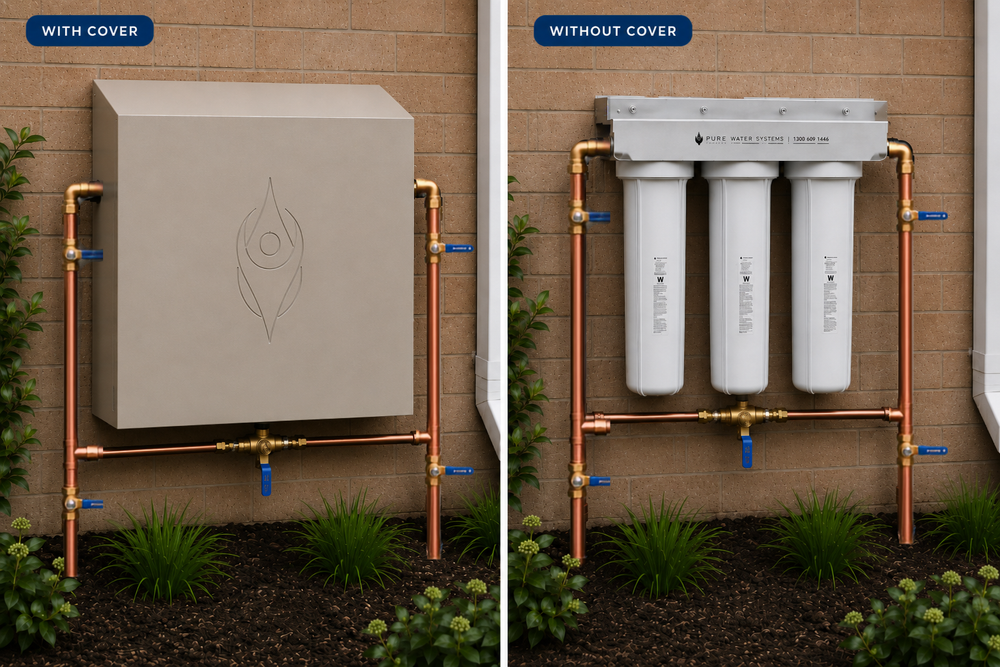

Whole House Triple Town Filtration System

At a Glance

Application

Whole house / point-of-entry water filtration

Water Source

Town water

Filtration

Three-stage sediment, carbon and PFAS filtration

Installation

Point-of-entry installation by a licensed plumber

Technical Specifications

Dimensions, flow rates, operating limits and system specifications

System	Triple Whole House Town Water Filtration System
Max. Flow	15.1 L/min (4 gpm)
Operating Pressure	207–620 kPa (30–90 psi)
Operating Temperature	4.4–37.8°C
Certification	NSF/ANSI 42 and NSF/ANSI 53 certifications apply to specified individual filtration components and claims.
Technical Notes	Triple-stage point-of-entry filtration system configured for town water. Uses dual-gradient sediment pre-filtration followed by granular activated carbon and FloPlus PFAS Protect filtration.

Installation & Technical Drawings

Installation requirements, connections, clearances and technical drawings

Installation	External point-of-entry installation to the home's cold water supply.
Installer	Licensed plumber required. Installation must conform to AS/NZS 3500.1 and all applicable local plumbing codes.
Connections	1" connections. Connect to cold water only. Cold water only. Town water configuration uses a 20 mm inlet. Install before any internal cold water branch points. Dual check valve and 500 kPa pressure limiting valve are supplied. Upstream and downstream isolation valves are required, and installation of a bypass is strongly recommended.
Service Clearance	Allow sufficient access for cartridge replacement and servicing. Minimum 50 mm gap shown in the PWS installation configuration.

Technical Drawing

Triple Whole House point-of-entry town water installation with optional bypass

Download Installation Guide

Install externally at the point of entry so filtered water is supplied to the home. The system must be installed in accordance with AS/NZS 3500.1 and applicable local plumbing requirements. A bypass configuration is recommended. Connect to cold water only.

Filtration Performance

Filtration stages, contaminant reduction and performance data

Filtration Configuration	Stage 1 – DGD gradient-density sediment filtration Stage 2 – RFC20-BB radial-flow granular activated carbon filtration Stage 3 – FloPlus Protect 20BB PFAS filtration
Filtration Performance	Three-stage point-of-entry filtration combining high-capacity sediment filtration, radial-flow granular activated carbon filtration and a dedicated PFAS reduction stage. Stage 1 provides gradient-density sediment filtration to reduce particulate matter such as dirt, rust and sediment. Stage 2 uses radial-flow granular activated carbon (GAC) for chlorine taste and odour reduction while supporting high-flow point-of-entry applications. Stage 3 uses Pentair FloPlus Protect 20BB Fibredyne™ carbon block technology for certified reduction of specified PFAS compounds.
PFAS	The FloPlus Protect 20BB final filtration stage is certified for reduction of PFOA, PFOS, PFHxS, PFNA and PFHpA. Pentair states reduction of these five PFAS compounds up to 99.82%. Refer to the applicable Pentair Performance Data Sheet for individual contaminant reduction claims and test conditions.

Performance and cartridge life vary according to incoming water quality, water usage, flow rate and cartridge condition. Individual contaminant reduction claims apply to the relevant filtration cartridge and specified test conditions.

Performance Testing: Individual filtration stages have manufacturer performance data and applicable third-party certification. System-level recommended operating parameters reflect the most restrictive applicable component specifications.

Performance may vary depending on incoming water quality, flow rate, usage and cartridge condition. Refer to applicable cartridge performance data for specific contaminant reduction claims and test conditions.

Components & What’s Supplied

Included cartridges, components, fittings and installation hardware

System	Triple system mounting bracket 3 × whole house filter housings Housing spanner 12 × coach screws and washers
Cartridges	Stage 1 – DGD gradient-density sediment cartridge Stage 2 – RFC20-BB radial-flow GAC cartridge Stage 3 – FloPlus Protect 20BB PFAS cartridge
Fittings & Hardware	3 × heavy-duty 20" filtration housings Pressure limiting valve (PLV) Dual check valve System mounting hardware and associated supplied fittings
Safety & Protection	500 kPa pressure limiting valve and dual check valve supplied.

Cartridges are supplied pre-installed. Isolation valves, tee pieces and bypass components shown in the installation diagram are not supplied. Installation of a bypass is strongly recommended.

Technical Documents & Certifications

Specifications, installation guides, certifications and technical downloads

Document	Action
Installation Guide	Download
Installation & Compliance Guide	Download

Installation of this system must be carried out by a licensed plumber in accordance with the Plumbing Code of Australia (PCA), AS/NZS 3500 (all relevant parts), and any applicable state or local regulations.
