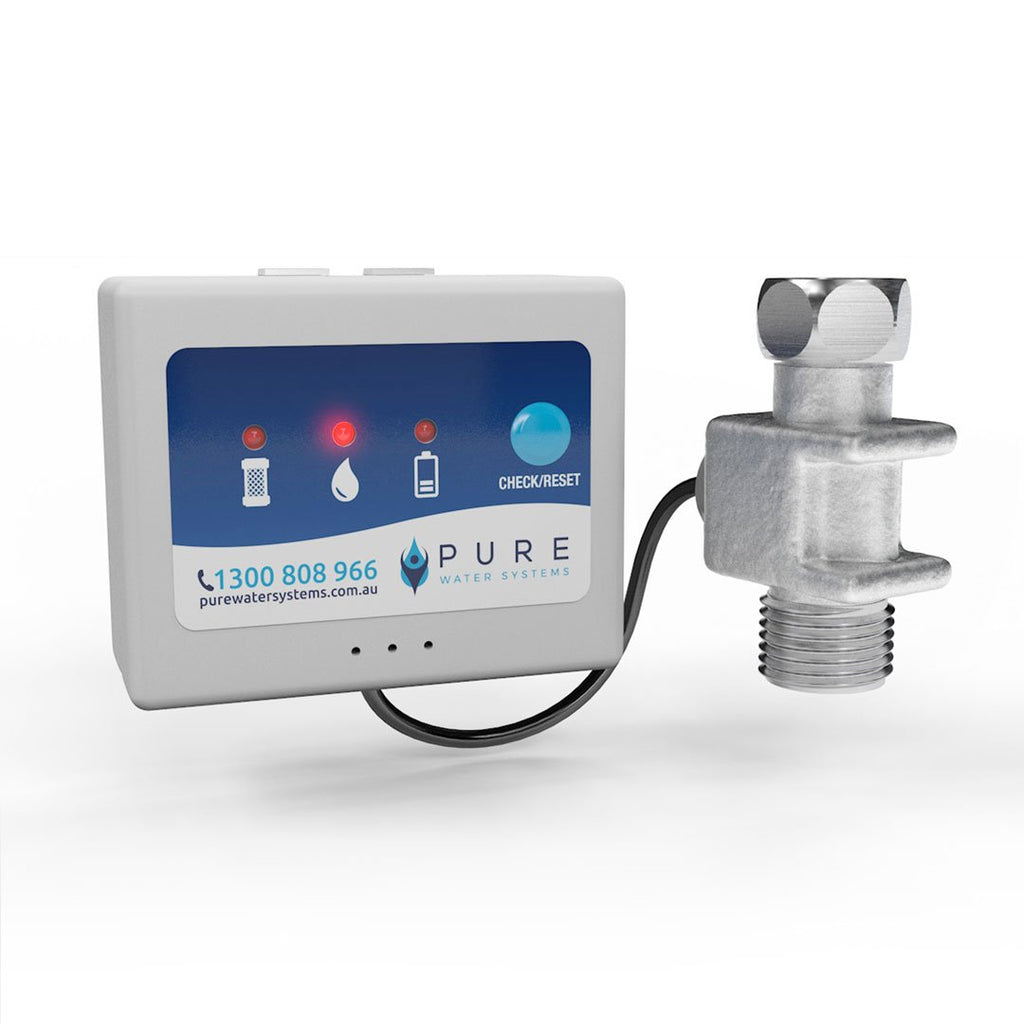

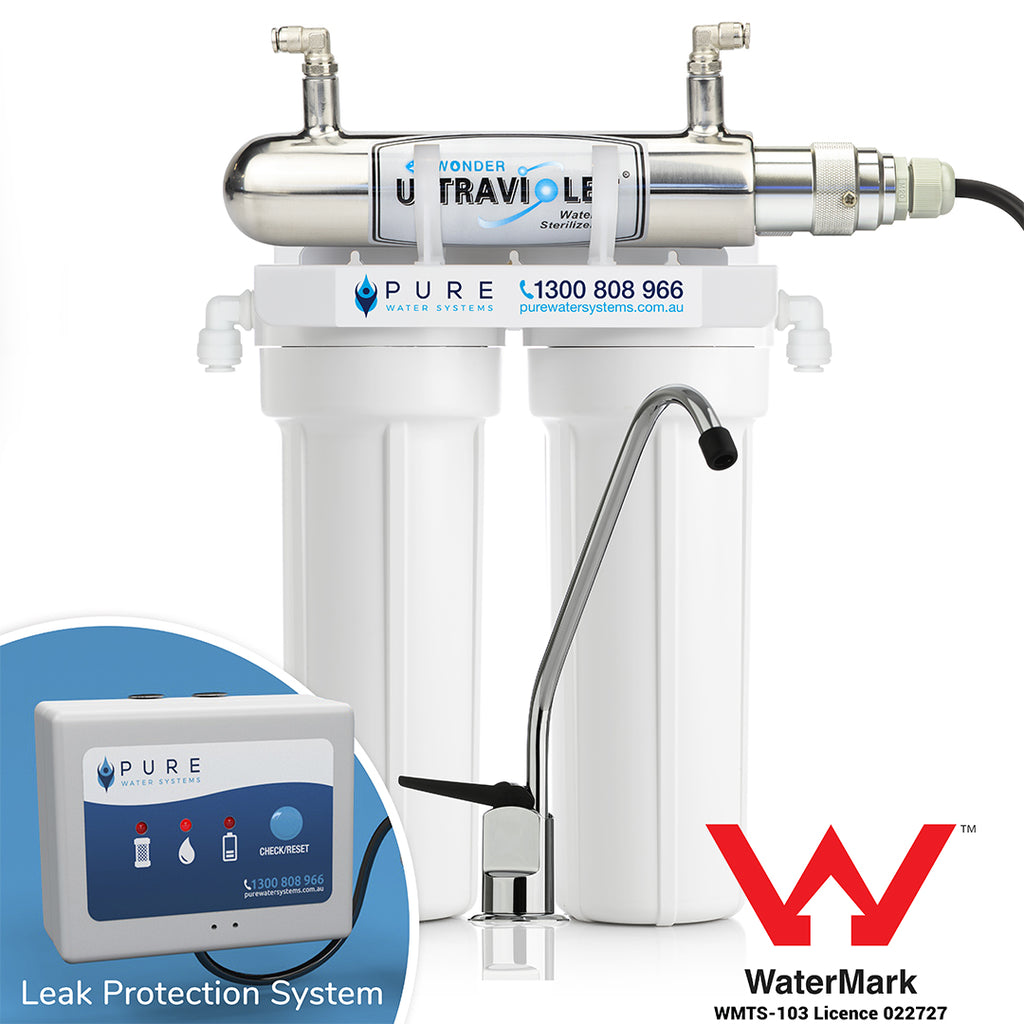

The Under Sink Ultraviolet System is an efficient, low cost and environmentally friendly system, offering high quality, filtered water for your home or business. Combined with the Pure Water Systems Leak Protection System, this technologically advanced process provides high-quality water filtration, sterilisation and a superior defence against water damage in the event of a leak.
There are no known micro-organisms that are immune to Ultraviolet light, providing 99.99% bacteria and parasite elimination. The Under Sink Ultraviolet System utilises a combination of ultraviolet sterilisation and submicron carbon filtration causing a chemical reduction. The end result is great tasting, filtered water, provided by one of the best technologies in water filtration today.
This system is highly recommended for tank water supplies and is designed to be installed neatly underneath your sink, inline to a chilled application or solely for filtered water. An option is also available for town water sources. (Please contact our Product Solutions Team on 1300 808 966 to order a system suitable for town water.)

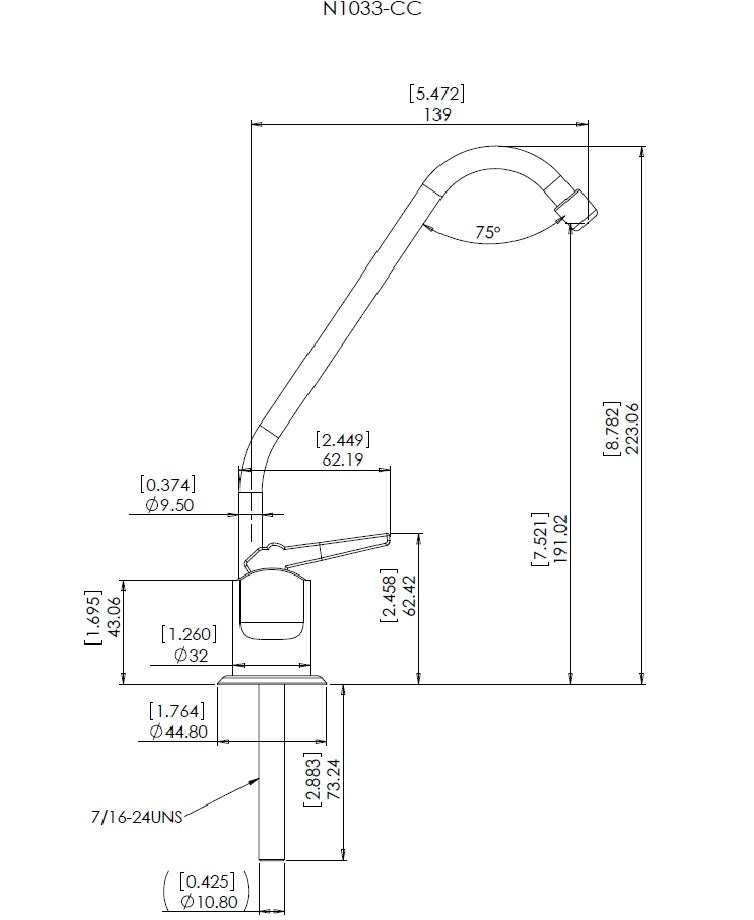

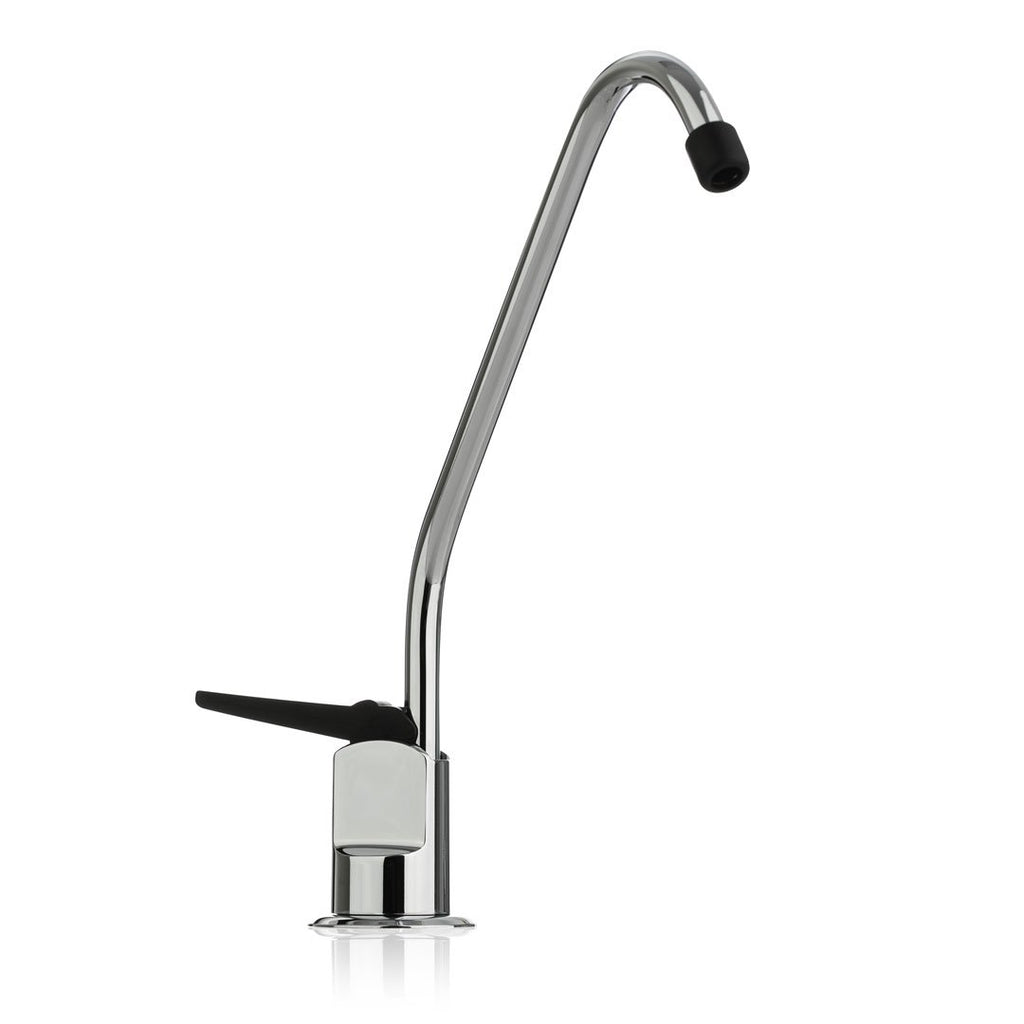

This Ultraviolet System includes your first pre-filter and submicron cartridge, high-quality housing, parts and fittings. It is supplied with the classic Slimline Faucet, ensuring fresh, healthy filtered water at the turn of a tap.
Stylish premium faucets and 3 Way Mixer Taps are also available as upgrade options, to suit your unique style for an aesthetic addition to your kitchen.
|Dimensions (L x D)||278mm x 58mm*|
|Flow Rate||3.8 Litres / Minute**|
|Min / Max Temperature||0°C - 40°C|
|Max Pressure||100psi (690kPa)|
|Watermark Certification||103:2016 Certificate No.: 23384|
|Lamp Capacity||12 Months|
|Chamber Material||Stainless Steel|
*Diameter: 84mm with Inlet / outlet (168mm between inlet and outlet ports)
**Flow rate and UV Dosage is based on > 30mJ/cm2 @ 85% UVT
TANK WATER PRE-FILTER SPECIFICATIONS
|Flow Rate||38 Litres / Minute|
|Min / Max Temperature||4.4 – 51.7°C|
|Cartridge Dimensions||248mm x 67mm|
|Micron Rating||5 Micron|
|Material||Food Grade Polypropylene, Non-woven Polyester (reusable)|
TANK WATER CARTRIDGE SPECIFICATIONS
|Flow Rate||1.9 Litres / Minute|
|Min/Max Pressure||10 - 125 PSI*|
|Min/Max Temperature||5°C - 30°C|
|Product Dimensions (L x D)||248mm x 67mm|
|Material||Ceramic outer shell, Carbon block, Ion exchange resin|
*Manufacturer has advised that a minimum 25psi is recommended.
|Operating Voltage||9V DC|
|Supply Current Typical||1.0 mA, Maximum 15.0 mA|
|Cable Length||1.5m for Solenoid Valve Cord|
|Connecting||1/2” BSP Male|
|Maximum Pressure||112 PSI|
|Body Material||Chrome Plated Brass|
|Solenoid Valve||Chrome Plated Brass|
|Max Pressure||125 psi|

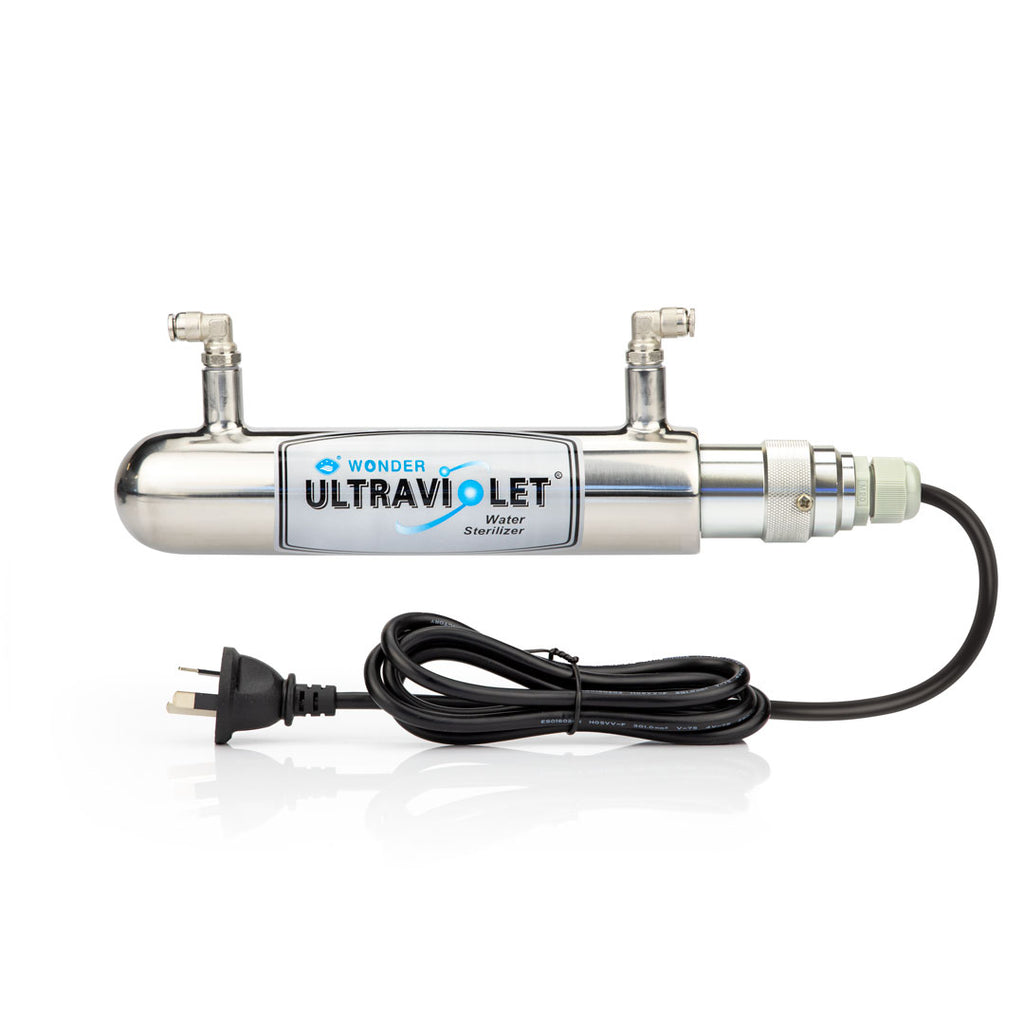

|Ultraviolet with Lamp|
|Twin Filter Housing with Mounting Bracket|
|Washable Tank Water Pre-Filter (R5)|
|Submicron Tank Water Cartridge (CER1)|
|Australian approved standard cold water connection kit including:
