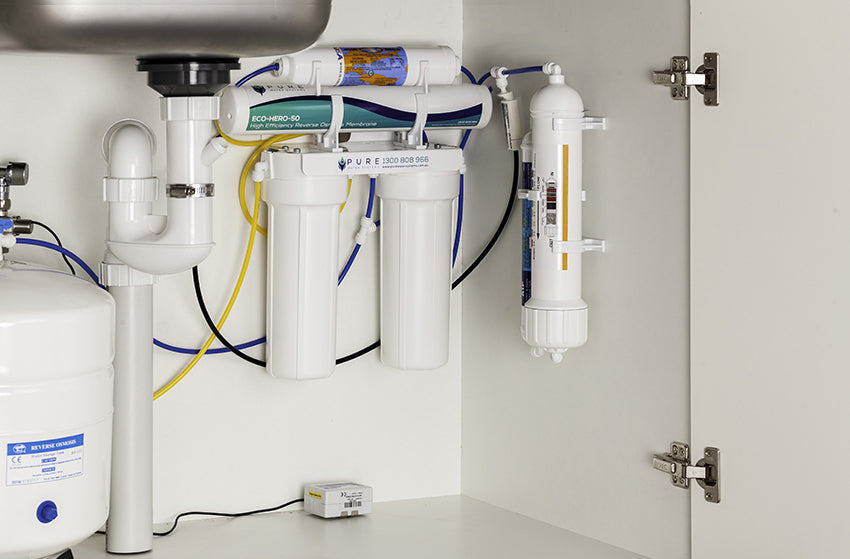

Product Description
The Pure Water Systems Reverse Osmosis System provides the convenience of having the highest quality drinking water in your own home.
The process of reverse osmosis is designed to remove almost all contaminants that may be of concern, including total dissolved solids (TDS), from your tap water. This can include organic and inorganic compounds such as salts, Nitrates, Fluoride, Calcium, Magnesium, Cadmium and Phosphates, along with metals, bacteria, viruses, inorganic chemicals and algae.
The Pure Water Systems purification system incorporates a precision machined, full metal construction pressure limiting valve and dual check valve, providing protection from pressure spikes, preventing backflow, and resisting water hammer. Whilst this is a requirement under Australian Standards, we have chosen this valve as it is ultra-reliable and performs to the highest standard, giving you peace of mind that your system is protected.
Top of the range in contaminant reduction
- Copper 98.5%
- Fluoride 93.6%
- Arsenic 88.0%
- Barium 96.3%
- Selenium 97.9%
- Total Dissolved Solids Reduction 90.8%
- Cadmium 99.1%
- Lead 98.6%
- Chromium Cr 6 96.4%
- Turbidity 99.1%
- Chlorine 95%
The best in water purification
While reverse osmosis is excellent for removing contaminants (such as heavy metals like cadmium, arsenic and chromium), healthy minerals and salts can also be removed leaving your water acidic. As part of this 4 Stage Reverse Osmosis System, the Remineraliser cartridge actually adds healthy minerals back into your water after the intense purification process.
Why do I need a remineraliser?
The EcoHero Remineraliser is made up of a patented mineral crystal that remineralisers the acidic water after the intense reverse osmosis process. The mineral crystal inside this cartridge produces alkaline-rich mineral water containing essential minerals such as calcium, magnesium, potassium, and sodium which are vital for overall health and wellbeing. The Remineraliser also raises the pH balance of the water to a level that is considered alkaline. Installed inline to the reverse osmosis system, the purified water is remineralised at the last stage in the purification process.
What is Oxidation Reduction Potential (ORP)?
The Remineraliser cartridge may also assist with reducing Oxidation Reduction Potential (ORP), which can help to fight free radicals within the water. Active oxygens or free radicals are unstable molecules that our bodies produce when we breathe and our bodies utilise oxygen, a small percentage of this oxygen forms active oxygens or free radicals. Hydrogen rich water can protect the body from oxidative stress and promote overall health and wellbeing.
Up to 300% improved wastewater efficiency
Our EcoHero-50 membrane is our exclusive reverse osmosis membrane, offering superior technology and purification performance. Older style membranes can waste up to 75% of your water consumption while the water is being processed. Our EcoHero-50 will reduce your wastewater by up to 300%.
Easy to maintain and economical
Generally, our Reverse Osmosis systems only require cartridge replacement every 12 months, costing roughly only 3-5 cents per litre.
PEACE OF MIND

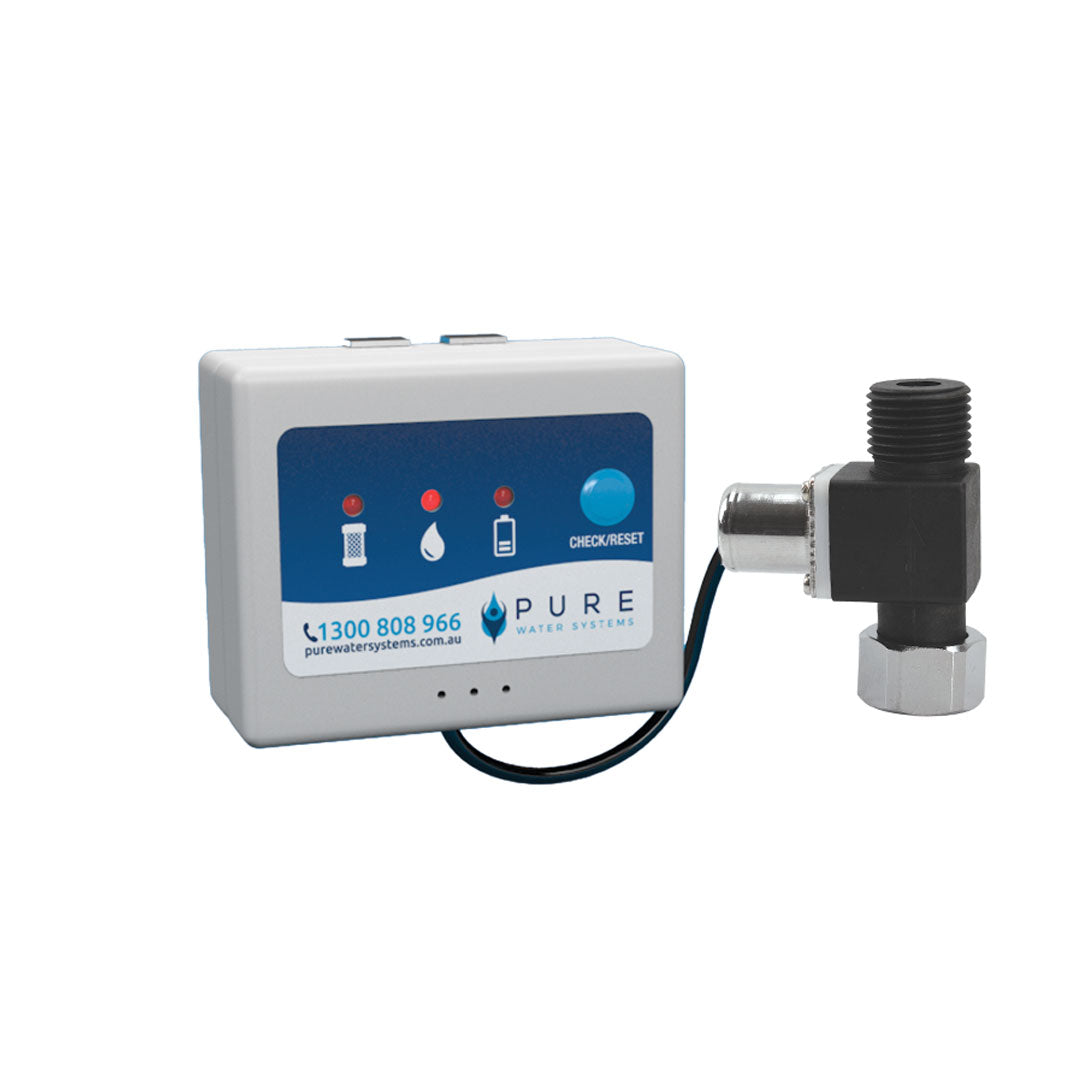

This system includes a Leak Protection System which is your best defence against water damage in the unlikely event of a leak from appliances.
Designed to detect moisture using metal contacts on the control box, it sounds an alarm and isolates the water supply to the water filtration system if a leak is detected, giving you peace of mind that your home and your water filtration system are protected from potential water damage.
This unit also has an inbuilt cartridge life monitor that indicates when the filter cartridge is due to be changed.
For more information on how it works please click here.
When you shop with Pure Water Systems you'll have peace of mind
Also available in 4 Stage Reverse Osmosis Portable with Remineraliser option.
For installation, servicing and maintenance guidelines in your local area, please check with your local water authority or state plumbing regulations as they vary between states and territories.
Specifications

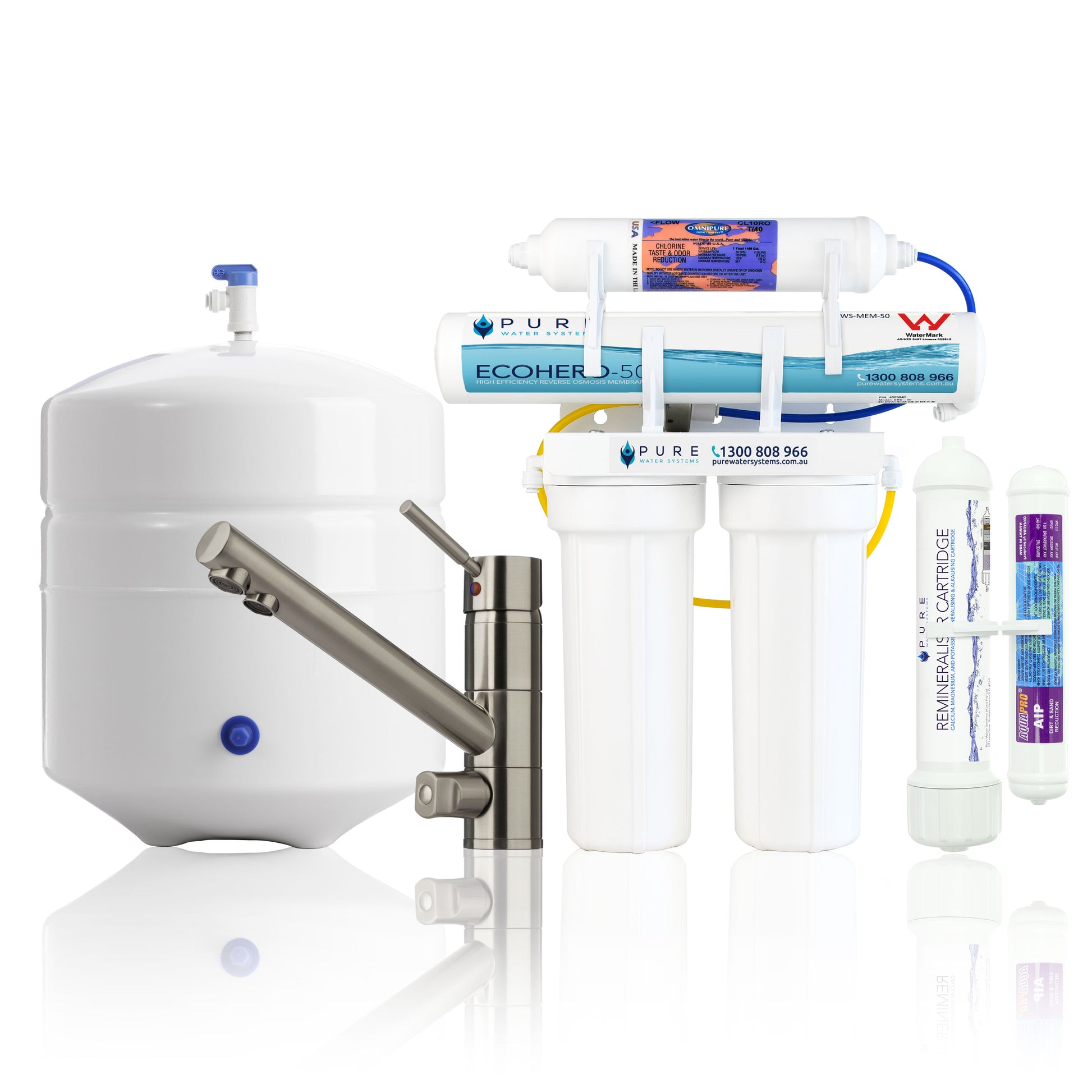

ECOHERO 4 STAGE REVERSE OSMOSIS
| System Dimensions (H x L x D) | 450mm x 385mm x 130mm |
| Remineraliser | H=355.6mm x D=75mm |
| Tank Dimensions (H x D) | 360mm x 280mm |
| Micron Rating | 0.0001 |
| Flow Rate | 190 Litres / Day (50 GPD) |
| Min / Max Pressure | 415 - 700 KPa (60 - 100 psi) |
| Min / Max Temperature | 5 - 49°C |
| Waste Water Summary (Max Efficiency) | 1 Part Purified : 1 Part Waste* |
| Watermark Certification | Lead Free - AS 3497, Licence no. 040326 |
* EcoHero membrane test results provide a 50% recovery rate. Recovery rates will vary depending on inlet / holding tank pressure, water quality and the condition of the filters.
*WaterMark Certification refers to the system, please refer to individual faucet and 3 way mixer taps for certification details.
WATERMARK OFFICIAL NSF CERTIFIED CONTAMINANTS REDUCTIONS
| Arsenic | 88% |
| Hexavalent Chromium | 96.4% |
| Trivalent Chromium | 98.2% |
| Barium | 96.3% |
| Selenium | 97.9% |
| Copper | 98.5% |
| Fluoride | 93.6% |
| Turbidity | 99.1% |
| Cadmium | 99.1% |
| Lead | 98.6% |
| TDS | 90.8% |
TOTAL TDS REDUCTIONS PPM*
| Inlet TDS Reading | Post RO Membrane Reading |
| 96 PPM | 3 PPM |
* Based on In house testing conducted 29/10/2018, results may vary dependant on water quality.
FILTER CARTRIDGES
| Position | Cartridge |
|---|---|
| Sediment Pre Filter | 1 Micron Polypropylene Spun Pre Filter (PWS-P1) |
| Carbon Pre Filter | 10 Micron Carbon Block (PWS-5+) |
| Carbon Post Filter | 5 Micron Encapsulated Granular Carbon Filter (GS10JJ) |
| Membrane Filter | EcoHero 50 Membrane (PWS-MEM-50) |
| Remineraliser | Remineraliser Cartridge (POU-REMIN-01) |
CERTIFICATIONS
| EcoHero 4 Stage Reverse Osmosis System | AS/NZS 3497 |
| Filter Housing | NSF Standard 42 |
| EcoHero 50 Membrane | NSF/ANSI Standard 58 |
| Tube | NSF Standard 51, NSF Standard 61 |
| John Guest Fittings | NSF Standard 51, NSF Standard 61 |
| Tank | NSF Standard 58 |
MATERIALS
| Housing | Food Grade Polypropylene |
| EcoHero 50 Membrane | Aromatic Polyamide, Thin layer Composite Membrane |
| Holding Tank | Stainless Steel, High-grade Chlorobutyl Diaphragm, Virgin Polypropylene Liner |
| Remineraliser | Polypropylene Housing, |
FAUCET SPECIFICATIONS

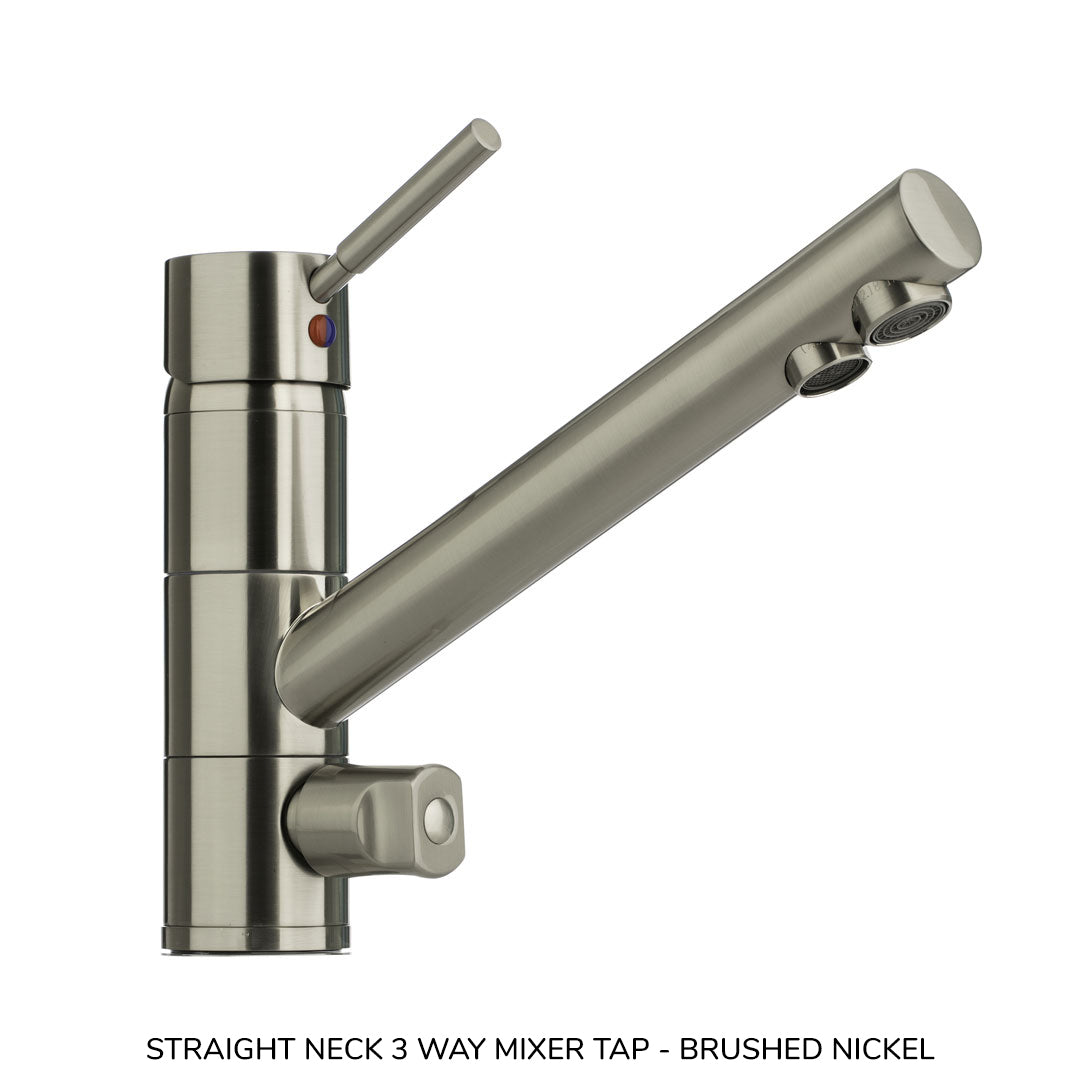

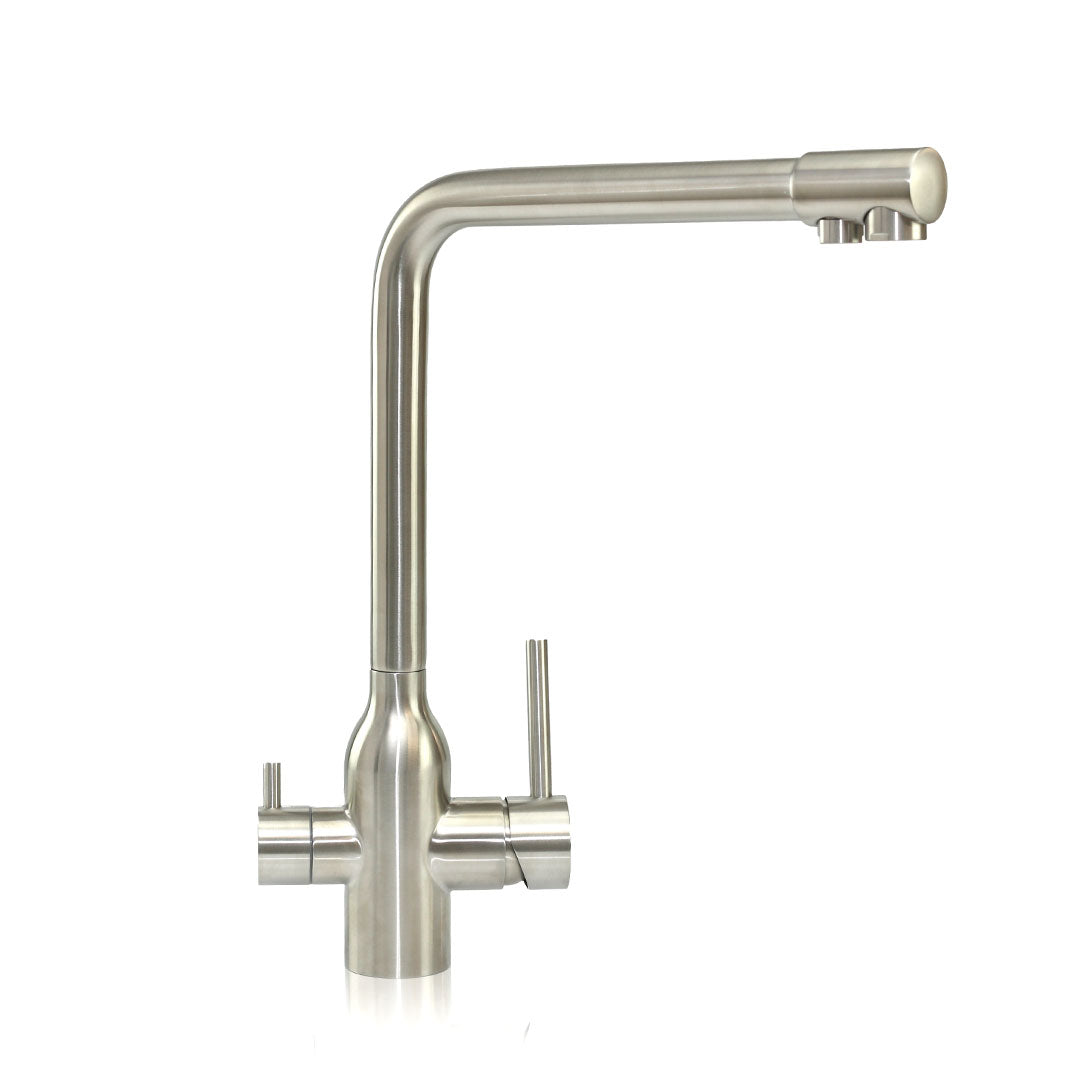

| Straight Neck 3 Way Mixer Tap - Brushed Chrome | Click here |

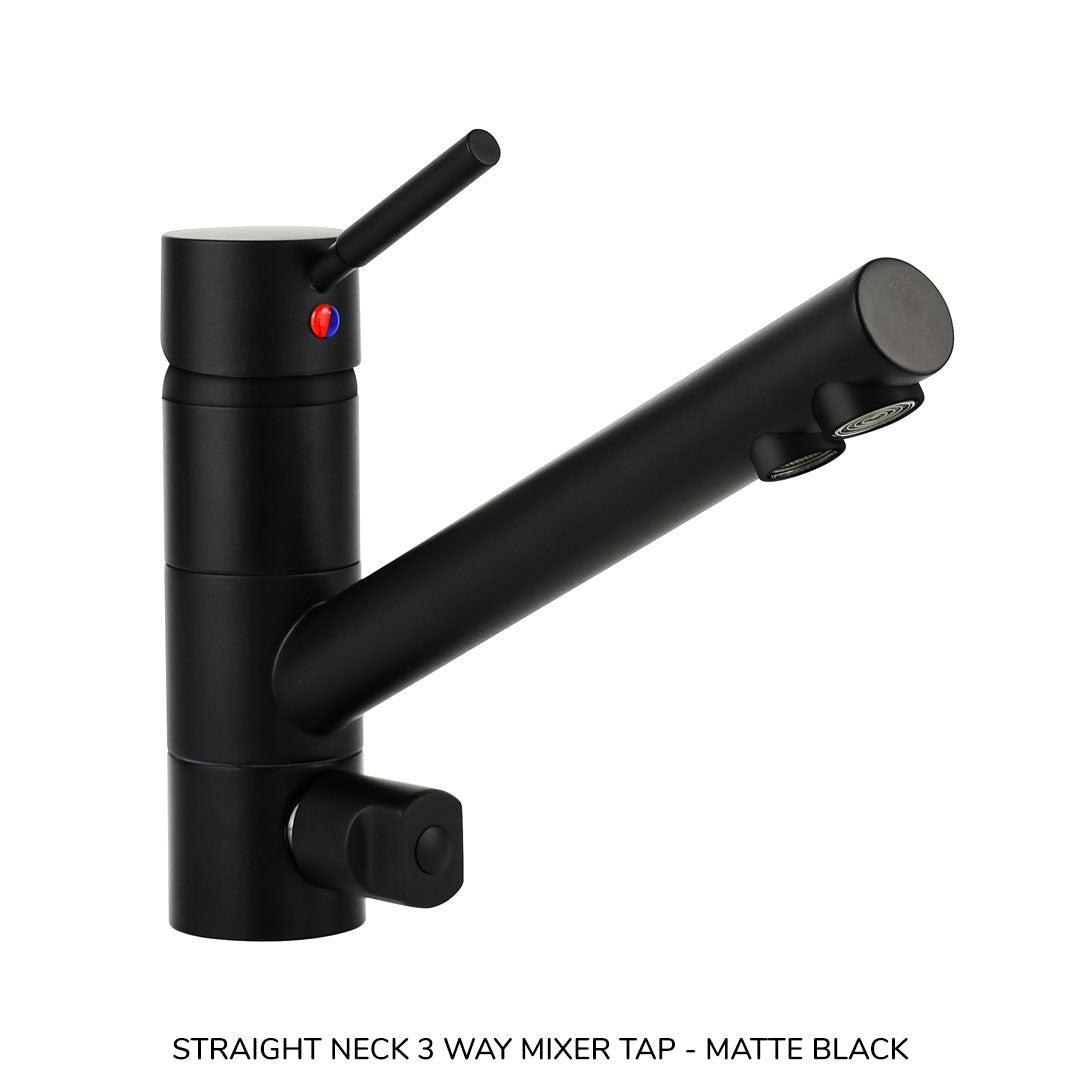

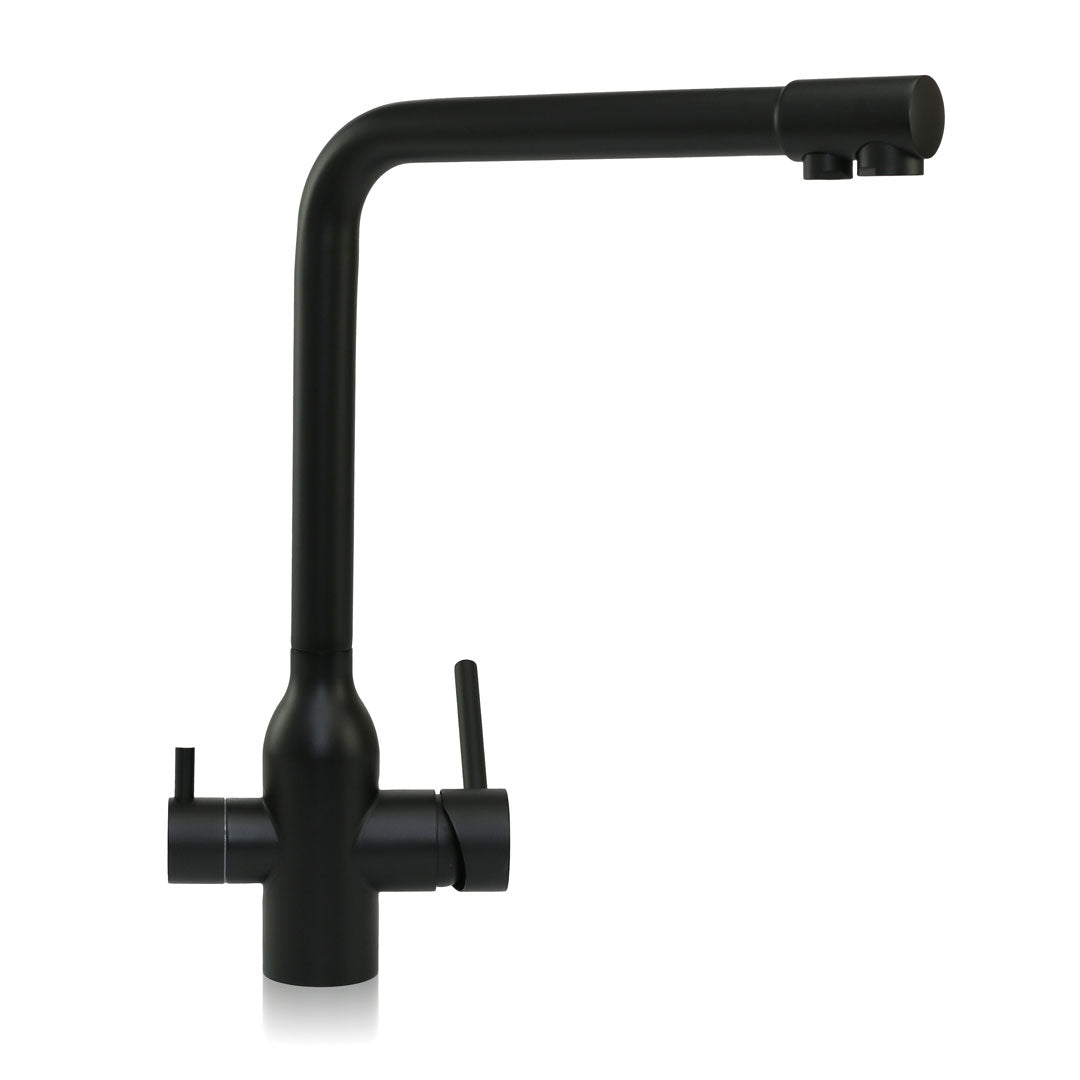

| Straight Neck 3 Way Mixer Tap - Matte Black | Click here |

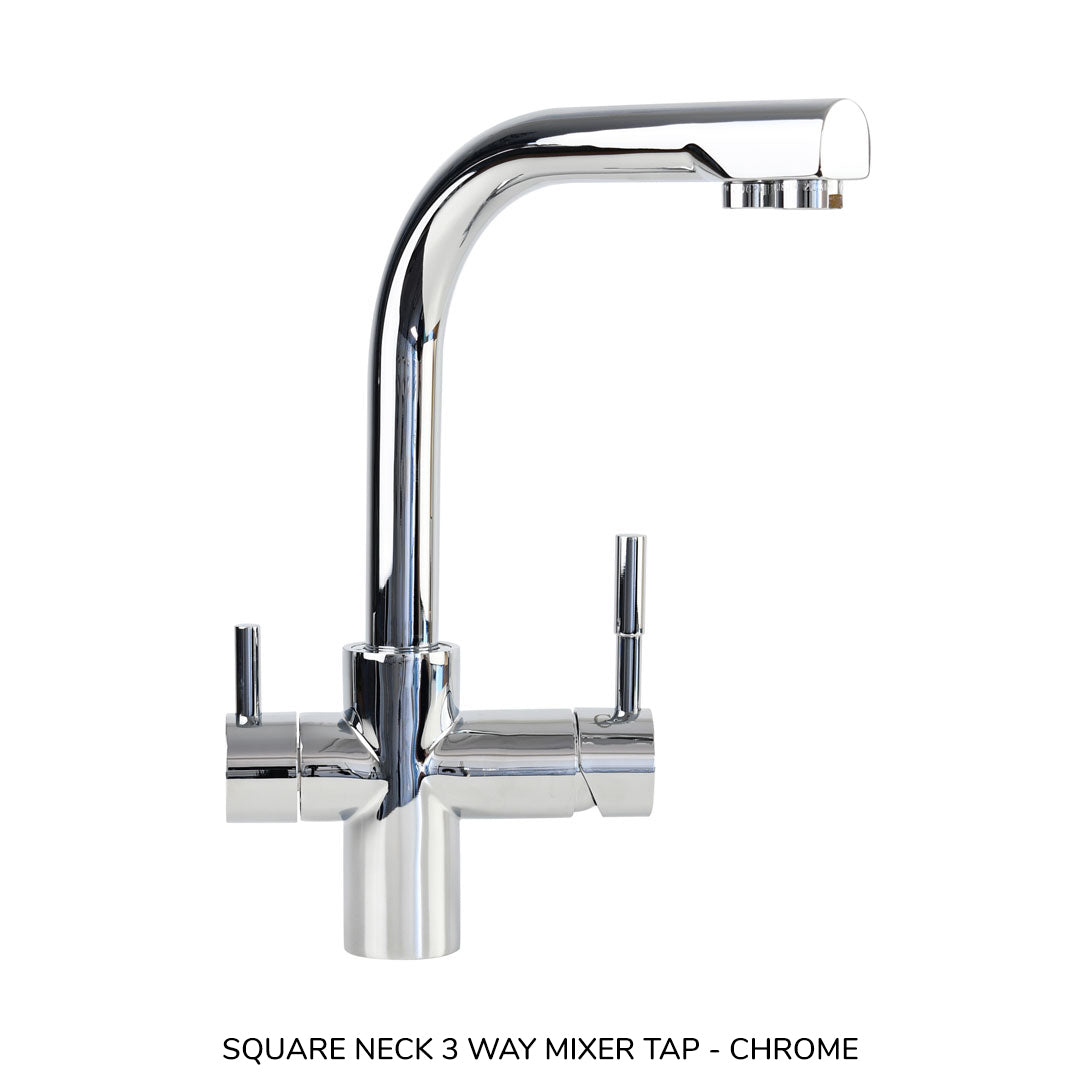

| Square Neck 3 Way Mixer Tap - Chrome | Click here |

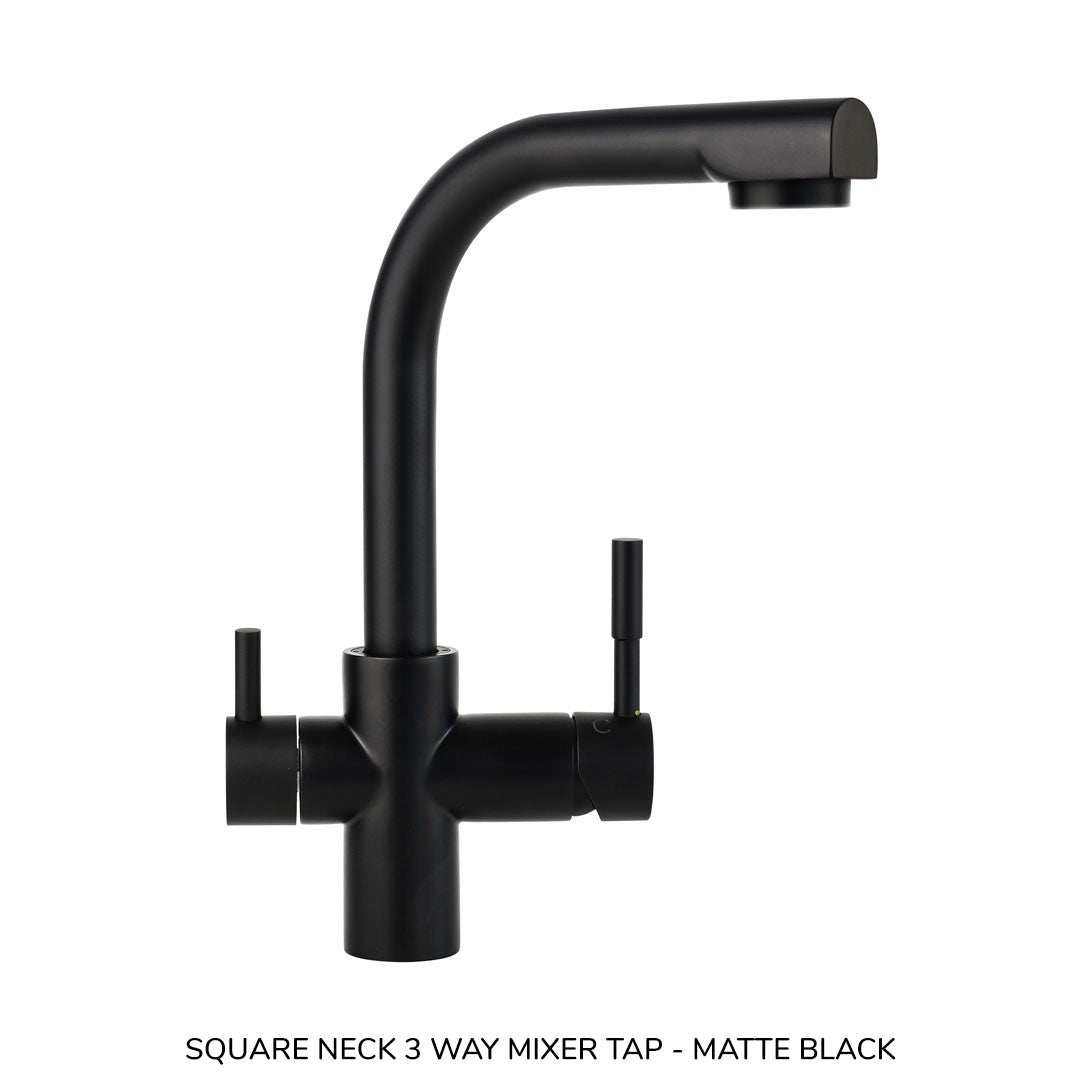

| Square Neck 3 Way Mixer Tap - Matte Black | Click here |

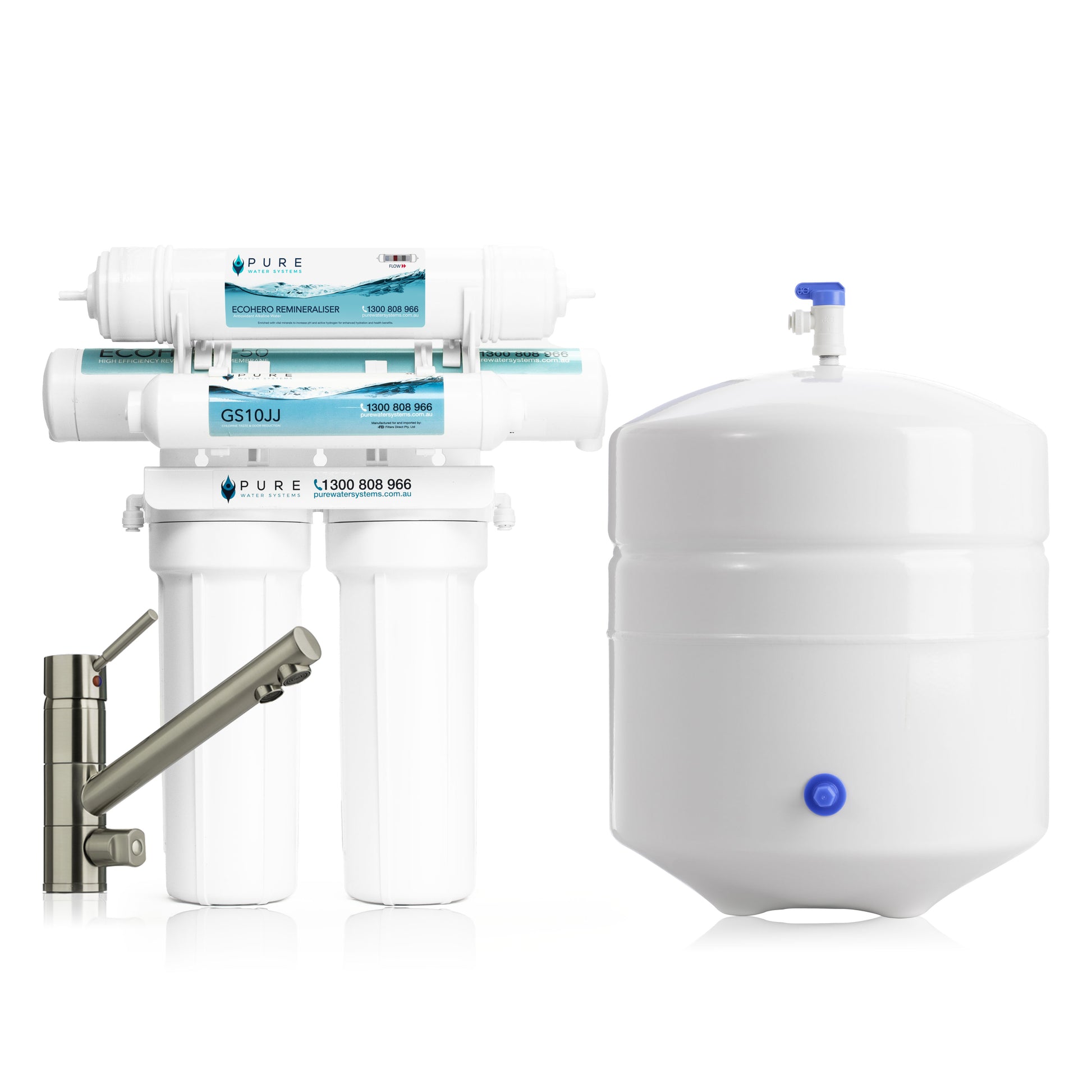

SUPPLIED WITH
| EcoHero 4 Stage Water Filter System with mounting bracket | |||||
| Filter Cartridges | |||||
| Remineraliser Cartridge (with Pressure Relief Valve) | |||||
| 12 Litre capacity Holding Tank | |||||
| Premium Mixer Tap | |||||
Australian approved standard cold water connection kit including:
|
