Product Description

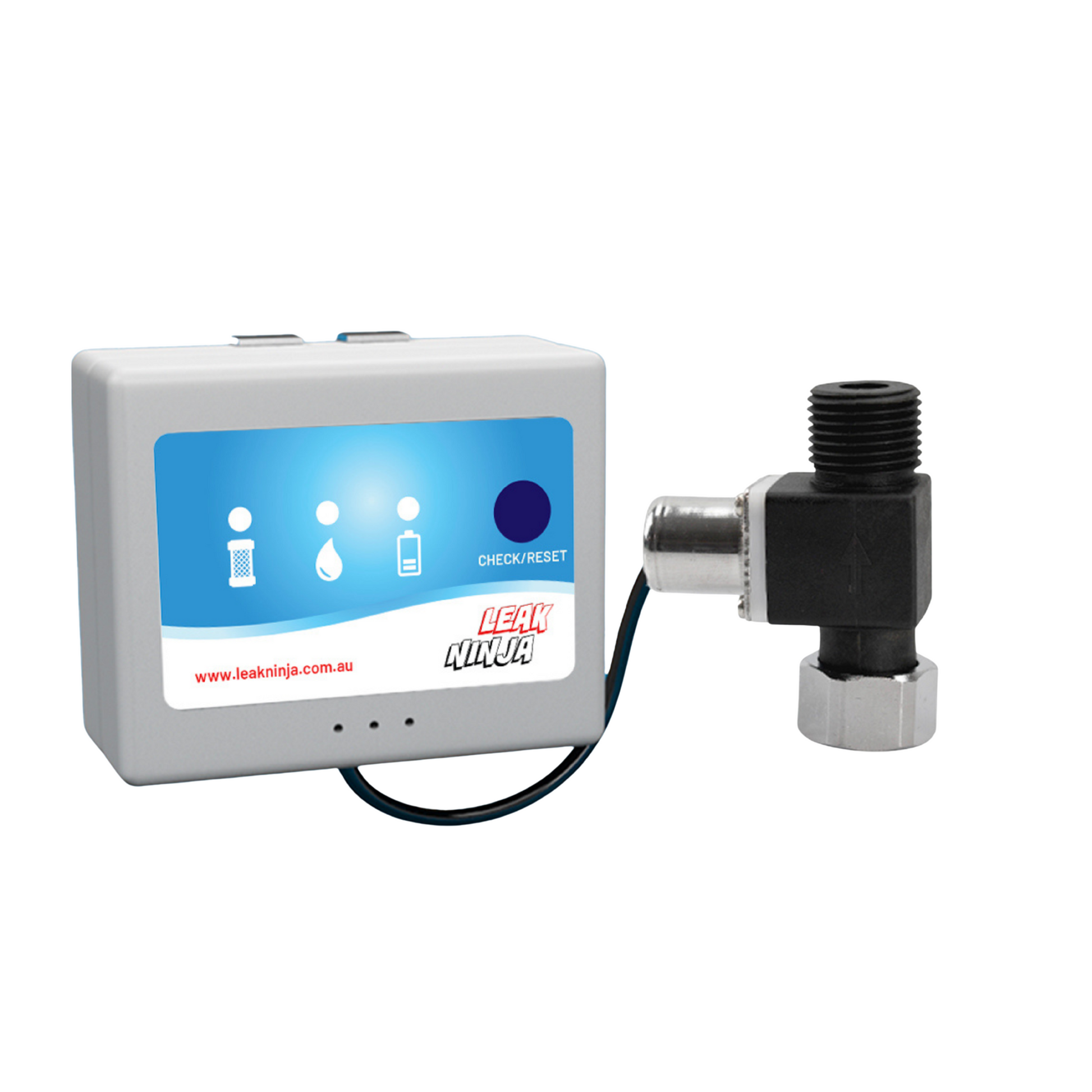

The Pure Water Systems Leak Protection System is your best defence against water damage in the event of a leak.
Designed to detect moisture using metal contacts on the control box, sounding an alarm and shutting off the water supply to the water filtration system.
Giving peace of mind that your home and your water filtration system are protected from potential water damage. This unit also has an inbuilt cartridge life monitor that indicates when the filter cartridge is due to be changed.
How it works
When moisture is detected by the metal contacts, the alarm is triggered which activates the solenoid valve to shut off water supply to the water filtration system.
The Leak Warning Indicator will continuously blink blue. The alarm will continue to sound until the leak detector is reset manually.
After resolving the leak, press and hold the reset button, the Leak Protection System will beep and reset the Solenoid Valve to return the water supply to the water filtration system.
This unit is suitable for use with all under sink filtration and purification systems as well as washing machines, dishwashers, fridges, bubblers, coolers and even chiller units.
Specifications
Downloads
Download BrochureSpecifications
| Operating Voltage | 9V DC |
| Supply Current Typical | 1.0 mA, Maximum 15.0 mA |
| Cable Length | 1.5m for Solenoid Valve Cord |
| Connecting | 1/2” BSP Male |
| Working Temperature | 0—60°C |
| Maximum Pressure | 112 PSI |
| Body Material | Chrome Plated Brass |
| Solenoid Valve | Chrome Plated Brass |
Supplied With
| 1x | Control Box |
| 1x | 1/2" Swivel Connector |

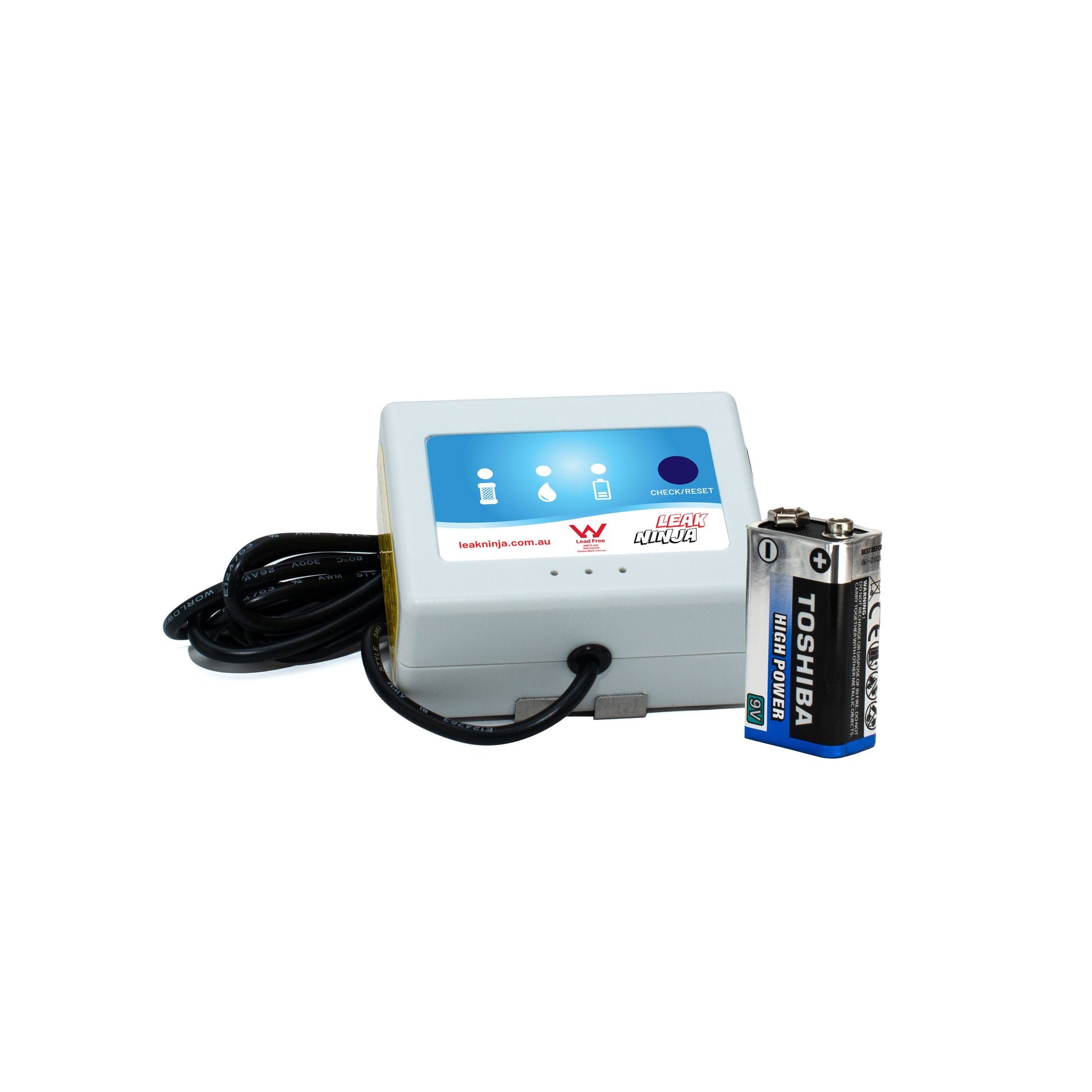

| 1x | 9V Alkaline Battery |

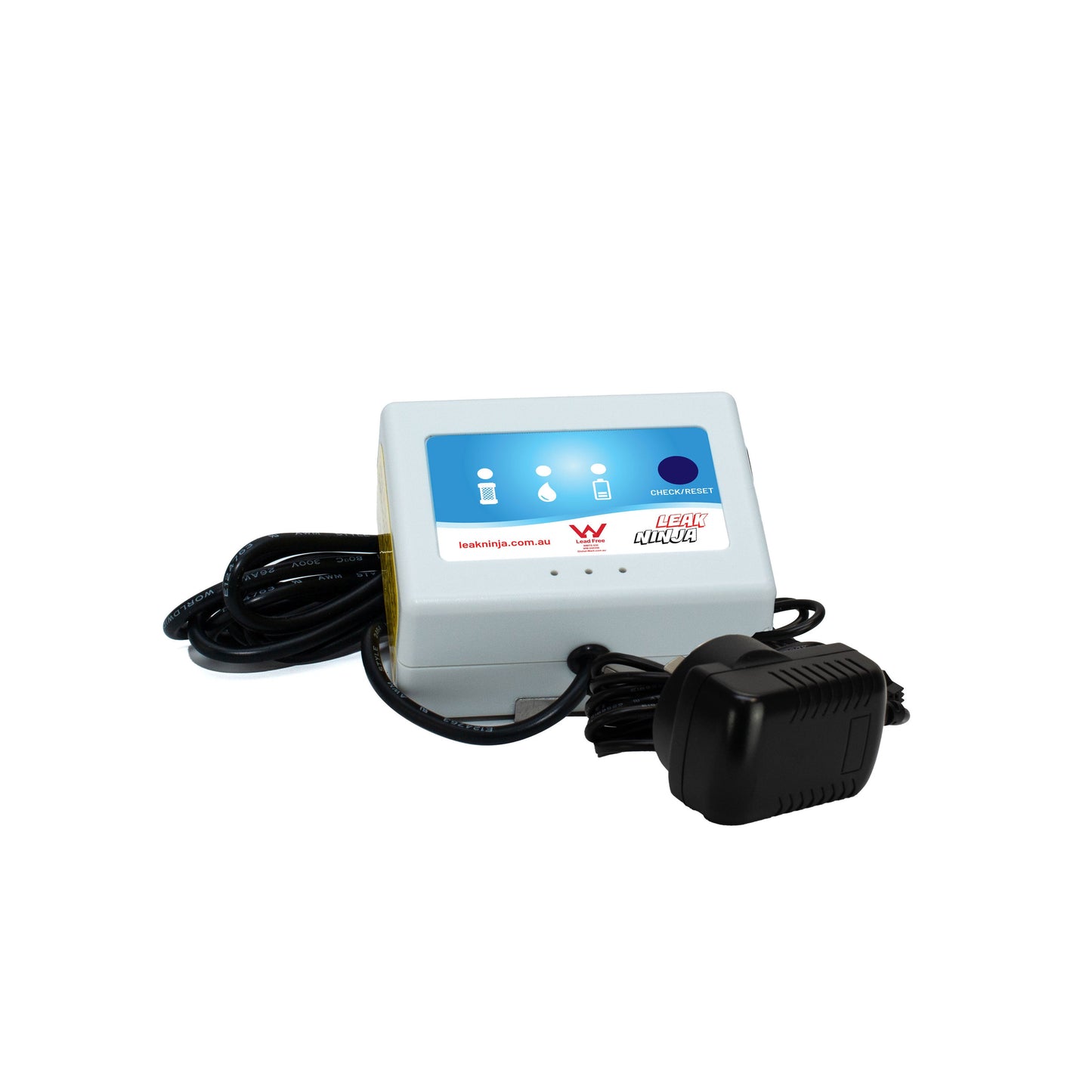

| 1x | Power Cord |
| 1x | Installation Instructions |
