Product Description

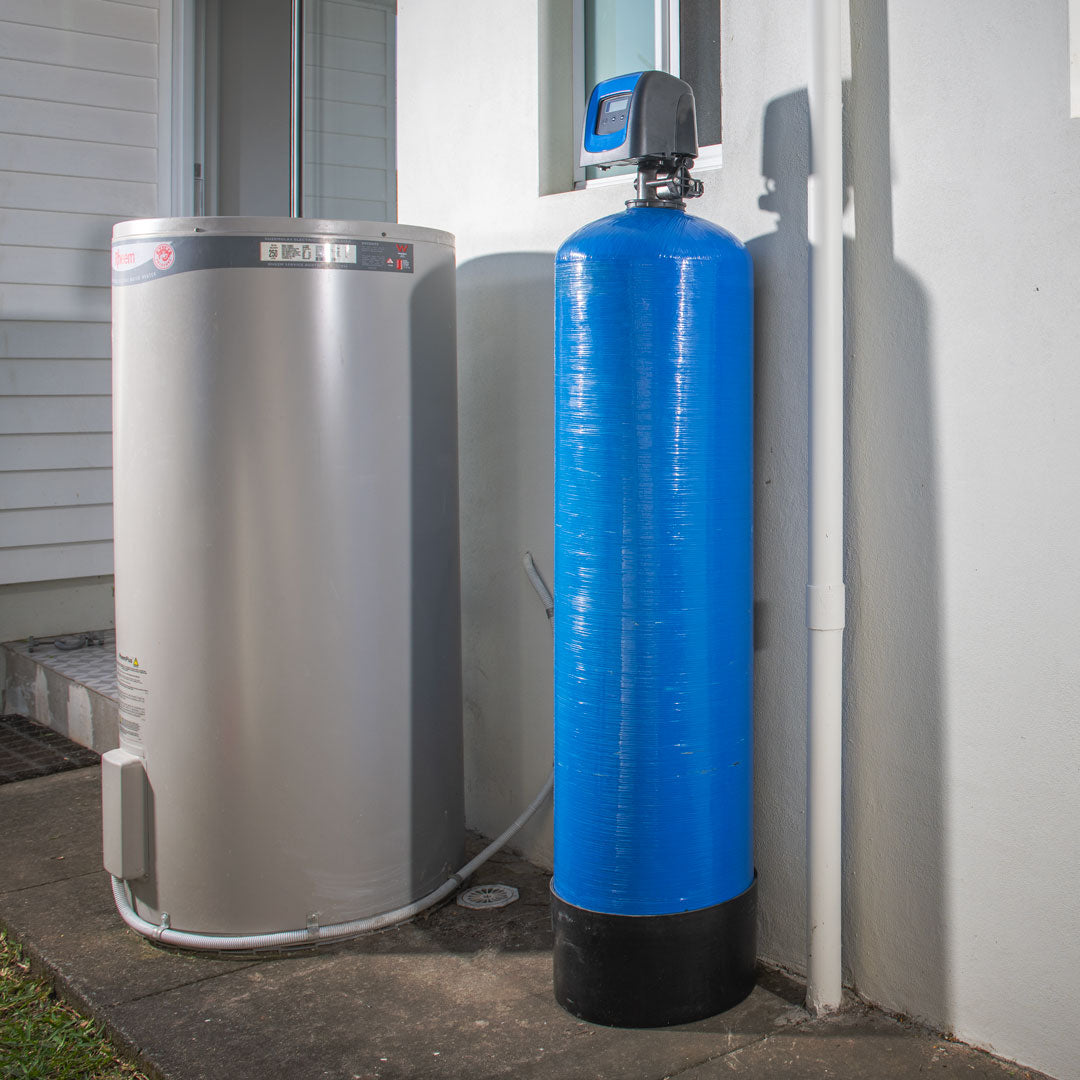

The Carbon Whole House System is designed to be installed inline, at the point where water enters the home, therefore filtering the entire household. Using the highest quality activated carbon, the Whole House System is an effective, convenient and cost-effective system to treat not only drinking water, but water going to any outlet in the home or business.
The system is designed to reduce many volatile organic chemicals (VOCs), disinfection products such and Chlorine, solvents, sediment, dirt and many other chemicals that may be found in the water supply.
Prepared, supplied and installed specifically to each customers’ needs, the Carbon Whole House system ensures that quality and performance are always of the highest standards.
Pure Water Systems prides itself on ensuring that each and every customer receives a product that they can be confident in purchasing. Therefore, to ensure that you receive a system that suits your needs, we recommend that you contact our Customer Service Specialists to discuss which how we can best help you.
Specifications

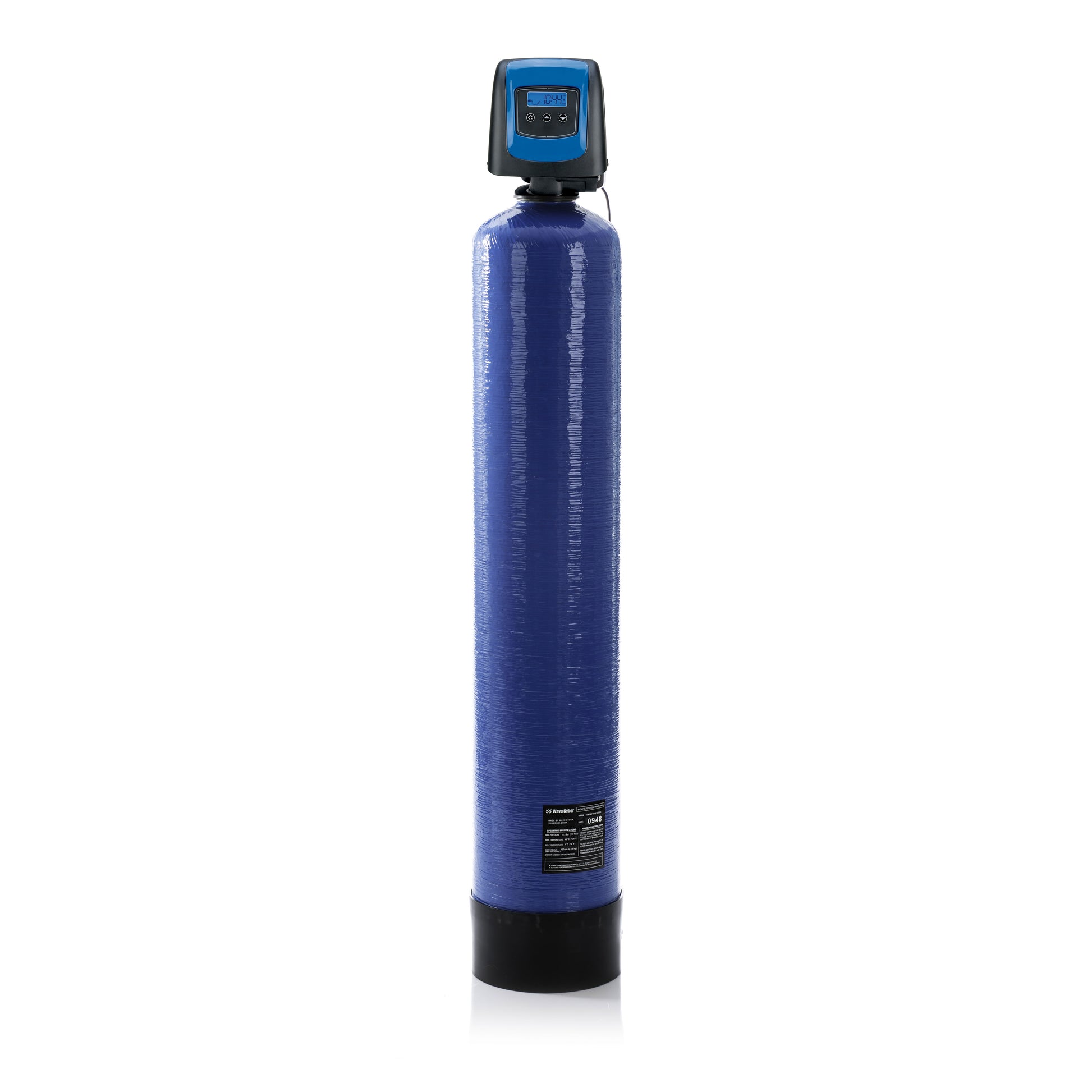

Signature Series Whole House Specifications
Small Whole House (Code: WH1)
Dimensions (HxD) | 1420 x 230mm |
Recomended For | Small Home 1 Bath, 1-2 Bedrooms |
Large Whole House (Code: WH2)
Dimensions (HxD) | 1570 x 330mm |
Recomended For | Medium Home 2 Bath, 3-4 Bedrooms |
Extra Large Whole House (Code: WH3)
Dimensions (HxD) | 1850 x 410mm |
Recomended For | Large Home More than 2 Bathrooms |
Flow Rates
Flow Rate | WH1 | WH2 | WH3 |
---|---|---|---|
Continuous (LPM) | 8 | 18 | 27 |
Peak (LPM) | 17 | 35 | 53 |
Backwash (LPM) | 17 | 34 | 57 |
Control Valve
Continuous Flow Rate | 95 Litres |
Peak Flow Rate | 122 Litres |
Pressure Rating | 20-125 PSI |
Maximum Temperature Rating | 43°C |
Minimum Temperature Rating | Do Not Subject To Freezing Conditions |
Maximum Backwash | 77 Litres |
Electrical Rating | 220V - 50Hz |
Dimensions (LxWxH) | 179 x 151 x 200mm |
Valve Material | Fibre - Reinforced Polymer |
Inlet/Outlet | 3/4" |
