Product Description

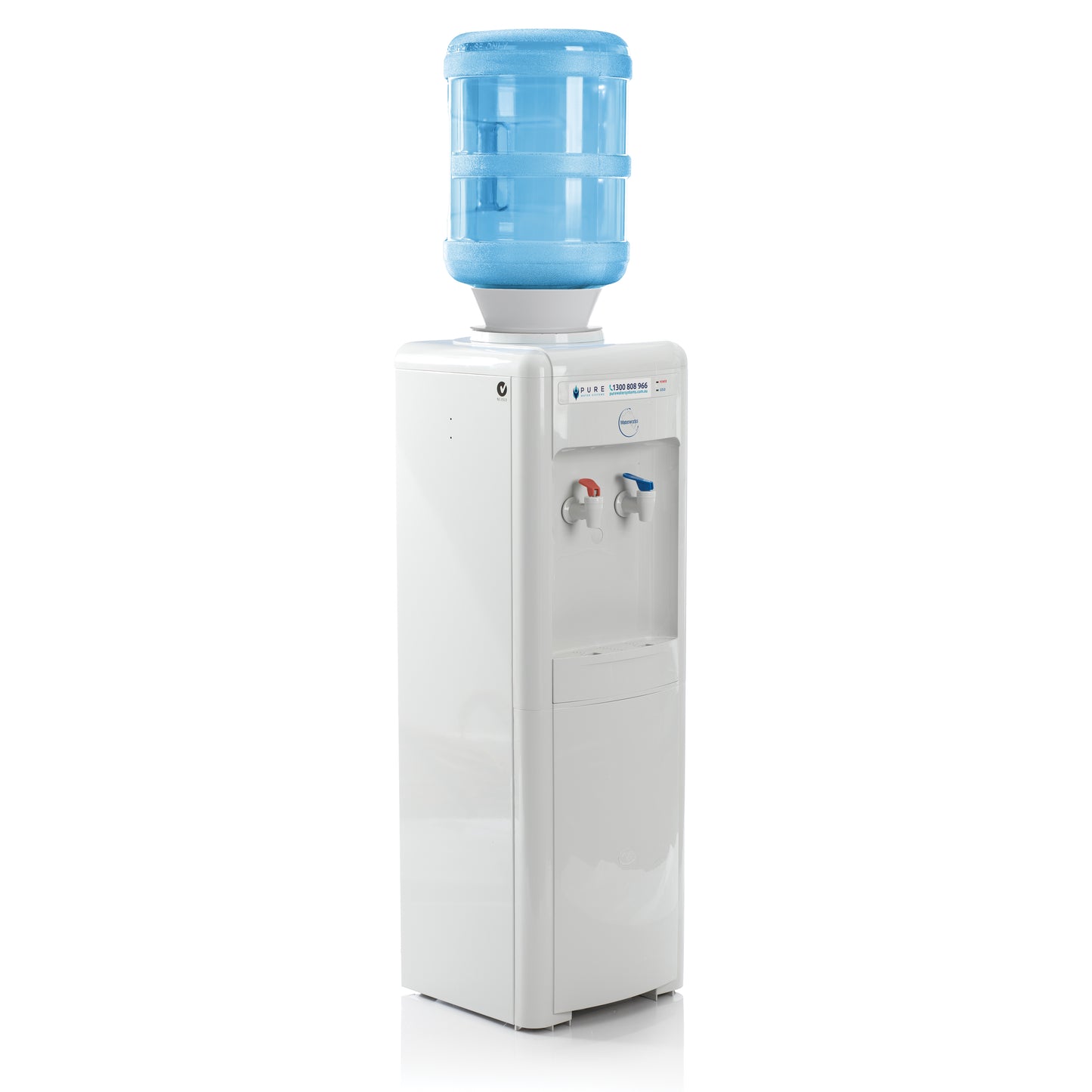

The Bottle Water Cooler provides refreshing cool and cold, or hot and cold filterred water on demand. Our range of portable coolers are bottle-fed to accommodate a variety of situations and include a 15L cooler bottle for water storage, providing a convenient and cost-effective alternative to buying bottled water for your home or business.
The water from the bottle passes through a 4-stage filter media to reduce chlorine, heavy metals and other potentially harmful contaminants, ensuring fresh and healthy filtered water in your home or office.

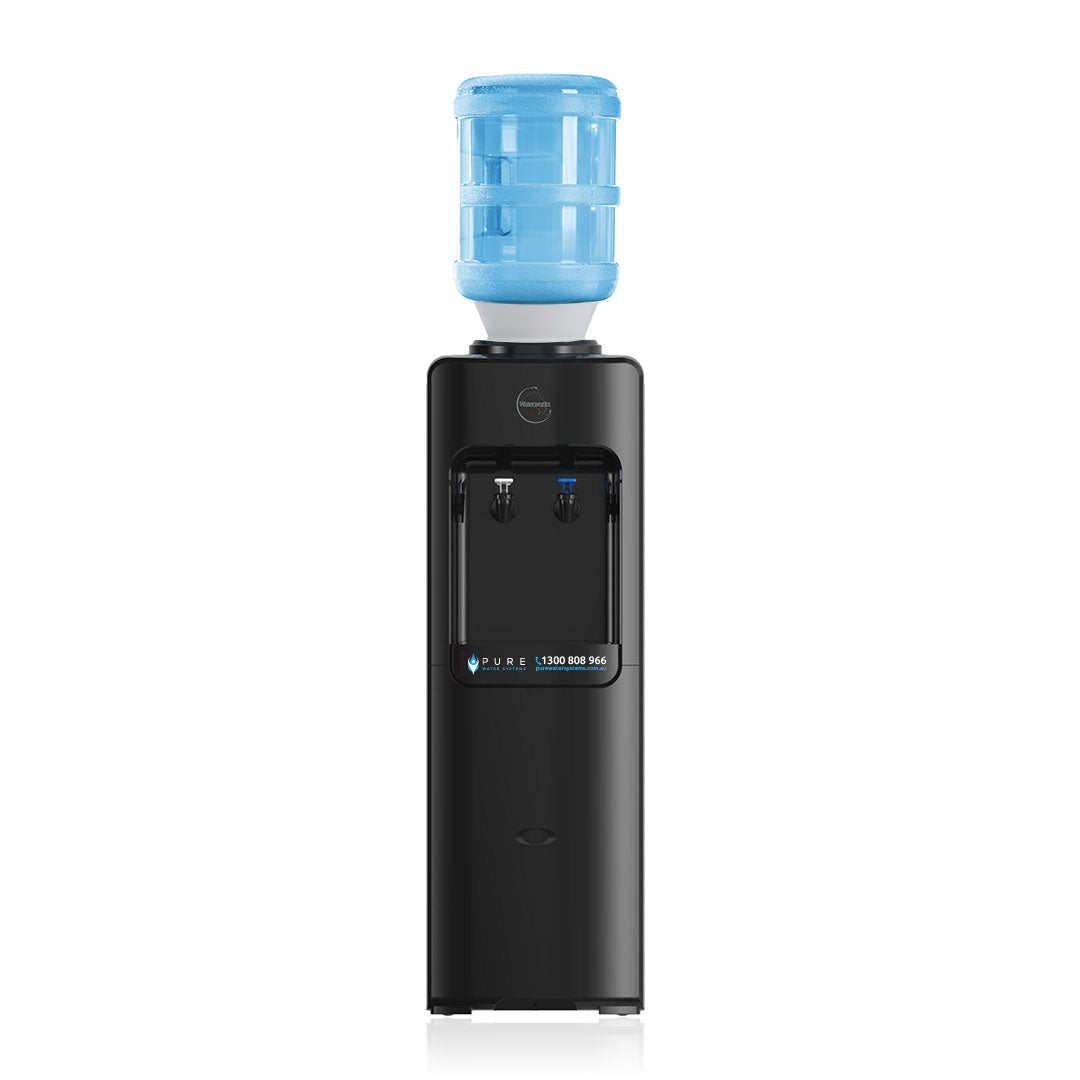

Combining a stylish design with durability, the ‘cloud white’ cabinets are a combination of high impact ABS plastics and powder-coated steel. Also available in ‘gloss black’, all surfaces are easy to clean and provide superior resistance to UV light. Our cooler range also come with a removable drip tray for easy cleaning and maintenance.
For installation, servicing and maintenance guidelines in your local area, please check with your local water authority or state plumbing regulations as they vary between states and territories.
Specifications
PRODUCT SPECIFICATIONS
| Cooler Dimensions (H x L x W) | 950mm x 310mm x 310mm |

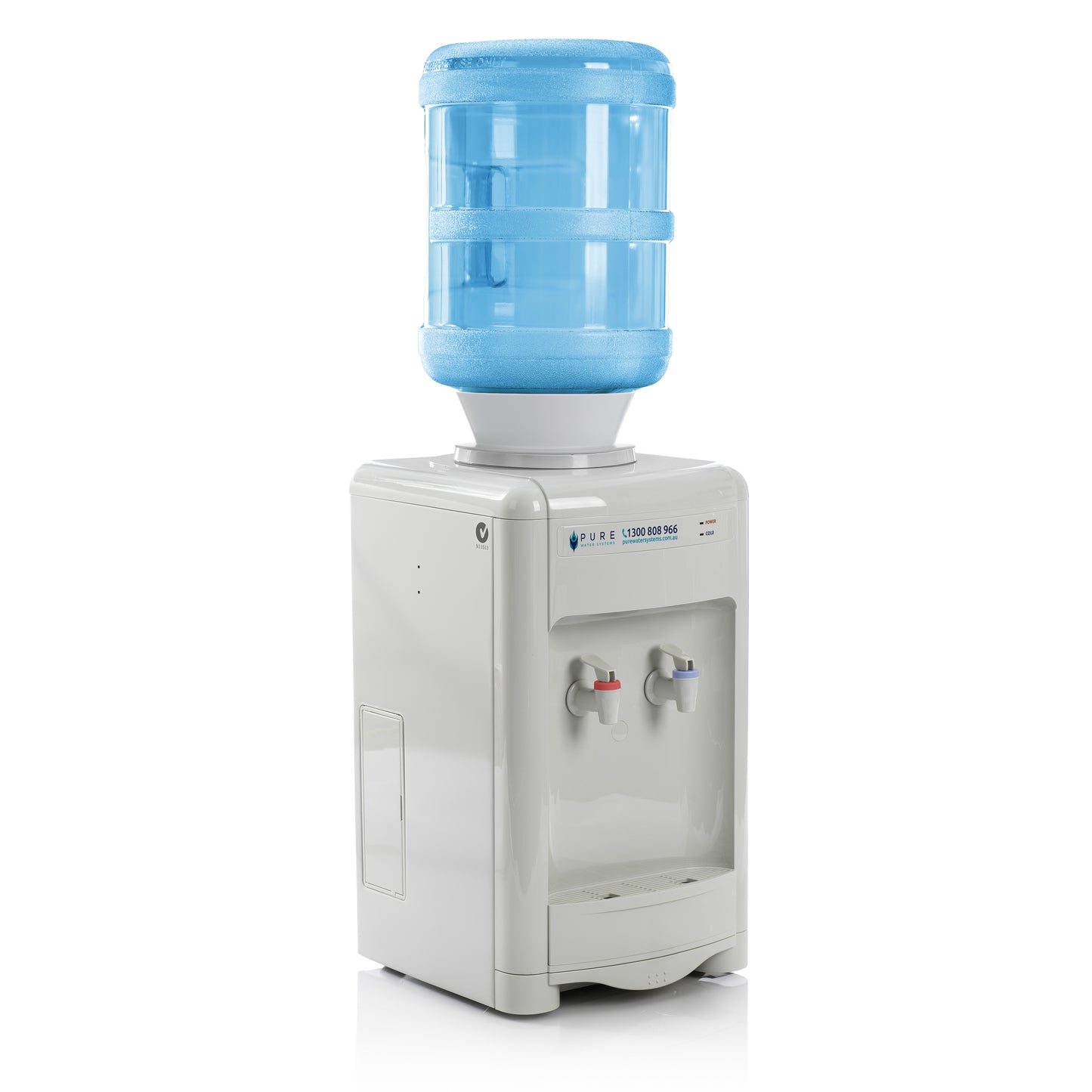

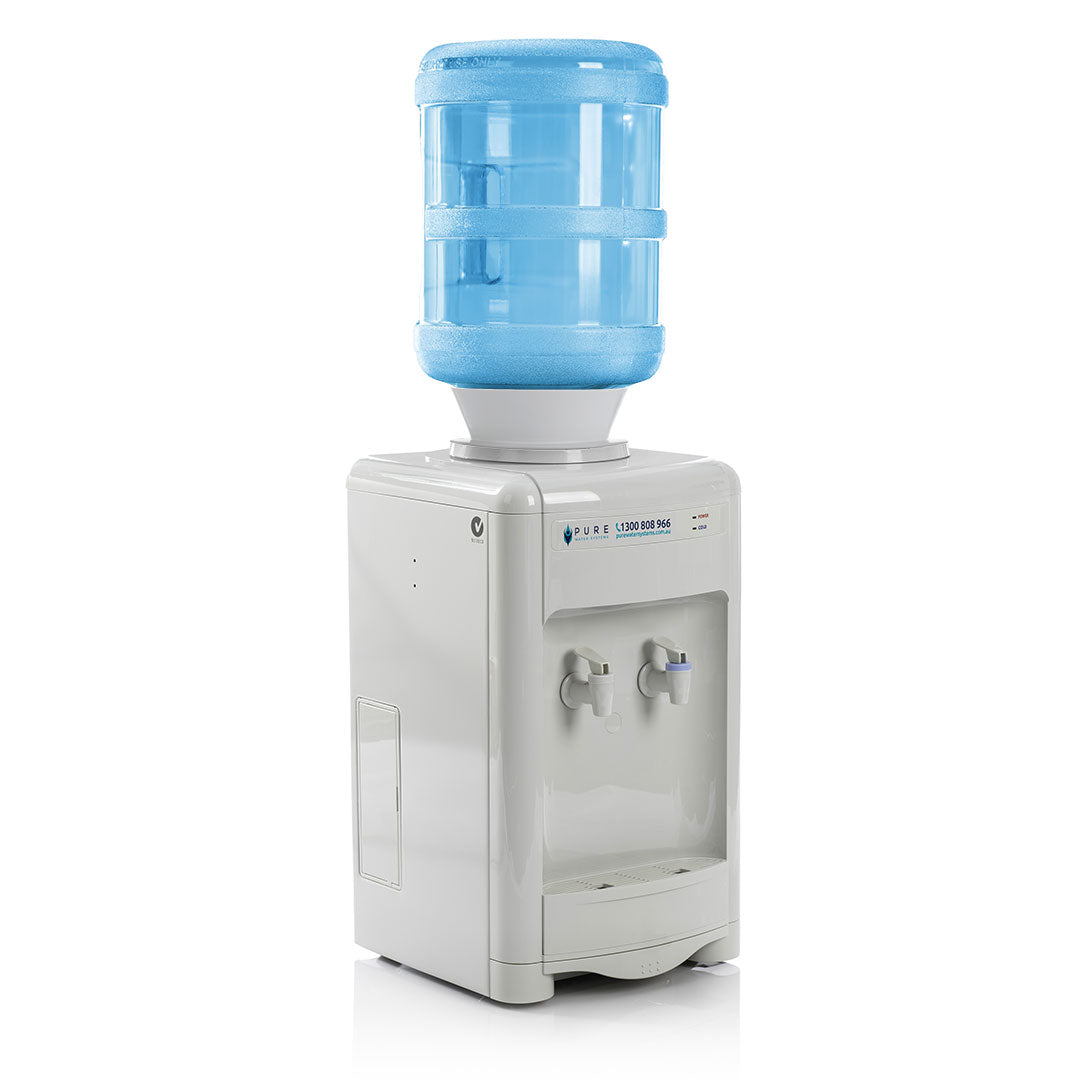

| Half Size Cooler | 310mm x 310mm x 534mm |
| 15L Bottle Dimensions (H x Dia.) | 455mm x 260mm |
| Cold Tank Capacity | 4L |
| Hot Tank Capacity | 1.8L |
APPROXIMATE WATER TEMPERATURE OUTPUT
| Tap | Approx. Temp. |
|---|---|
| Cold | Approx. 4 - 8°C |
| Cool | Room Temperature |
| Hot Tap | Approx. 84-87°C |
* Output temperature may vary depending on room temperature where the Cooler is installed and thermostat temperature set.
CAPACITY
| Room Temp °C | 21 | 27 | 32 |
| 150ml Cups / Hour 10°C | 44 | 32 | 18 |
| Litres / Hour 10°C | 6.6 | 4.8 | 2.7 |
| Hot Water Delivery | 45 x 170ml Cups / Hour | ||
*Intermittent use only, continuous use will result in reduced performance.
MATERIAL
| Cold Water Reservoir | Stainless steel |
| Cabinet | UV treated ABS plastic |
| Side Panels | Zinc-coated steel, high polymer polyester |
| 15L Bottle | Polycarbonate |
| Taps | NSF approved polypropylene |
Cooler Filter Cartridge (CC4)
Cooler Filter Cartridge Dimensions |
Top: 170mm x 175mm |
| Micron Rating | 5 Micron |
| Capacity | 6 Months or 4000L |
| CC4 FILTRATION PROCESS | |
| Stage 1 | 5 Micron needle felt membrane pre-filter |
| Stage 2* | 5 Micron weak acid cation resin for reducing hardness, heavy metal and chlorine |
| Stage 3** | High grade activated carbon for reducing chlorine, compounds, taste, rust and odour |
| Stage 4 | 5 Micron needle felt membrane final filter |
