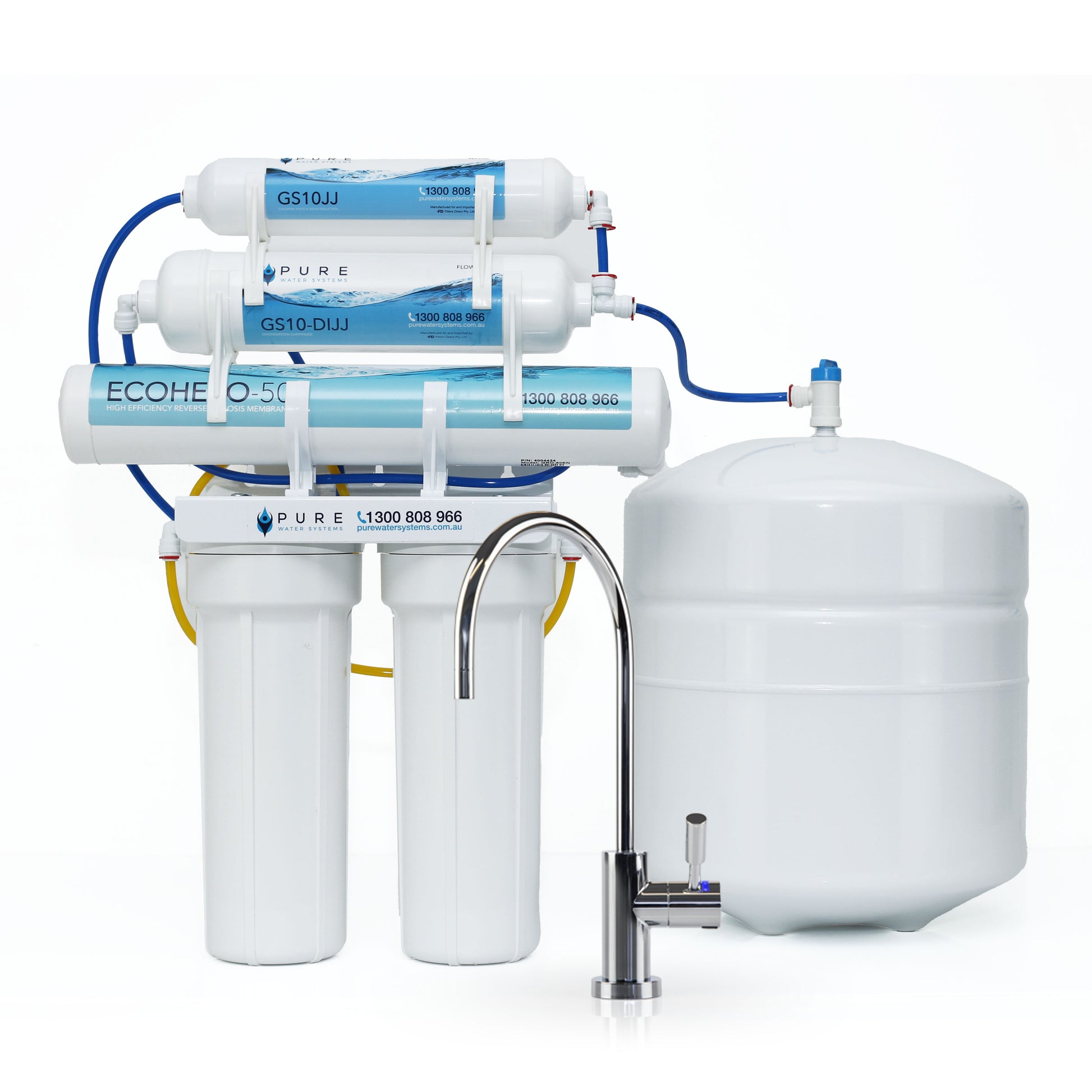

The Eco Hero 5 Stage Reverse Osmosis - Under Sink system is perfect for those who want to enjoy great quality purified drinking water conveniently at the turn of a tap. This system is neatly plumbed under your sink and includes a Slimline LED Faucet for an aesthetic and quality addition to your kitchen.
Of all methods to purify water, the process of reverse osmosis is one of the most advanced and effective. More than standard water filtration, the intense water purification process of reverse osmosis removes almost all contaminants found in drinking water, including total dissolved solids (TDS).
Better for the environment (and your home’s water usage), this system is fitted with the Pure Water Systems EcoHero-50 membrane. The EcoHero-50 is the latest in membrane technology, providing up to 300% improved wastewater efficiency when compared to rival membranes.
Unlike standard carbon water filtration, the ultra-fine 0.0001-micron EcoHero-50 membrane removes a minimum of 90.8% of total dissolved solids (TDS) from water. This reverse osmosis system significantly reduces organic and inorganic compounds such as fluoride, viruses, bacteria, herbicides, pesticides, nitrates, algae, phosphates and more. The end result is great tasting, healthier and purified drinking water, conveniently at the turn of a tap.
A Deionising Cartridge is added to this system to provide an additional stage of filtration to remove the most contaminants possible from your water, achieving a purity level similar to distilled water and as low as 0 ppm TDS. *

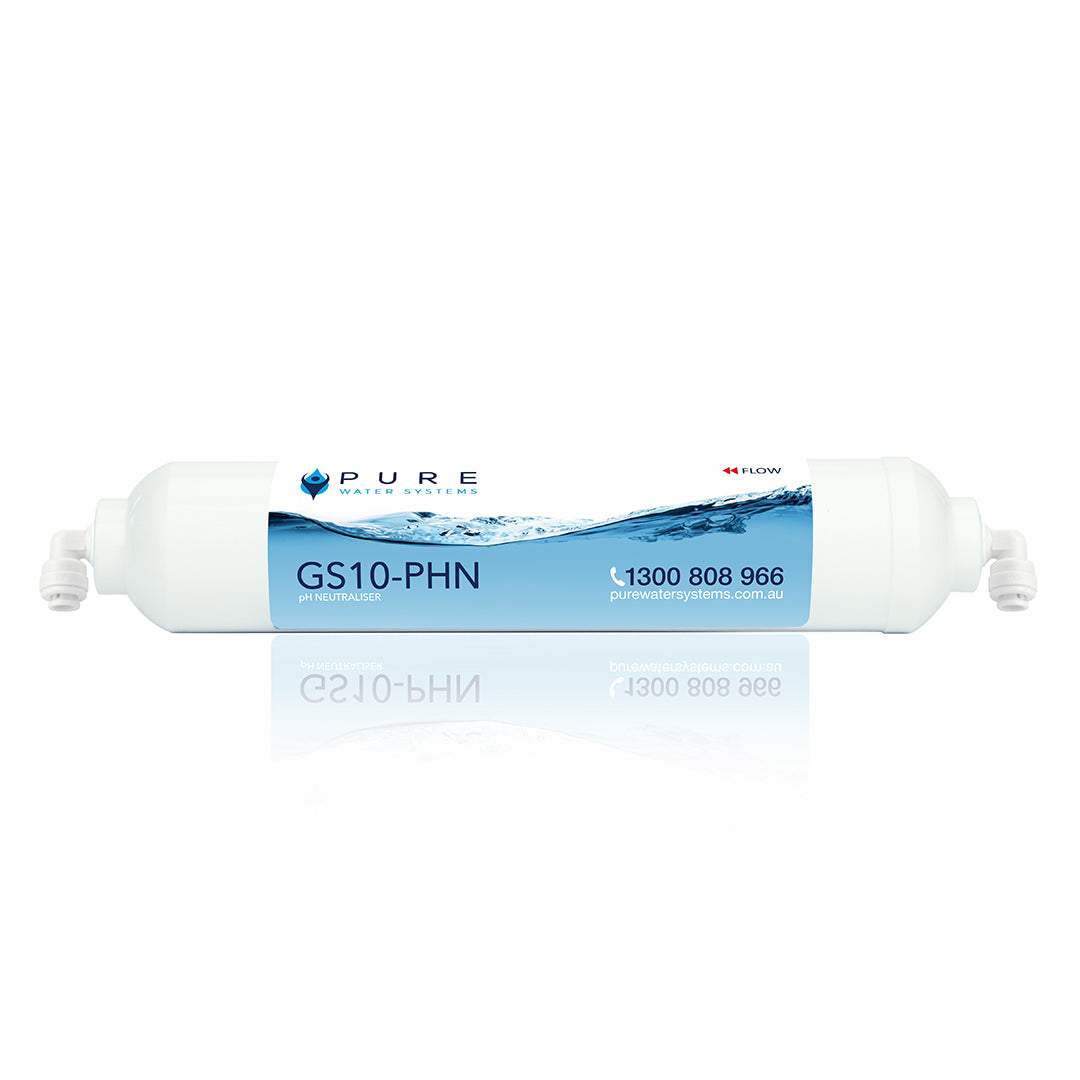

While reverse osmosis is excellent for removing contaminants (such as heavy metals like cadmium, arsenic and chromium), healthy minerals and salts can also be removed leaving your water acidic. For great potential health benefits (such as improved gut and kidney health), you can raise your water’s pH balance to a level considered alkaline by adding healthy minerals back to your water with a Remineraliser Cartridge.
Reverse osmosis water is more than just healthier, great-tasting water. You can use reverse osmosis water for washing fruit and vegetables, cooking with, tea and coffee, pets’ water dishes, watering plants and more!
The EcoHero 5 Stage Reverse Osmosis - Under Sink system is Watermark Certified and has NSF 42 Certified components. This system comes ready to install, complete with cartridges and high-quality housing parts and fittings.
* Based on an inlet TDS of 100ppm. Internally tested using Pure Water Systems 5 stage reverse osmosis systems.
COMPLIMENTED WITH A MODERN AND STYLISH LED FAUCET

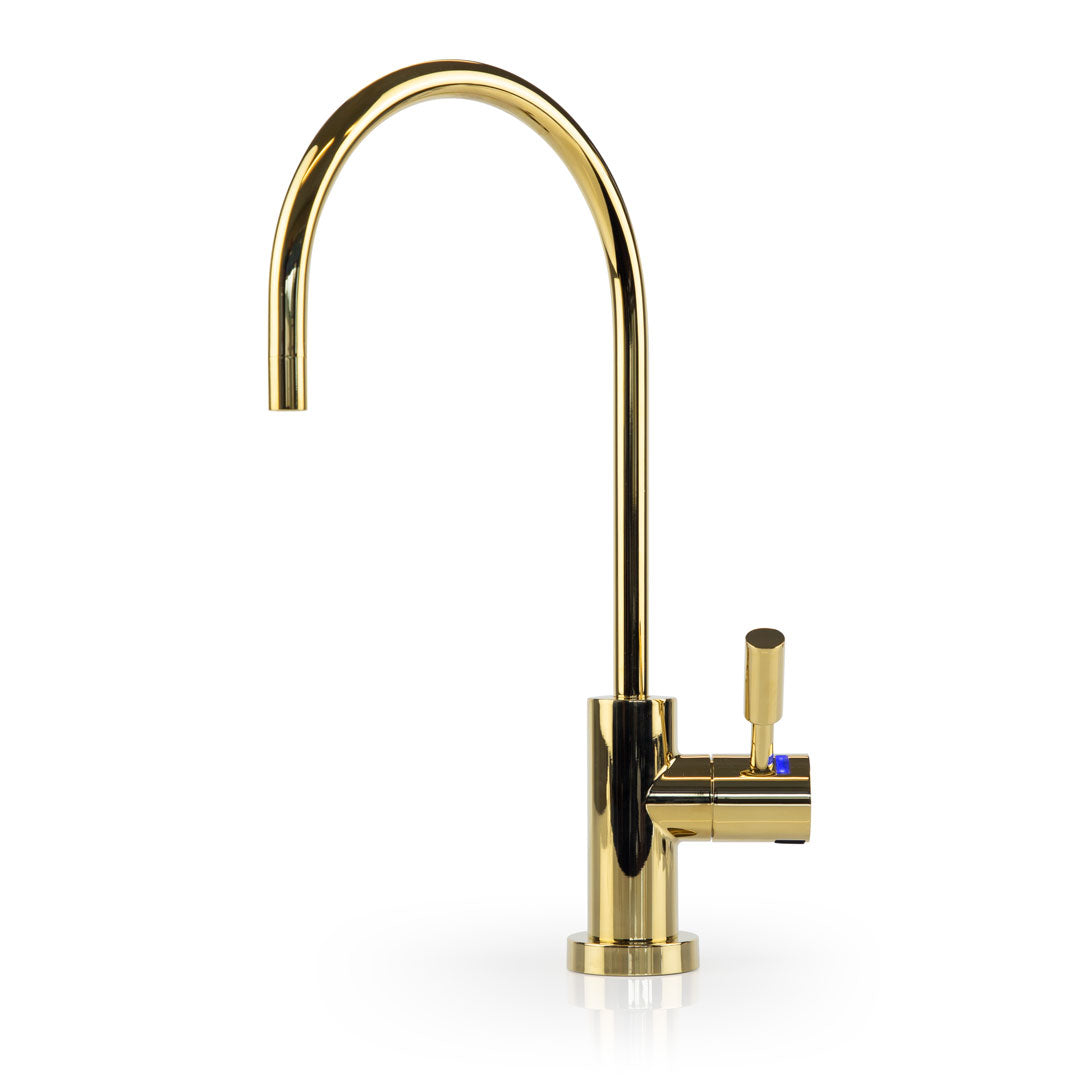

The stylish Slimline LED Faucet is an elegant, innovative water filtration faucet that comes in a variety of finishes to fit perfectly with the décor of your home.
Its clever design features a LED light that illuminates blue when fresh, filtered water flows through. The LED indicator will then change to red to indicate when it is time to replace your filter cartridge, so there is no more guessing or forgetting.
Simply replace the faucet battery at the same time as your filter cartridge to reset the LED indicator for another 12 months*. To make life even easier, Pure Water Systems will supply a replacement faucet battery when you purchase a replacement filter cartridge.
ECOHERO 5 STAGE REVERSE OSMOSIS UNDER SINK
|System Dimensions (H x L x D)||450mm x 385mm x 130mm|
|Tank Dimensions (H x D)||360mm x 280mm|
|Flow Rate||50 GDP (190 Litres/Day)|
|Min / Max Pressure||415 - 690 KPa (60 - 100 psi)|
|Min/Max temperature||5°C - 49°C|
|Waste Water Summary (Max Efficiency)||1 Part Purified : 1 Part Waste*|
|Watermark Certification||AS/NZS 3497 Licence 022815|
* EcoHero membrane test results provide a 50% recovery rate. Recovery rates will vary depending on inlet / holding tank pressure, water quality and the condition of the filters.
WATERMARK OFFICIAL NSF CERTIFIED CONTAMINANTS REDUCTIONS
TOTAL TDS REDUCTIONS PPM*
|Inlet TDS Reading||Post RO Membrane Reading||Post DI Cartridge|
|96 PPM||3 PPM||0 PPM*|
* Based on In-house testing conducted 29/10/2018, results may vary dependant on water quality.
|Sediment Pre Filter||1 Micron Polypropylene Spun Pre Filter (PWS-P1)|
|Carbon Pre Filter||5 Micron Modified Moulded Carbon Block (PWS-5+)|
|Carbon Post Filter||5 Micron Encapsulated Granular Carbon Filter (GS10JJ)|
|Membrane||EcoHero 50 Membrane (PWS-MEM50)|
|Post Membrane||Deionising Cartridge (DI)|
|EcoHero 5 Stage Reverse Osmosis System||AS/NZS 3497|
|Filter Housing||NSF Standard 42|
|EcoHero 50 Membrane||NSF/ANSI Standard 58|
|Tube||NSF Standard 51, NSF Standard 61|
|John Guest Fittings||NSF Standard 51, NSF Standard 61|
|Holding Tank||NSF Standard 58|
|Housing||Food Grade Polypropylene|
|EcoHero 50 Membrane||Aromatic Polyamide, Thin layer Composite Membrane|
|Holding Tank||Stainless Steel, High-grade Chlorobutyl Diaphragm, Virgin Polypropylene Liner|
|Recommended Water Source||Mains (treated),Tank (rain), Bore, River water supply|
|Max Pressure||125 PSI|
|Materials||Body = DR Brass (CZ132), Spout = Brass (C27000), Orings (spout) = EPDM, Shank (Tube) = Brass (CZ132), Handle = Brass|
|Connection||Connect to 1/4" (6mm) nylon tube via an olive, insert and compression nut (supplied with faucet)|
|NSF certified||NSF 61|
|Max. Bench Thickness||60mm|
|Warranty||3 Year Warranty*|
|EcoHero 5 Stage Water Filter system with mounting bracket|
|12 Litre (6-8 Litre capacity) Holding Tank|
|Slimline LED Faucet|
|Australian approved standard cold water connection kit including:
