Product Description

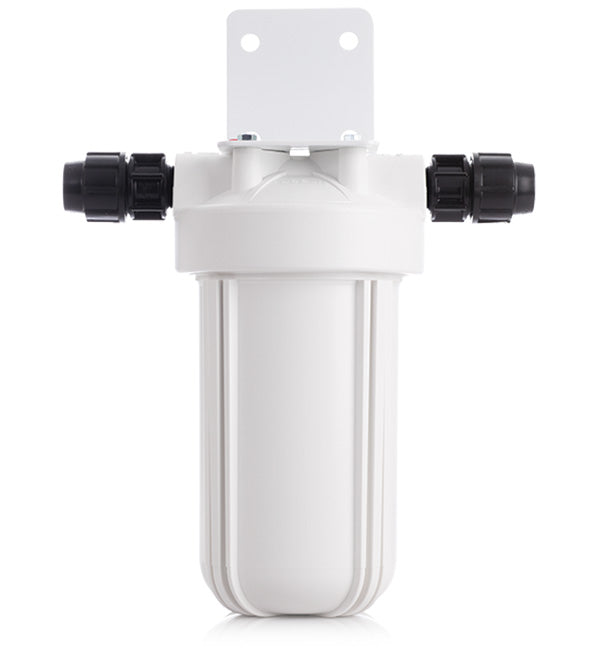

The Big White Washable Package is installed outside, inline from your tank to your home.
This system provides superior filtration of heavy sediment and dirt particles at the point of entry and can be supplied with either a 5, 10, 20, 50 or 100 micron cartridge, depending on the quality of your water and your needs.
The Big White Washable Package utilises a high flow, pleated filter cartridge which can be rinsed periodically to maintain the filtration system's performance and is constructed using only the highest quality parts and fittings available, sourced from leading manufacturers world wide. This system is an economical solution to your filtration needs and is available for use with tank water supplies.
Specifications
Downloads
Download BrochureCartridge
PWS Part # | R20BB10 (Supplied as standard) |
Material | Polyester Fabric |
Micron Rating | 5, 10, 20, 50 or 100 Micron Nominal |
Temperature Rating | 4.4°C - 60°C |
Dimensions | 10" x 4.5" |
Benefit | Washable |
Housing
PWS Part # | H1BW10 |
Features | Pressure Relief Button on Inlet Side of Cap |
Dimensions | 335 x 185mm |
Flow Rate | 57 LPM |
Material | Food Grade Polypropylene |
Pressure Rating | 100 PSI (6.9 BAR) |
Temperature Rating | 4.4°C - 37.8°C |
O'Ring Material | BUNA-N |
Supplied With
1x | Housing & Base |
1x | Washable Cartridge |
1x | Mounting Bracket |
8x | Coach Screws & Washers |
2x | 25mm Blue Line Male Adaptors |
1x | Housing Spanner |
1x | O-Ring |
1x | Installation Instructions |
