Product Description

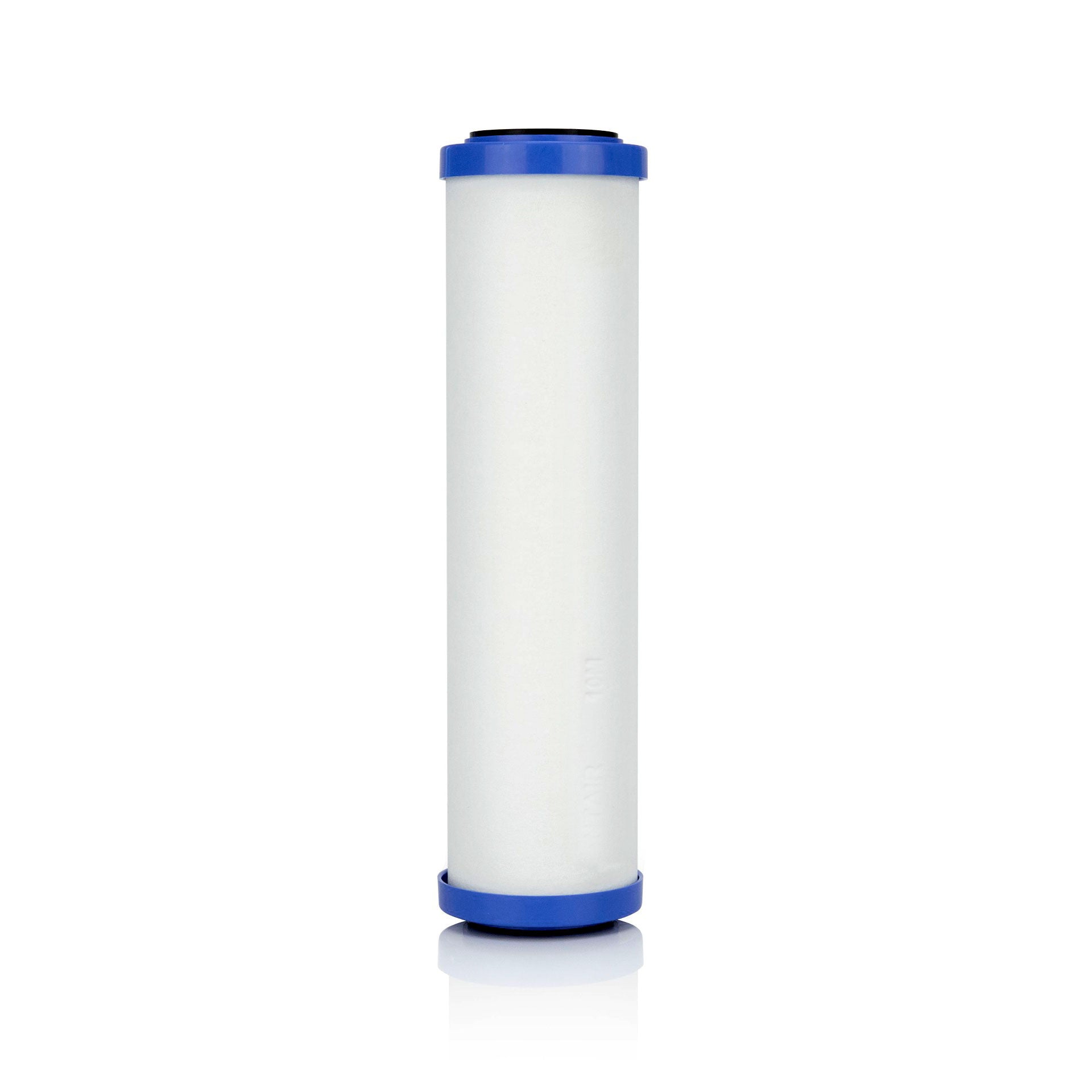

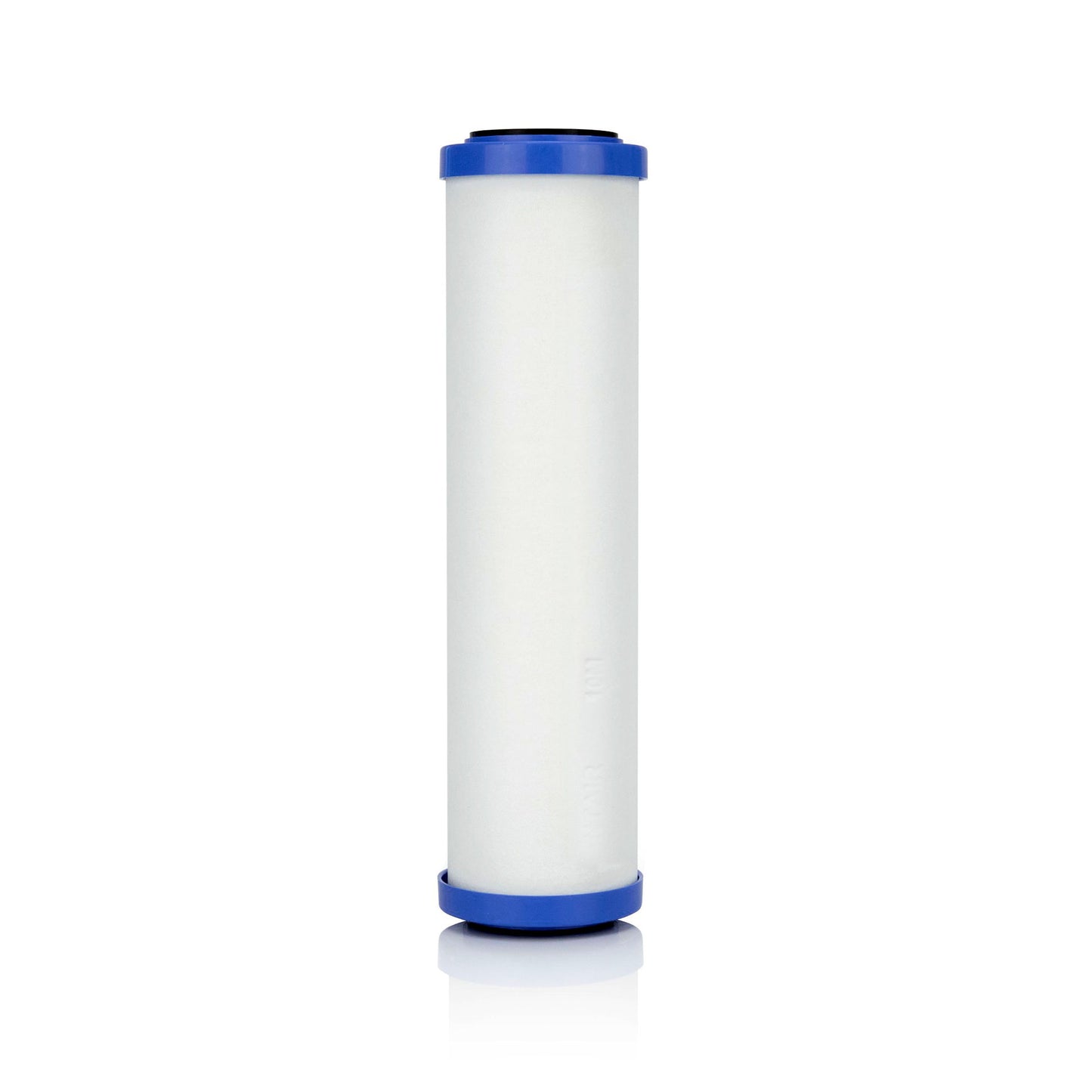

The Diamond Flow Carbon Block Cartridge utilises a dual filtration design which incorporates both a polyspun polypropylene outer layer and carbon block technology on the inside to reduce chlorine, taste and odour whilst also capturing higher levels of finer dirt and particulate. This reduces clogging of the cartridge, leaving you with fresh filtered water.
This cartridge is available in 20” x 4.5” and is used in many point of entry/whole house systems, including the second stage of the UV7501 Twin UV Whole House System.
For installation, servicing and maintenance guidelines in your local area, please check with your local water authority or state plumbing regulations as they vary between states and territories.
Specifications
DFX-CB-20BB CARTRIDGE SPECIFICATIONS
Flow Rate | 76 Litres per minute |
Dimensions (HxW) | H = 508mm, W = 114mm |
Min / Max Temperature | 4.4 - 62.8°C |
Min / Max Pressure | 210 - 500 kPa (30 - 73 psi) |
Micron rating | 10 micron |
Material | Polypropylene and Carbon Block |
Service Life | 12 months |
SKU | DFX-CB-20BB |
