Product Description

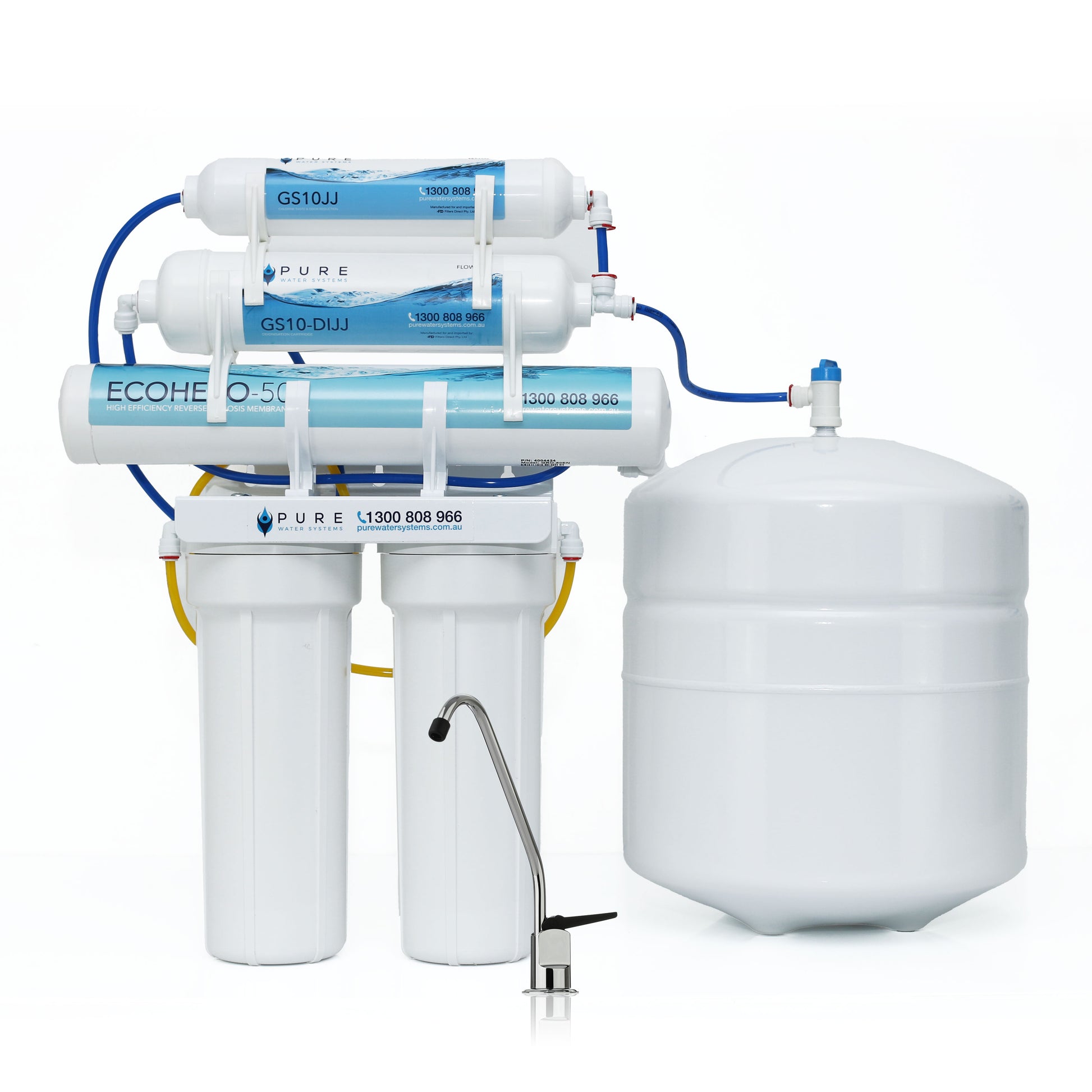

EcoHero 5 Stage Reverse Osmosis Water Purifier – Under Sink (System Only)
The Pure Water Systems EcoHero 5 Stage Reverse Osmosis Water Purifier delivers advanced water purification for those seeking exceptionally pure, fresh and great-tasting drinking water, conveniently from their kitchen tap.
Designed to fit neatly inside your under-sink cupboard, this system combines advanced reverse osmosis technology with an additional deionising cartridge to significantly reduce unwanted contaminants and dissolved solids.
For customers who prefer a more neutral pH and improved taste, an optional pH Neutraliser/Deodoriser Cartridge can be added to the system.

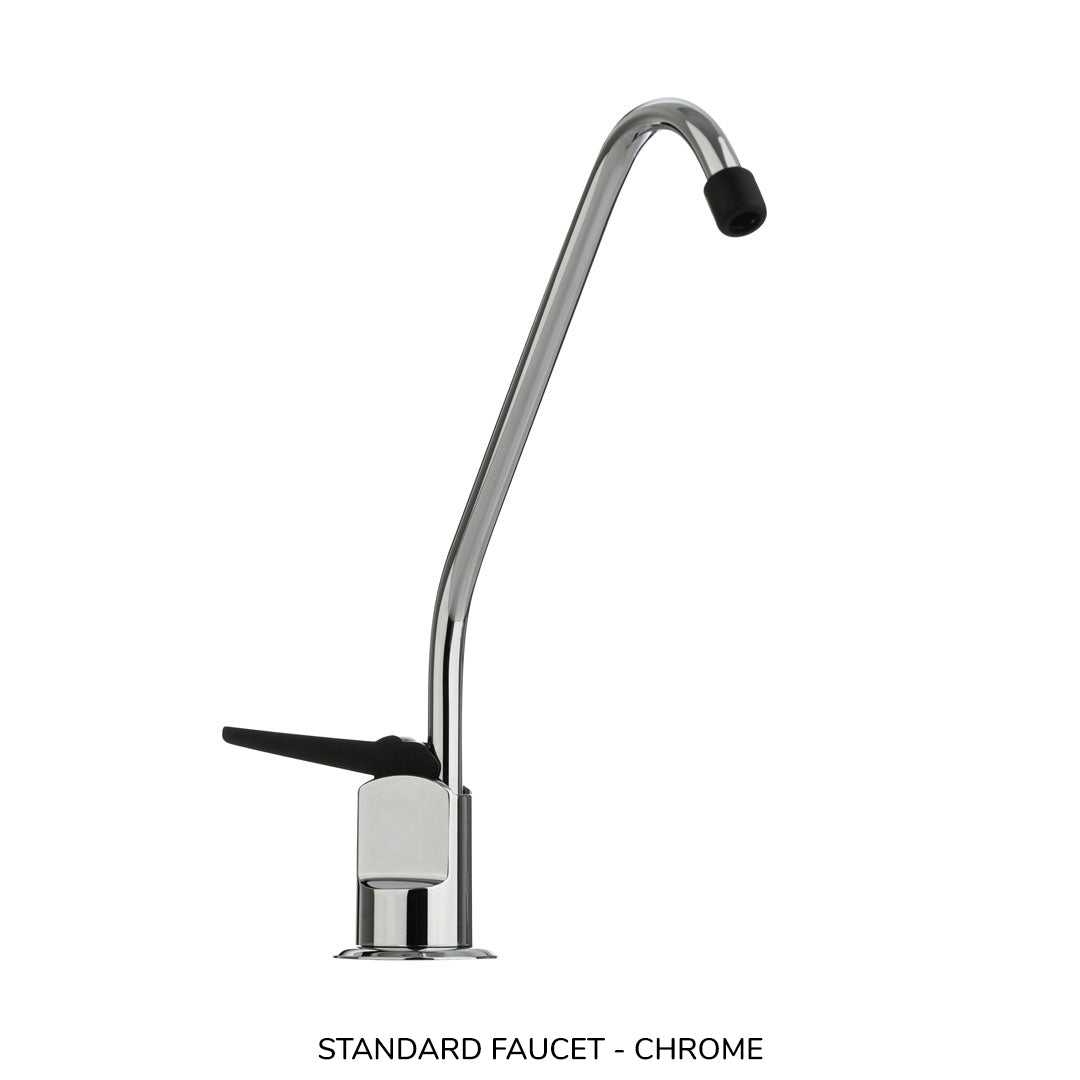

CHOOSE YOUR FAUCET
The EcoHero Reverse Osmosis Water Purifier is installed inside your under-sink cupboard, keeping your kitchen benchtop clutter-free.
This is a System Only product and does not include a faucet. Choose a compatible standalone drinking water faucet or 3-way mixer tap to complement your kitchen style and installation requirements.
Explore our range of stylish mixer taps and faucets to complete your system.
WHAT IS REVERSE OSMOSIS?
Reverse osmosis is one of the most advanced methods of water purification, going beyond standard carbon filtration to reduce a wide range of contaminants found in drinking water.
The process forces water through an ultra-fine membrane, removing dissolved impurities, including total dissolved solids (TDS).
The EcoHero system features the advanced EcoHero-50 Reverse Osmosis Membrane, designed to provide up to 300% improved wastewater efficiency compared with other reverse osmosis membranes.
Its ultra-fine 0.0001-micron membrane removes a minimum of 90.8% of total dissolved solids (TDS) and significantly reduces contaminants such as fluoride, bacteria, viruses, herbicides, pesticides, nitrates and other organic and inorganic compounds.
The result is purified, great-tasting drinking water, conveniently available from your chosen faucet.
ADVANCED 5 STAGE REVERSE OSMOSIS PURIFICATION
The EcoHero 5 Stage Reverse Osmosis System incorporates an additional deionising cartridge for enhanced purification.
The deionising cartridge uses ion-exchange resin beads to capture residual electrically charged dissolved solids remaining after the reverse osmosis process.
This additional purification stage can achieve water purity levels similar to distilled water and as low as 0 ppm TDS under specified testing conditions.*
The system is ideal for customers seeking maximum contaminant reduction and the flexibility to customise the final taste and pH of their drinking water.

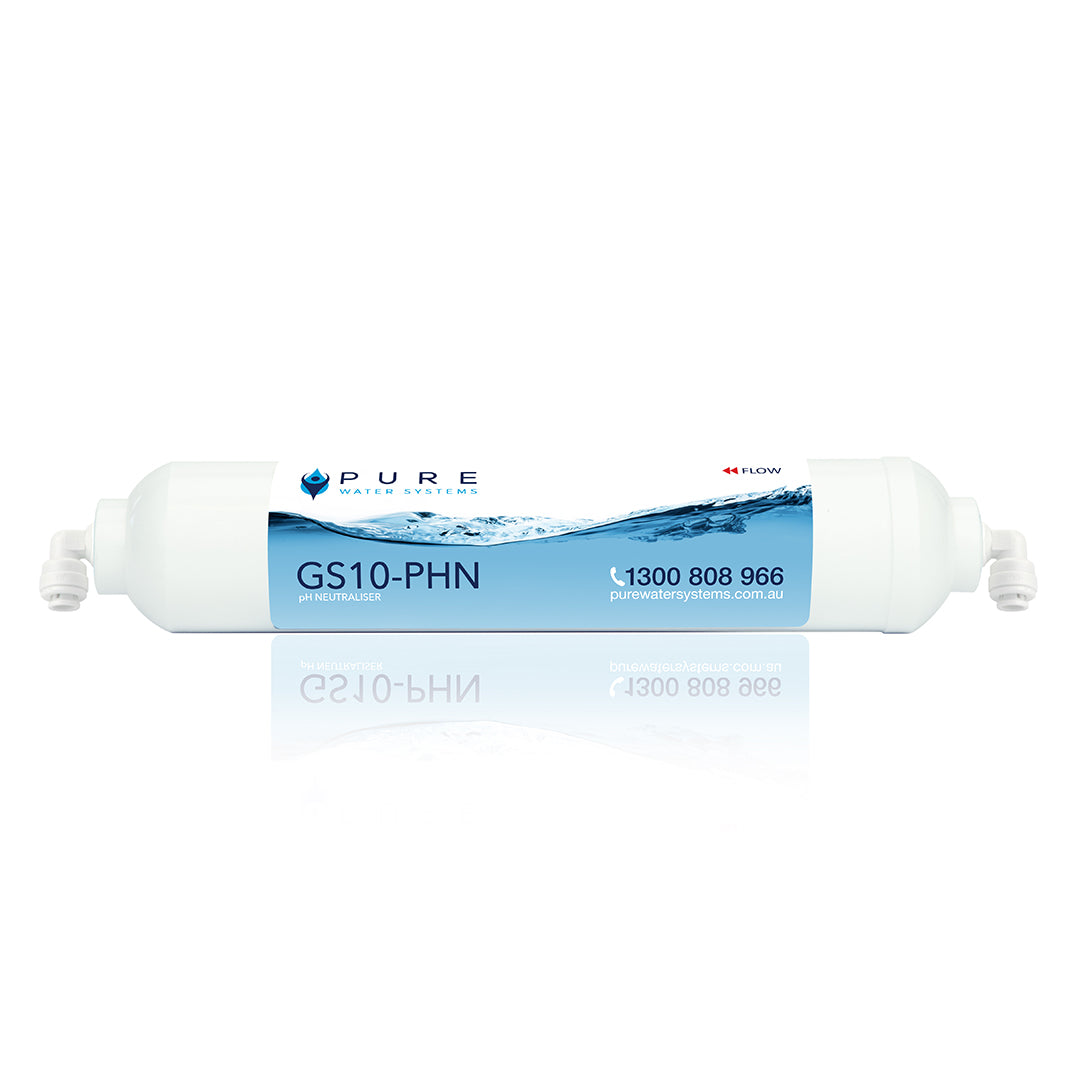

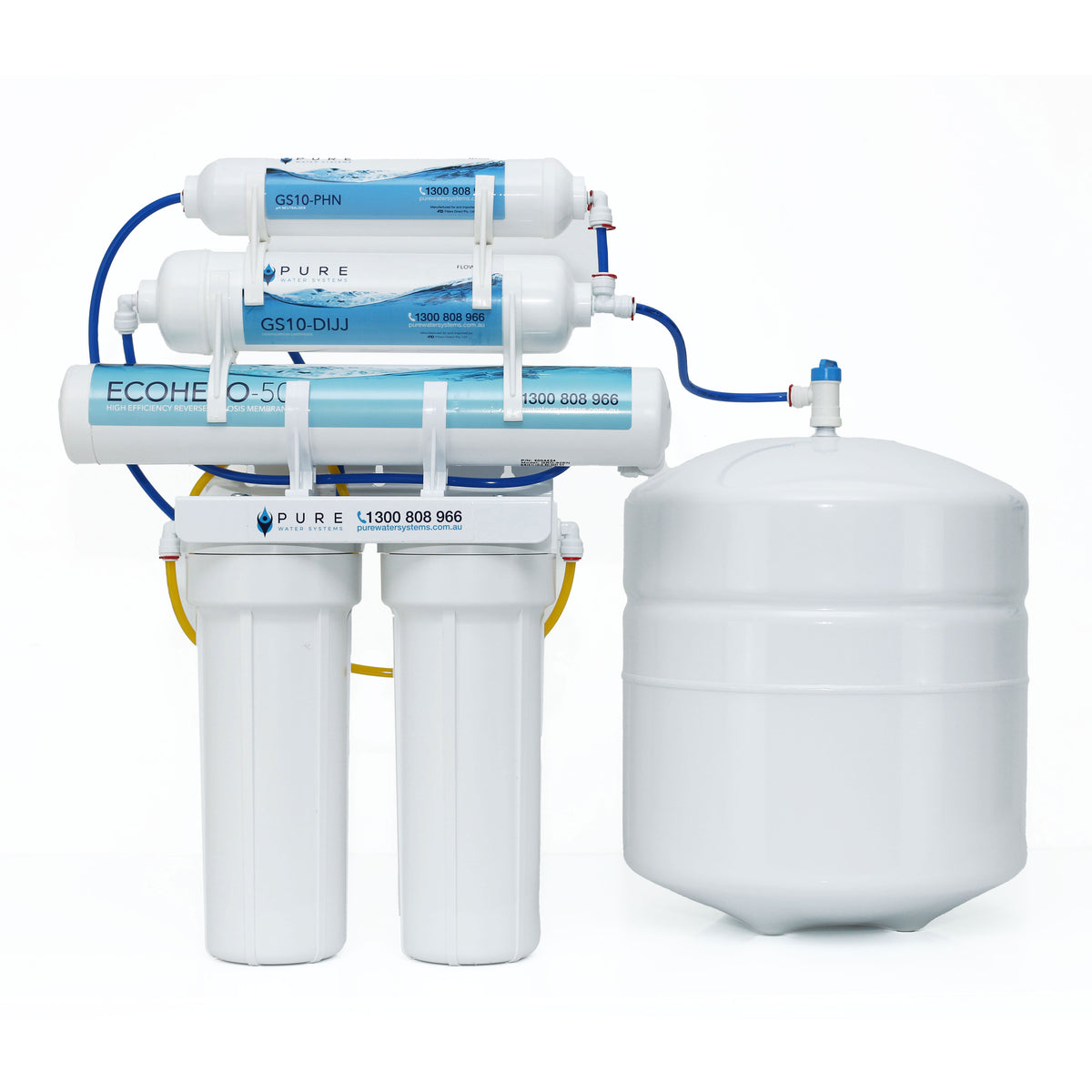

OPTIONAL ADD-ON: pH NEUTRALISER / DEODORISER
Reverse osmosis is highly effective at reducing contaminants, including heavy metals such as cadmium, arsenic and chromium. However, the purification process also removes naturally occurring minerals, which can leave purified water mildly acidic.
The Pure Water Systems pH Neutraliser/Deodoriser Cartridge is an optional final treatment stage designed to improve the taste and pH balance of your purified drinking water.
The cartridge combines two key functions:
-
pH Neutralisation: Calcite helps raise the pH of purified water towards a more neutral level of approximately 7.5.
-
Taste & Odour Improvement: Granular activated carbon helps reduce any remaining unpleasant tastes and odours, refreshing water stored in the system's holding tank.
This optional cartridge is ideal for customers who prefer purified drinking water with a more neutral pH and a fresh, clean taste.
Please note: The pH Neutraliser/Deodoriser is an optional add-on and is not included unless selected.
Prefer Remineralised Water?
For customers who prefer to add minerals back into their purified water, a Remineraliser Cartridge is also available.
The remineraliser is designed to restore minerals such as calcium, magnesium, potassium and sodium while raising the water's pH towards alkaline levels.
CERTIFICATIONS & QUALITY COMPONENTS
The EcoHero 5 Stage Reverse Osmosis Under Sink System is Lead-Free WaterMark Certified and incorporates NSF 42 Certified components.
The system comes ready for installation, complete with its purification cartridges, high-quality housings, components and fittings.
System Only: Faucet not included. A compatible faucet must be selected separately.
PEACE OF MIND
Pressure Limiting Valve
The EcoHero purification system incorporates a precision-machined metal pressure limiting valve and dual check valve.
Designed to help protect against pressure spikes, prevent backflow and resist water hammer, this high-quality component provides additional protection for your water purification system.

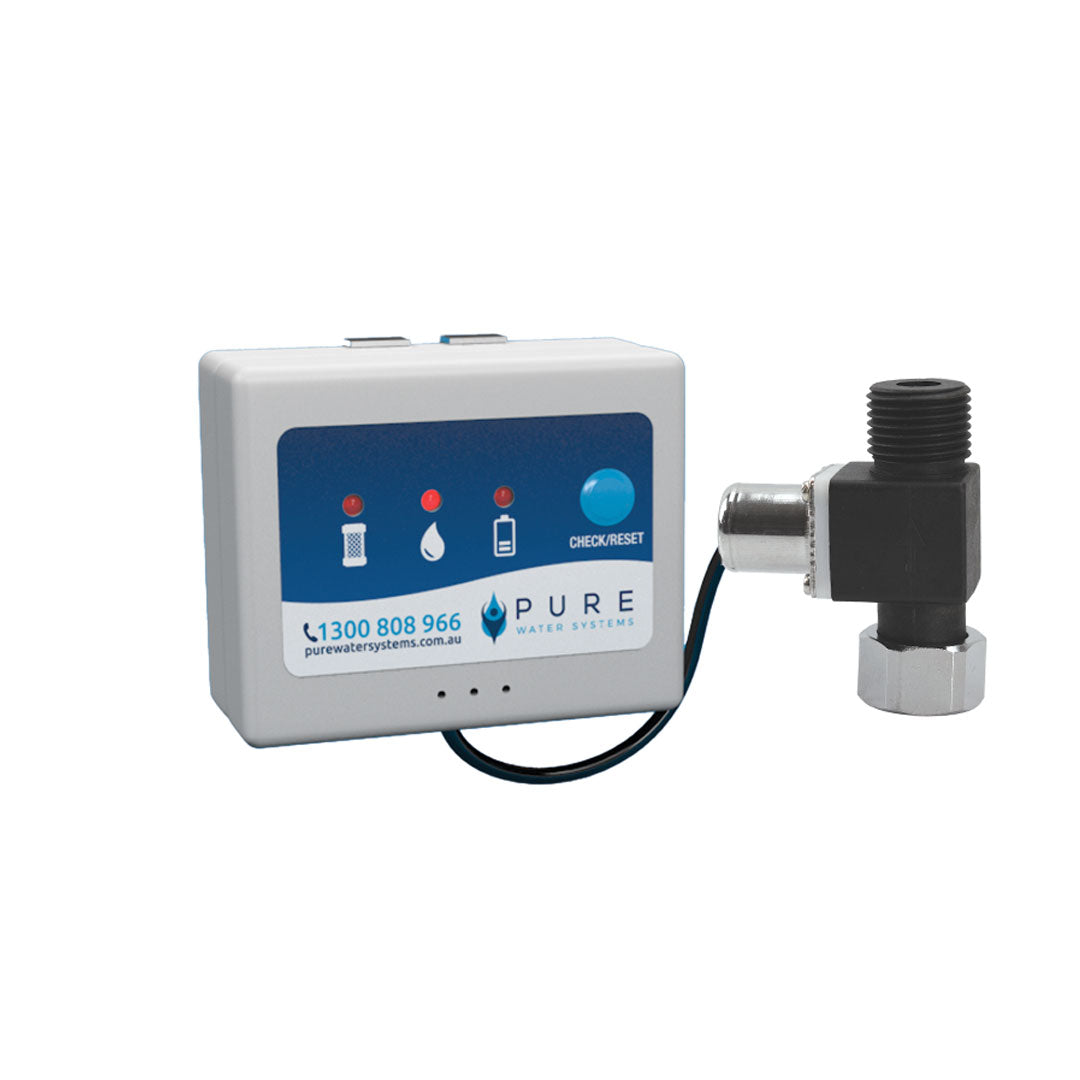

Cartridge Reminder & Leak Protection System
The EcoHero system also includes a Leak Protection System, designed to help protect your home against potential water damage.
If moisture is detected by the metal contacts on the control box, the system sounds an alarm and automatically isolates the water supply to the purification system.
The controller also features an integrated cartridge life monitor, providing a reminder when your filter cartridges are due for replacement.
For more information on how the Leak Protection System works, please click here.
FRESH, PURIFIED WATER ON DEMAND
Enjoy purified drinking water for everyday use, including drinking, cooking, washing fresh produce, preparing tea and coffee, filling pets' water bowls and more.
The EcoHero 5 Stage Reverse Osmosis Water Purifier is neatly installed beneath your kitchen sink, giving you advanced water purification without compromising your kitchen's appearance.
Complete your system by choosing your preferred faucet and adding the optional pH Neutraliser/Deodoriser Cartridge if desired.
Based on an inlet TDS of 100 ppm. Internally tested using Pure Water Systems 5 Stage Reverse Osmosis systems.
WaterMark Certification refers to the purification system. Please refer to individual faucet and 3-way mixer tap product information for their certification details.
For installation, servicing and maintenance guidelines in your local area, please check with your local water authority or relevant state plumbing regulations, as requirements vary between states and territories.
Specifications
ECOHERO 5 STAGE REVERSE OSMOSIS UNDER SINK
| System Dimensions (H x L x D) | 450mm x 385mm x 130mm |
| Tank Dimensions (H x D) | 360mm x 280mm |
| Flow Rate | 50 GDP (190 Litres/Day) |
| Min / Max Pressure | 415 - 690 KPa (60 - 100 psi) |
| Min/Max temperature | 5°C - 49°C |
| Waste Water Summary (Max Efficiency) | 1 Part Purified : 1 Part Waste* |
| Watermark Certification | Lead Free - AS 3497, Licence no. 040326 |
* EcoHero membrane test results provide a 50% recovery rate. Recovery rates will vary depending on inlet / holding tank pressure, water quality and the condition of the filters.
*WaterMark Certification refers to the system, please refer to individual faucet and 3 way mixer taps for certification details.
WATERMARK OFFICIAL NSF CERTIFIED CONTAMINANTS REDUCTIONS
| Arsenic | 88% |
| Hexavalent Chromium | 96.4% |
| Trivalent Chromium | 98.2% |
| Barium | 96.3% |
| Selenium | 97.9% |
| Copper | 98.5% |
| Fluoride | 93.6% |
| Turbidity | 99.1% |
| Cadmium | 99.1% |
| Lead | 98.6% |
| TDS | 90.8% |
TOTAL TDS REDUCTIONS PPM*
| Inlet TDS Reading | Post RO Membrane Reading | Post DI Cartridge |
| 96 PPM | 3 PPM | 0 PPM* |
* Based on In-house testing conducted 29/10/2018, results may vary dependant on water quality.
FILTER CARTRIDGES
| Position | Cartridge |
|---|---|
| Sediment Pre Filter | 1 Micron Polypropylene Spun Pre Filter (PWS-P1) |
| Carbon Pre Filter | 10 Micron Carbon Block (PWS-5+) |
| Carbon Post Filter | 5 Micron Encapsulated Granular Carbon Filter (GS10JJ) |
| Membrane | EcoHero 50 Membrane (PWS-MEM50) |
| Post Membrane | Deionising Cartridge (DI) |
CERTIFICATIONS
| EcoHero 5 Stage Reverse Osmosis System | AS/NZS 3497 |
| Filter Housing | NSF Standard 42 |
| EcoHero 50 Membrane | NSF/ANSI Standard 58 |
| Tube | NSF Standard 51, NSF Standard 61 |
| John Guest Fittings | NSF Standard 51, NSF Standard 61 |
| Holding Tank | NSF Standard 58 |
MATERIALS
| Housing | Food Grade Polypropylene |
| EcoHero 50 Membrane | Aromatic Polyamide, Thin layer Composite Membrane |
| Holding Tank | Stainless Steel, High-grade Chlorobutyl Diaphragm, Virgin Polypropylene Liner |
CLASSIC MIXER TAP SPECIFICATIONS
| STRAIGHT NECK 3 WAY MIXER TAP (F4) - Chrome | Click here |
| GOOSE NECK 3 WAY MIXER TAP (F5) - Chrome | Click here |
| LOW NECK 3 WAY MIXER TAP (F7) - Chrome | Click here |
SUPPLIED WITH
| EcoHero 5 Stage Water Filter system with mounting bracket | |||||
| Filter cartridges | |||||
| 12 Litre capacity Holding Tank | |||||
| Classic Mixer Tap | |||||
Australian approved standard cold water connection kit including:
|
