Product Description

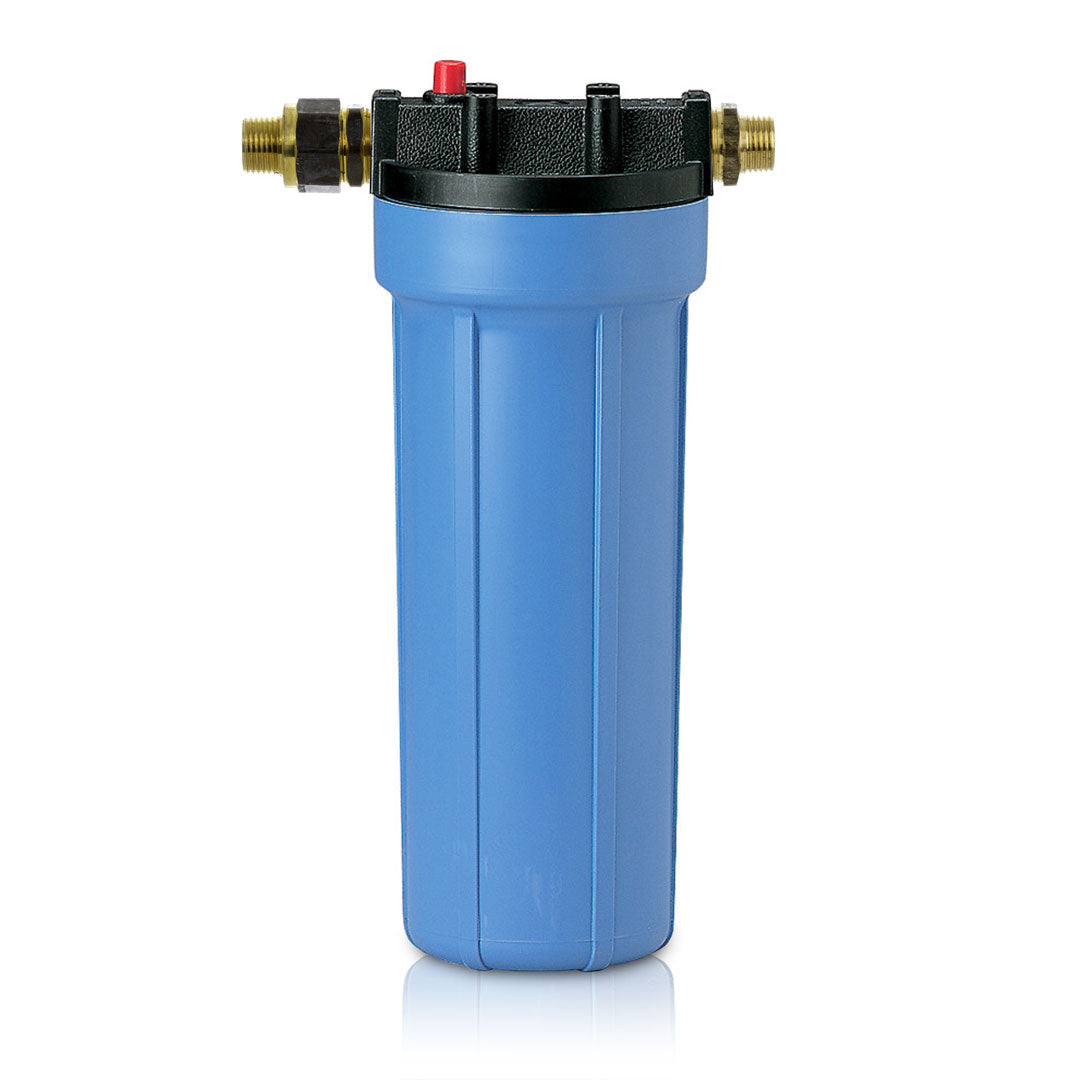

The Pure Water Systems INLINE1 is designed to be connected directly to the mains water line and used inline to a water bubbler.
The Bubbler Inline Filtration System utilises a granular activated carbon cartridge designed to assist in the reduction of disinfection products such as chlorine and any associated tastes and odours.
It is constructed using only the highest quality parts and fittings, sourced from the worlds most reputable manufacturers, and is available for use with both town and tank water supplies. The Bubbler Inline Filtration System ensures that the water received from your bubbler is not only chilled but great tasting and healthy.
Specifications
INLINE1 Specifications
Flow Rate | 3L/minute |
Feed Pressure | 30β100 PSI |
Feed Water Temperature | 5β51Β°C |
Dimensions (HxWxL) | 292mm x 110mm x 150mm |
Housing Specifications
Material | Food Grade Polypropylene |
Pressure Rating | 125 PSI |
Temperature Rating | < 51.7Β°C |
Supplied With
1x | Housing & Base |
1x | Single Bracket |
1x | 1 Granular Activated Carbon Filter |
2x | Poly Reducing Bushes |
1x | Brass Pressure Limiting Valve |
6x | Pan Screw |
1x | Ball Valve |
1x | O`Ring |
1x | 450mm Flexi Hose |
1x | Brass Hex Nipple |
1x | Installation Instructions |
