Product Description

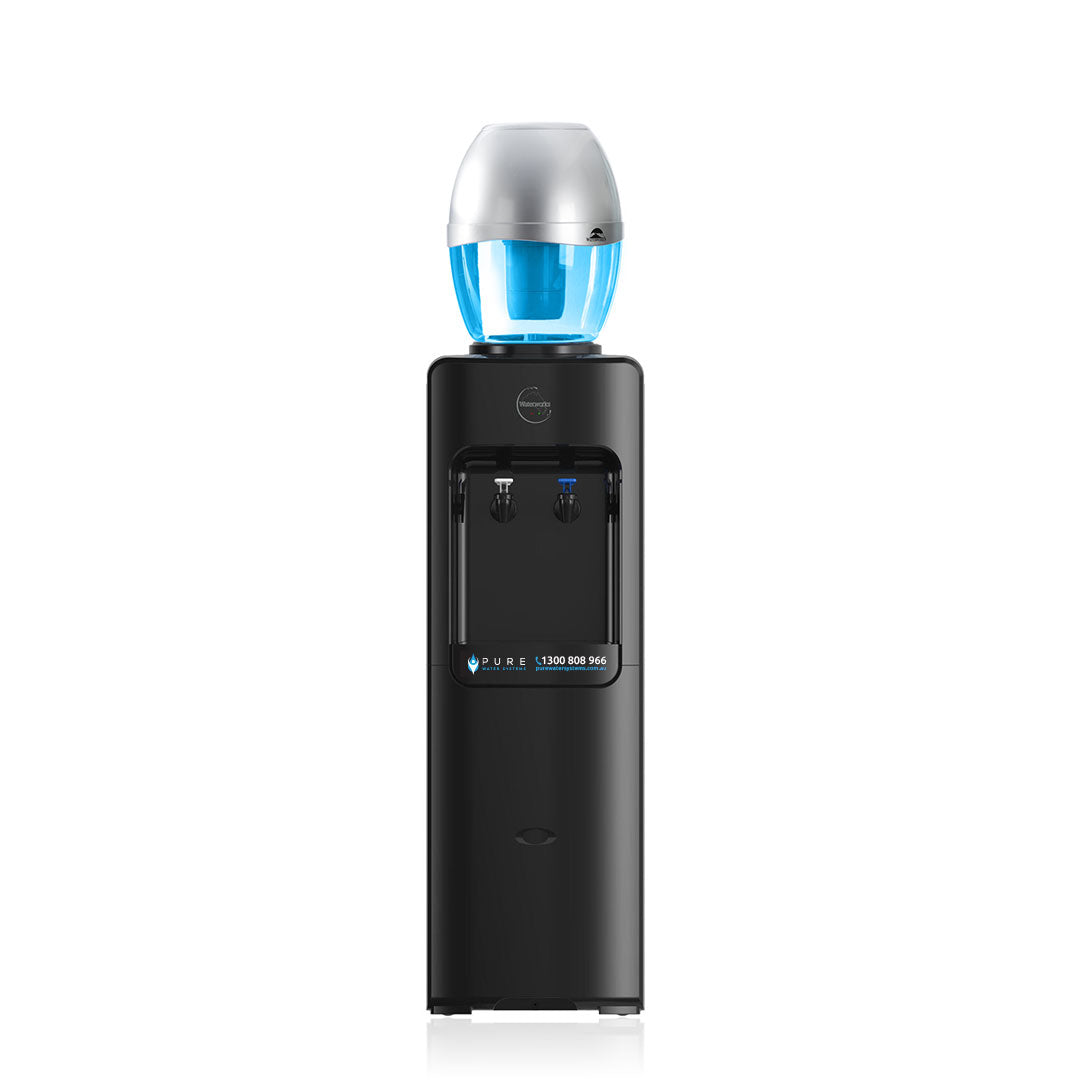

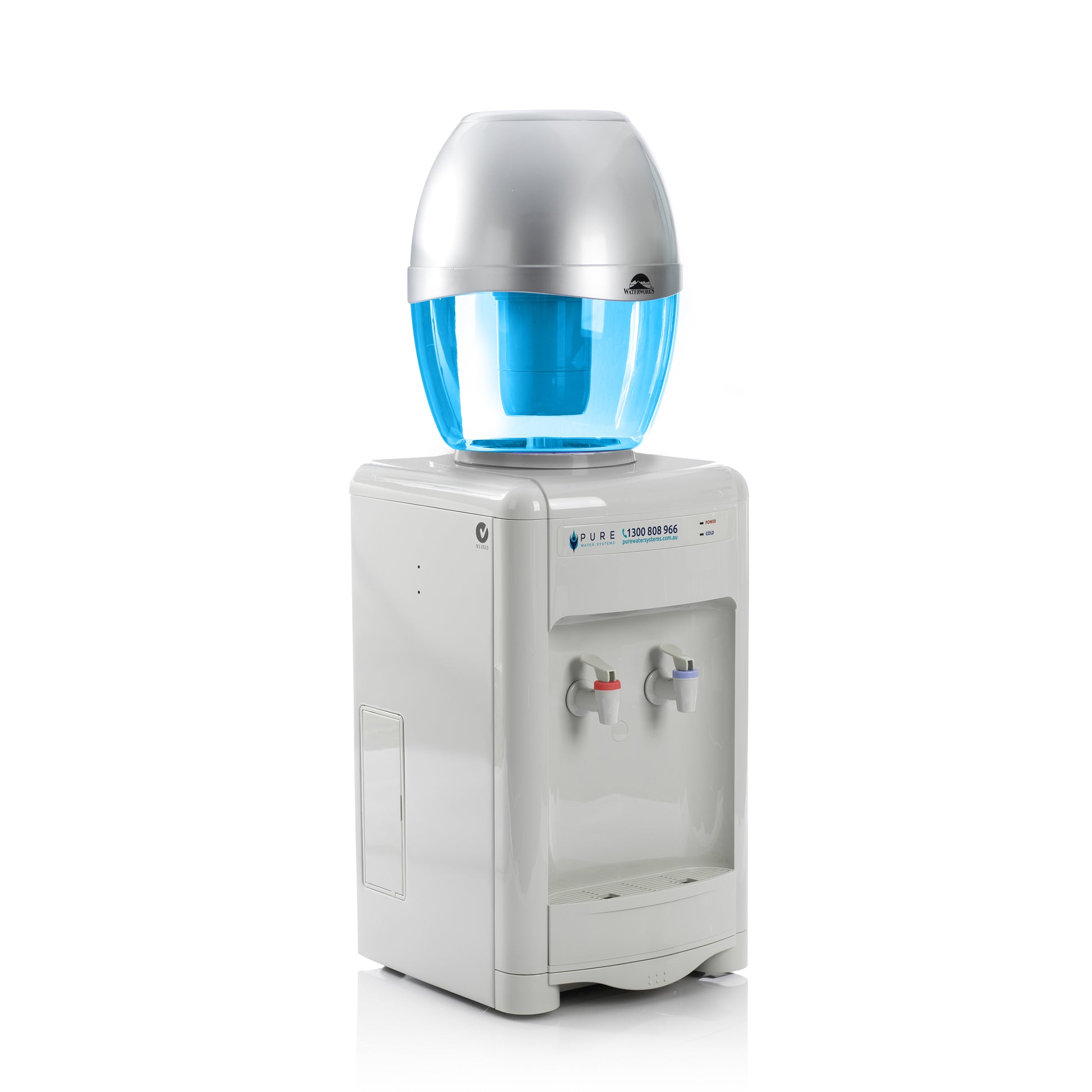

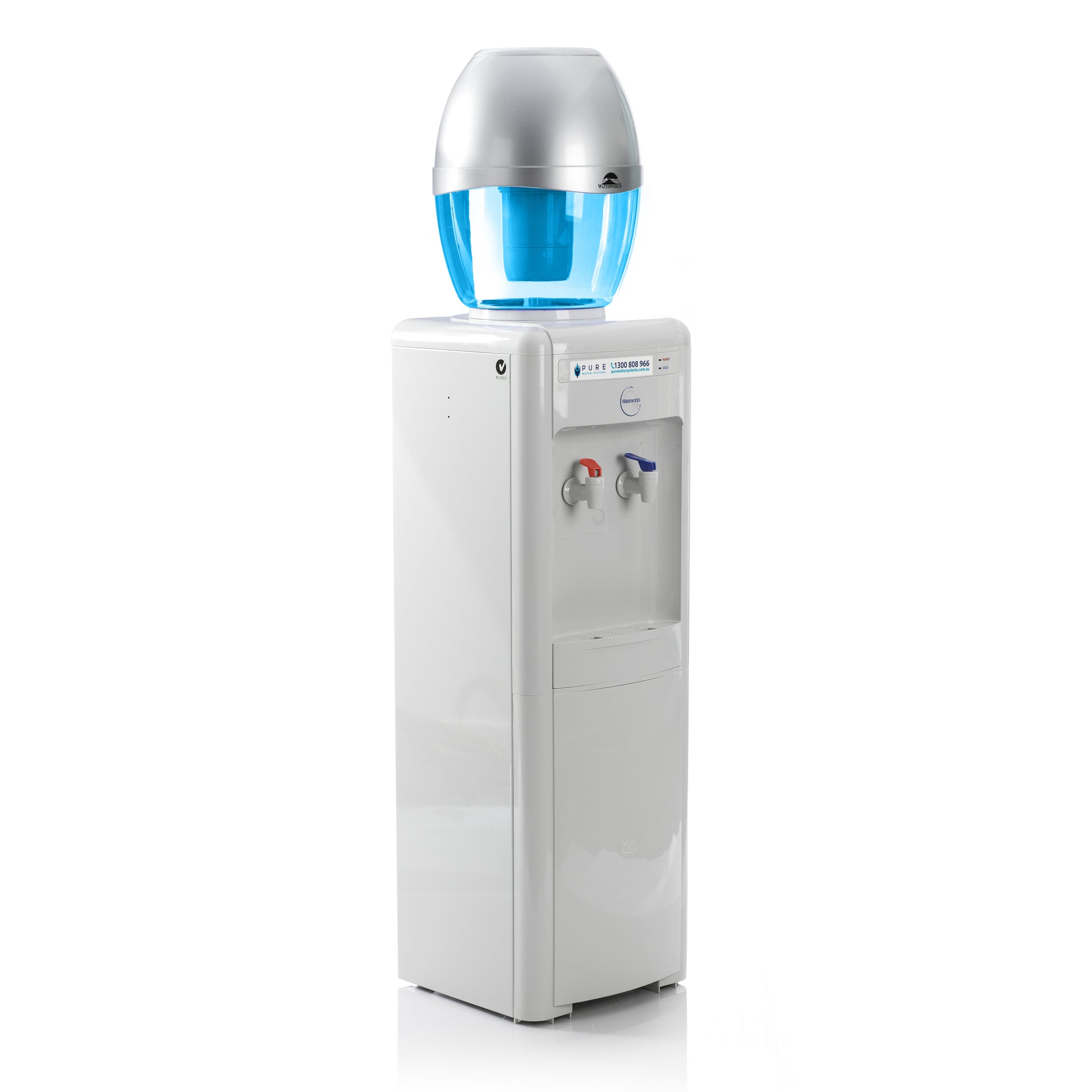

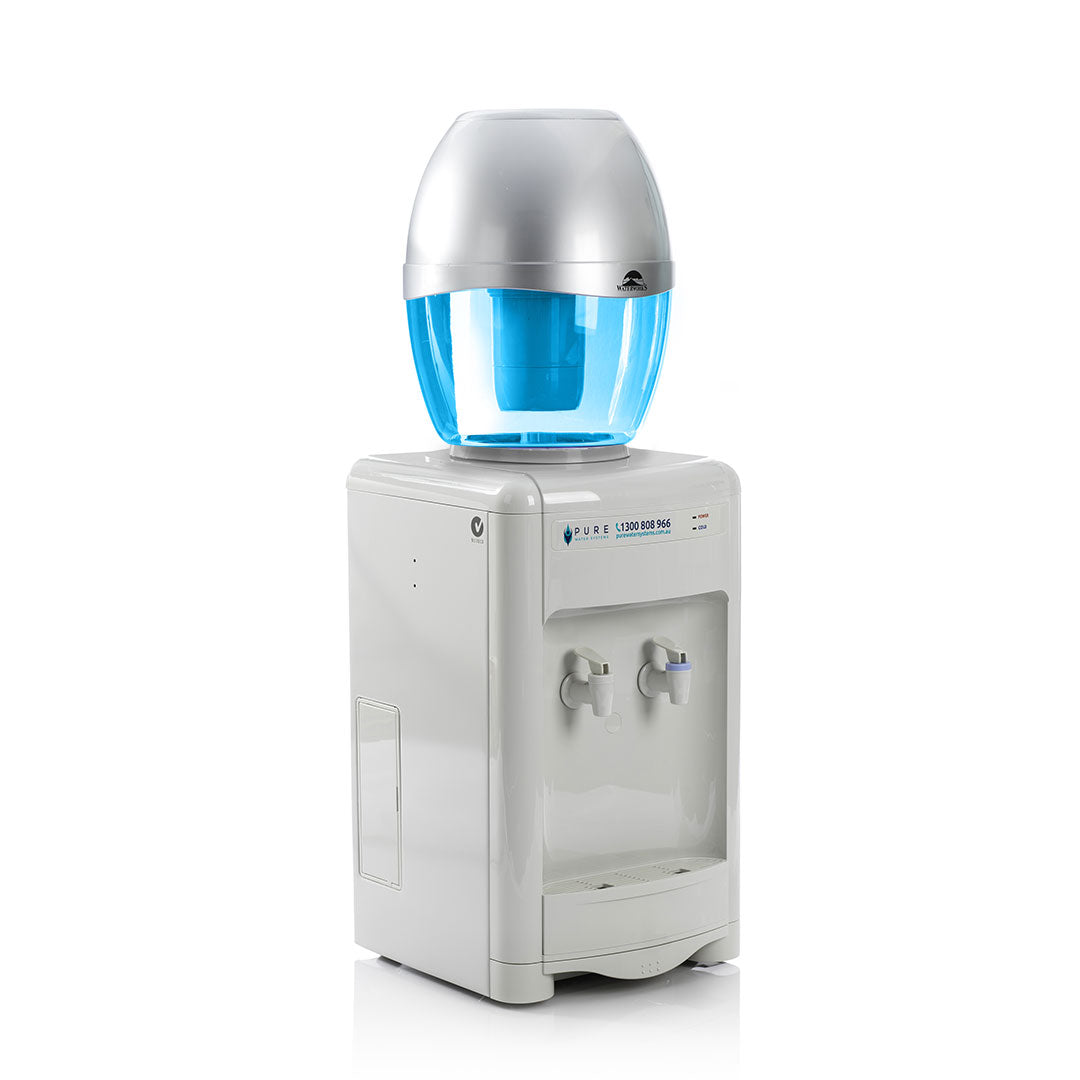

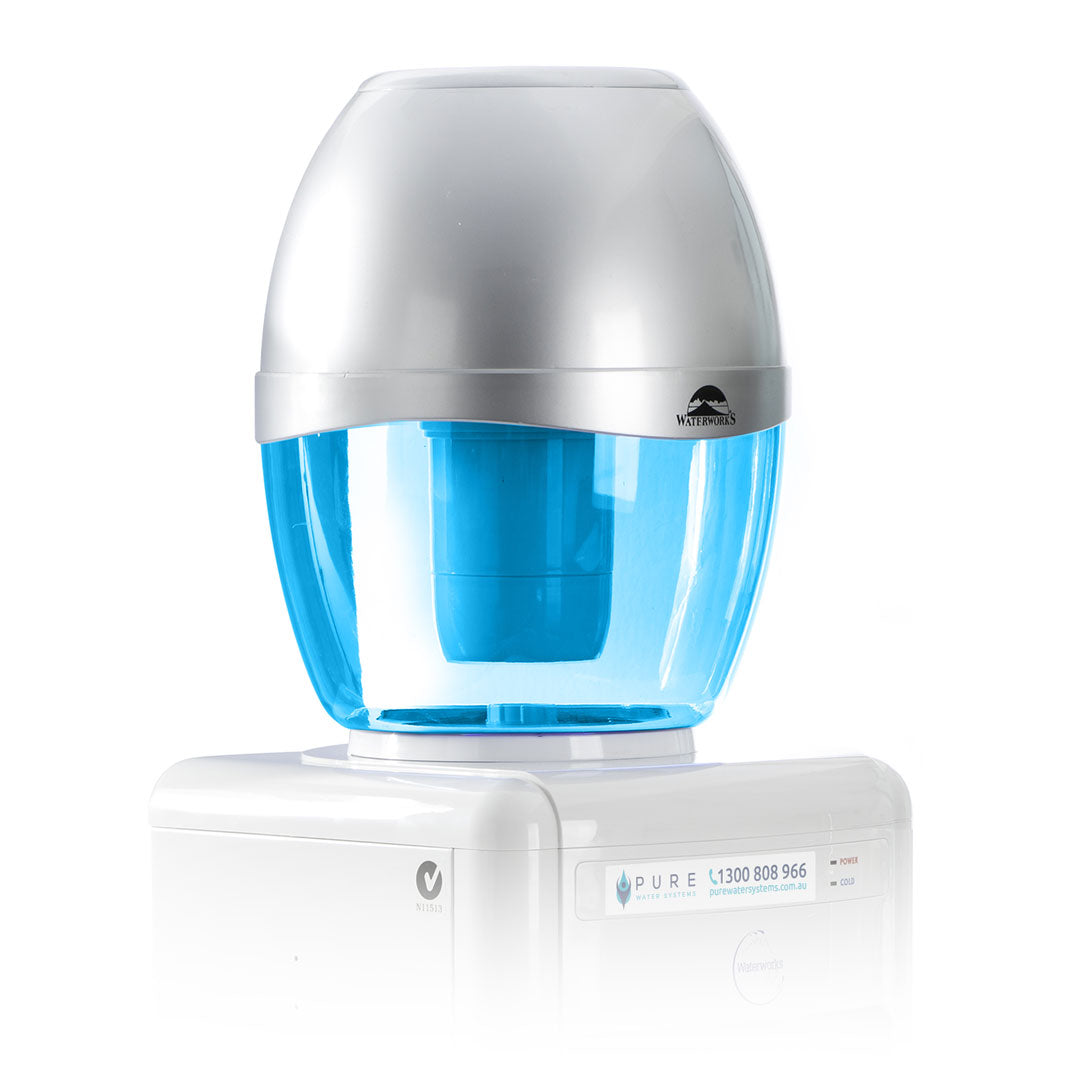

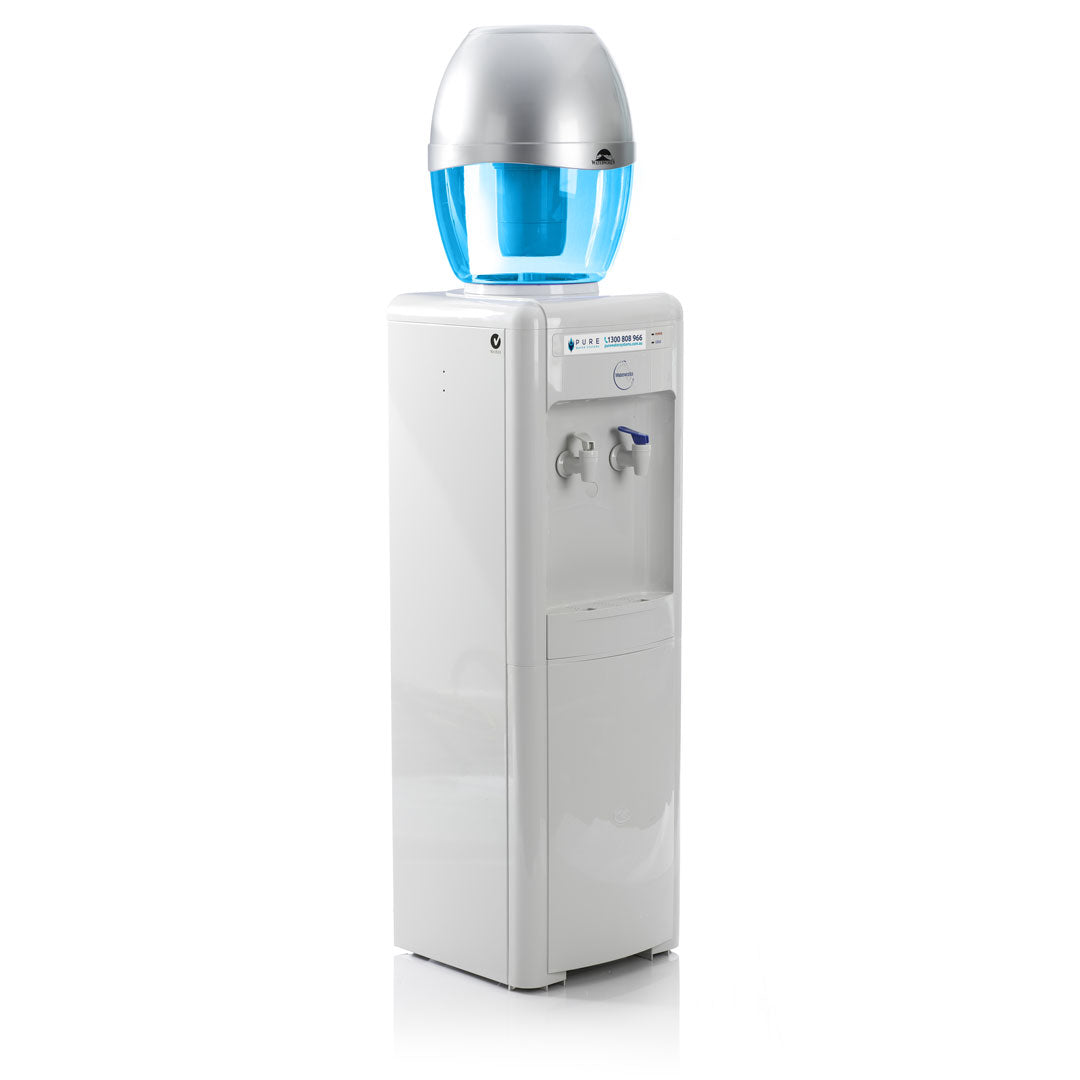

The Easy-Fill Water Cooler Bottle is the perfect partner for all Pure Water Systems Bottled Water Coolers.
This filter bottle unit is a cost-effective alternative to buying bottled water for the home or office, with no heavy lifting required. Simply fill with tap water for fresh, filtered, cold water on demand through your Water Cooler. The 3-stage media within the Easy-Fill Bottle utilises resin, activated carbon and a ceramic disc to greatly reduce bad taste and odour, providing fresh, great tasting water on demand. The filter cartridge is certified for approximately 4000L or 6 months, whichever comes first.
Combining a stylish design with durability, the βcloud whiteβ cabinets are a combination of high impact ABS plastics and powder-coated steel. Also available in βgloss blackβ, all surfaces are easy to clean and provide superior resistance to UV light. Our cooler range also comes with a removable drip tray for easy cleaning and maintenance.
Specifications
Cooler Specifications
Cooler Dimensions (H x W x L) | 1305mm x 310mm x 310mm |
Half Size Cooler | 534mm x 310mm x 310mm |
Filter Size (D x L) | 112mm x 190mm |
Easy-Fill Bottle Dimensions | (H x Dia.) 450mm* x 285mm |
Total Capacity | 11L (Bottle = 7L / Cold Tank = 4L) |
Operating Temperature | 5 β 38Β°C |
Flow Rate | 8L / Hour |
*With the float valve on the bottom
APPROXIMATE WATER TEMPERATURE OUTPUT
Tap | Approx. Temp. |
---|---|
Cold | Approx. 4 - 8Β°C |
Cool | Room Temperature |
Hot Tap | Approx. 84-87Β°C |
* Output temperature may vary depending on room temperature where the Cooler is installed and thermostat temperature set.
CAPACITY
Room Temp Β°C | 21 | 27 | 32 |
150ml Cups / Hour 10Β°C | 44 | 32 | 18 |
Litres / Hour 10Β°C | 6.6 | 4.8 | 2.7 |
Hot Water Delivery | 45 x 170ml Cups / Hour |
*Intermittent use only, continuous use will result in reduced performance.
MATERIAL
Cold Water Reservoir | Stainless steel |
Cabinet | UV treated ABS plastic |
Side Panels | Zinc-coated steel, high polymer polyester |
15 L Bottle | Polycarbonate |
Taps | NSF approved polypropylene |
