Product Description
The Pure Water Systems Single Under Sink Water Filter System is a highly efficient submicron filtered water solution, perfect for your home or office. Available in a tank water option, and can be neatly plumbed under your sink to reduce kitchen bench top clutter. Options in this bundle include a Premium Mixer Tap which is installed over the sink for great tasting, fresh filtered water at your fingertips. These systems are also ideal for installing inline to a water chiller.
Naturally occurring contaminants (such as parasites and bacteria) and disinfection products used by Australian water authorities (such as chlorine and aluminium sulphate) can be found in our everyday tap water. Some harmful parasites like giardia and cryptosporidium cysts can even survive the disinfection processes, and potentially cause severe illness.
The Pure Water Systems filtration system incorporates a precision machined, full metal construction pressure limiting valve and dual check valve, providing protection from pressure spikes, preventing backflow, and resisting water hammer. Whilst this is a requirement under Australian Standards, we have chosen this valve as it is ultra-reliable and performs to the highest standard, giving you peace of mind that your system is protected.

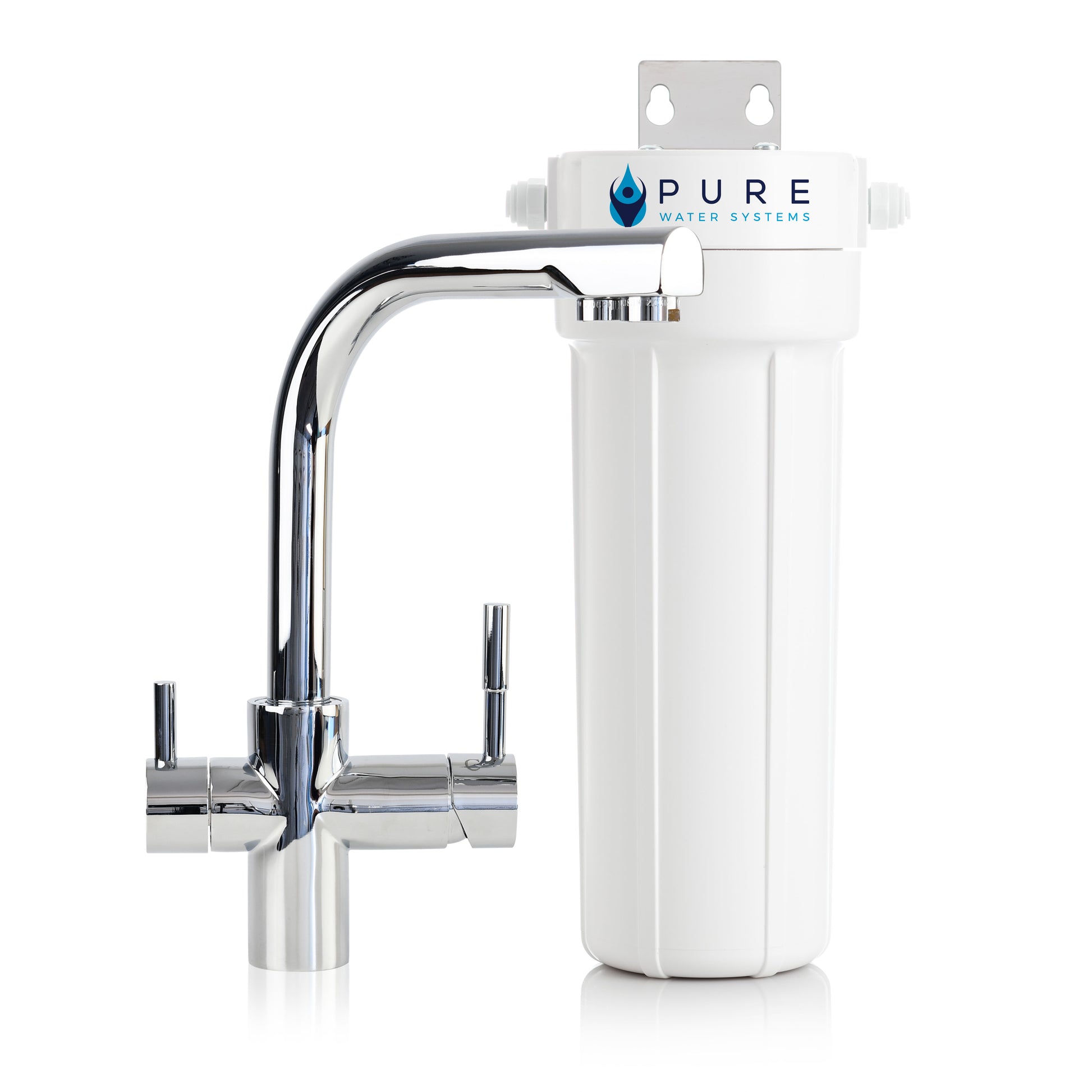

Tank Water Single Under Sink Filter System:
The Single Under Sink Filter System for tank water utilises the 3 stage ceramic Doulton Ultracarb cartridge to immediately improve the taste and quality of your tap water. The submicron Doulton Ultracarb cartridge is formulation tested to remove 99.99% of bacteria, parasites and particles such as potentially harmful pathogenic organisms like giardia, cryptosporidium, e-coli, cholera, typhoid, kiebsiella terrigena and shigella.*
Because the Doulton Ultracarb’s outer ceramic surface is designed to catch and filter a large range of contaminants such as sediment, dirt and parasite cysts (like giardia and cryptosporidium), this may cause the cartridge’s flow to reduce over time. The Doulton Ultracarb can be conveniently restored to its normal flow level during its 12-month period of use with a little DIY maintenance. Simply remove the ceramic cartridge from its housing and gently scrub clean with a brush or a lightly abrasive pad for an extended life and improved flow.
PEACE OF MIND

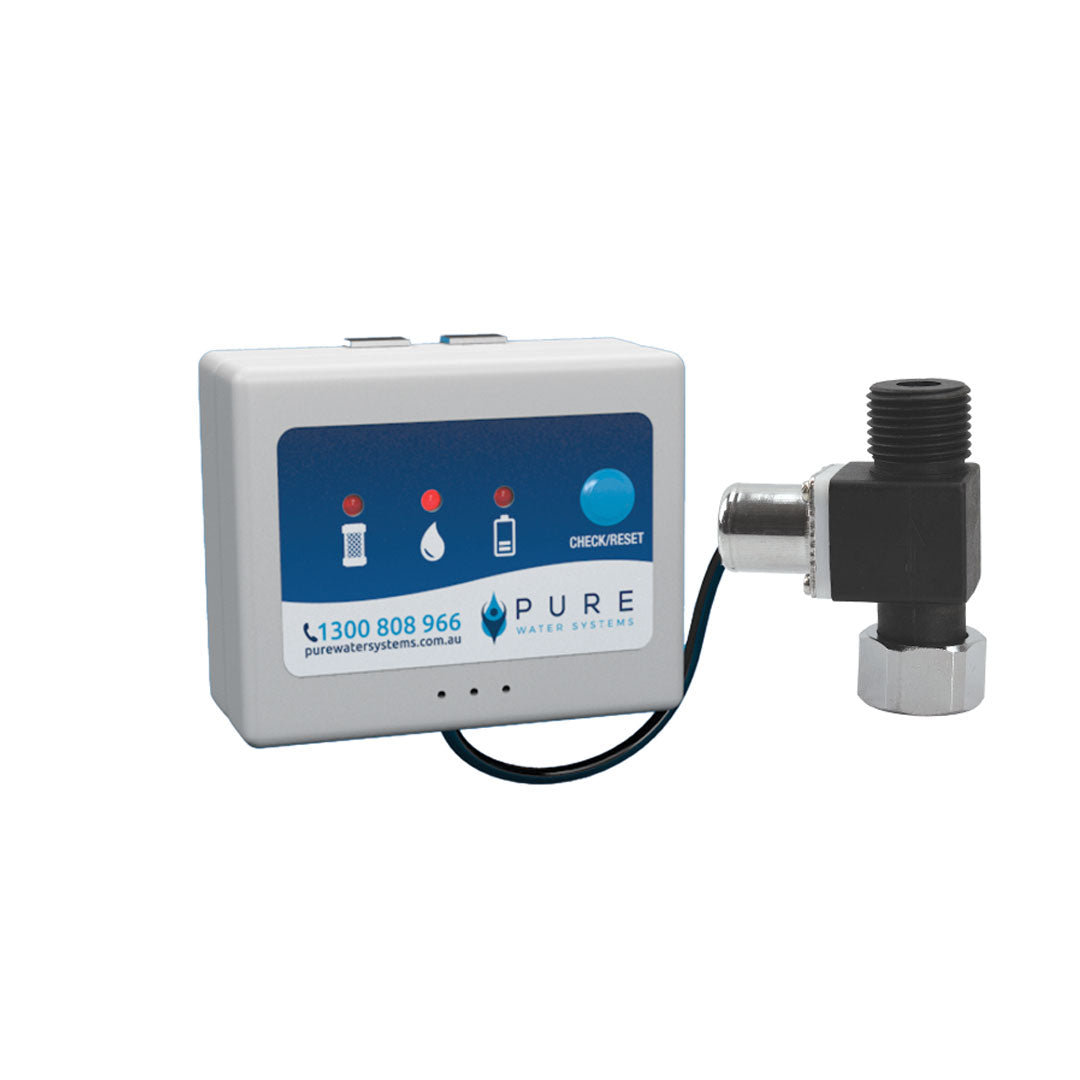

This system includes a Leak Protection System which is your best defence against water damage in the unlikely event of a leak from appliances.
Designed to detect moisture using metal contacts on the control box, it sounds an alarm and isolates the water supply to the water filtration system if a leak is detected, giving you peace of mind that your home and your water filtration system are protected from potential water damage.
This unit also has an inbuilt cartridge life monitor that indicates when the filter cartridge is due to be changed.
Click for more information on how Leak Protection System works.
Out tank water Single Under Sink Water Filter Systems are Lead Free Watermark Certified and have NSF Certified components. These systems come ready to install by a licensed plumber, complete with your submicron cartridge, high-quality housing, parts, fittings and a classic Mixer Tap in chrome.
PREMIUM MIXER TAP OPTIONS:

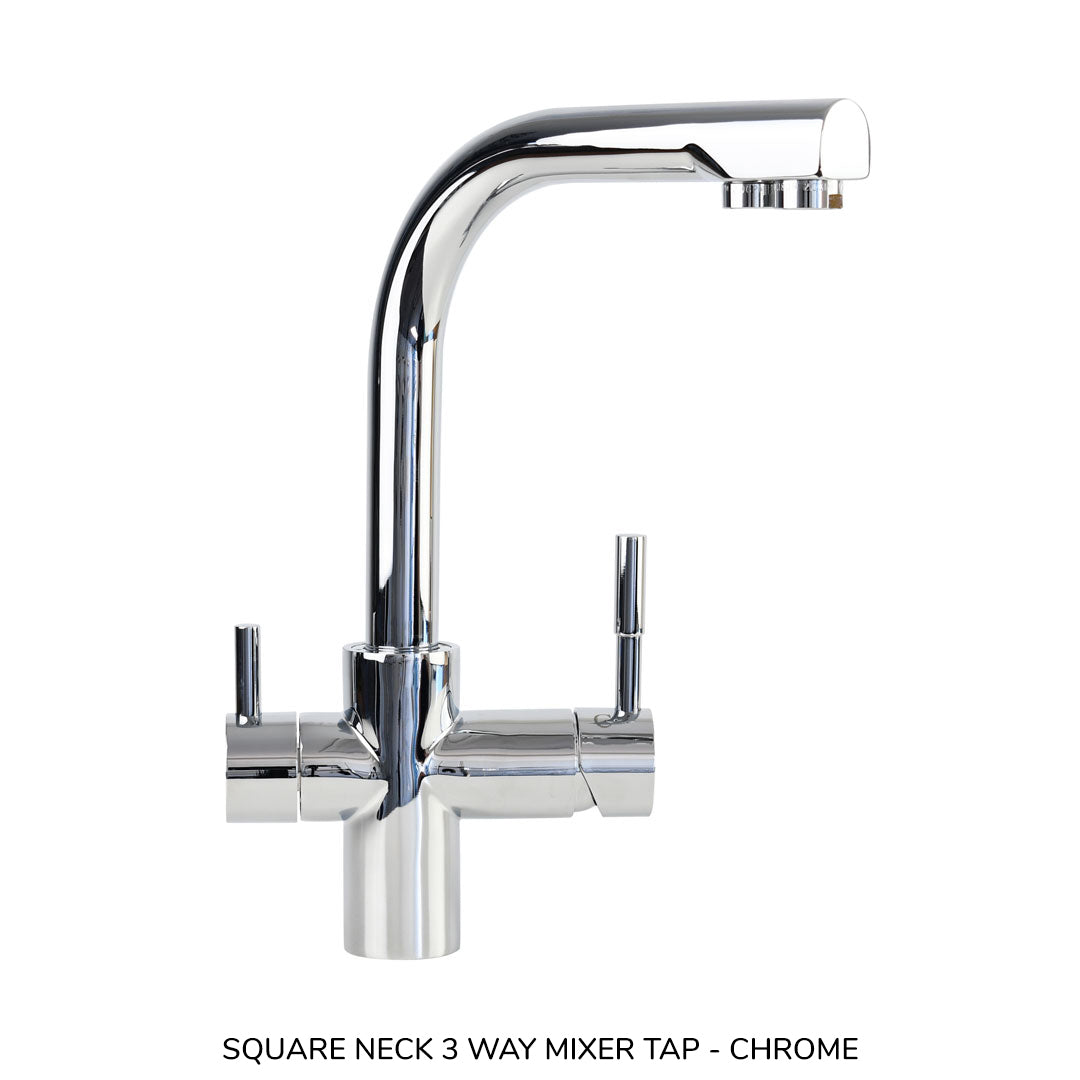

Square Neck 3 Way Mixer Tap (F6) – Chrome
- Minimalist square neck design with stylish all-over chrome finish

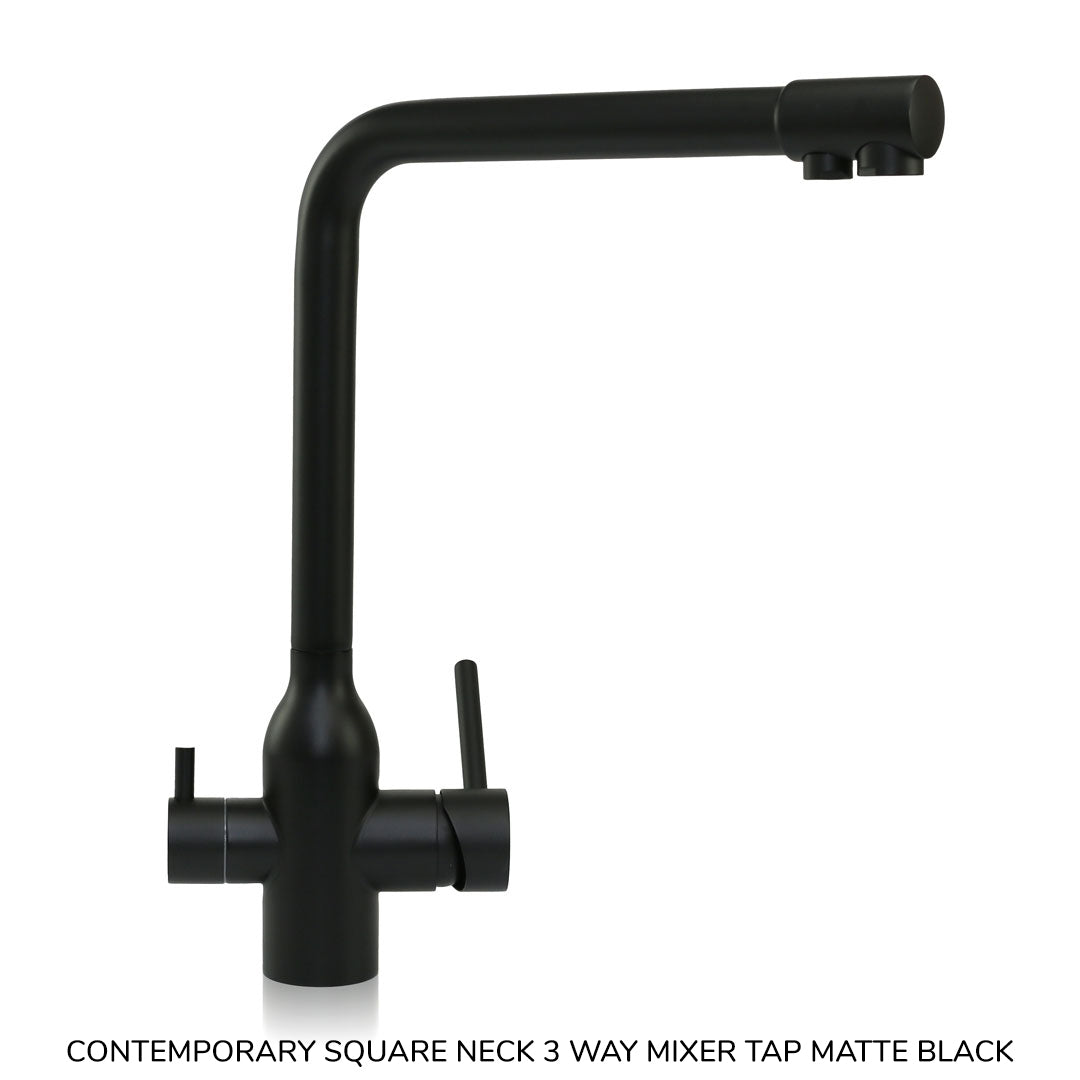

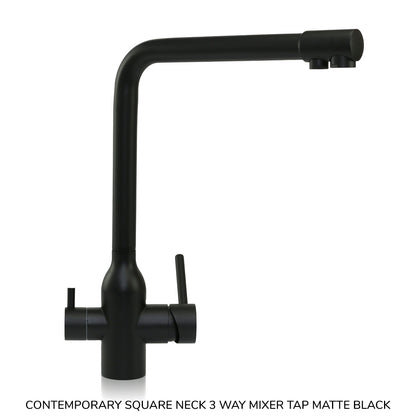

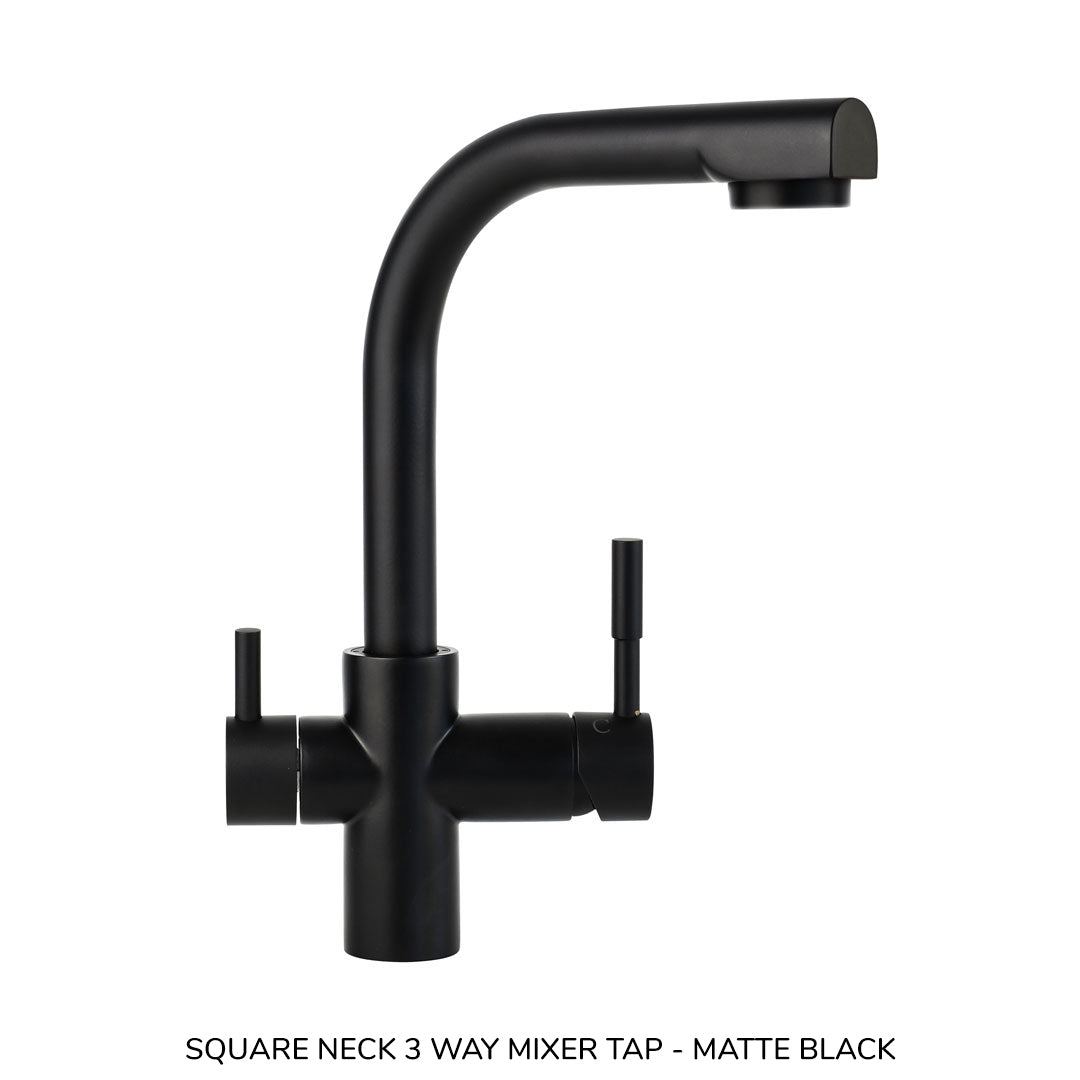

Square Neck 3 Way Mixer Tap (F6) – Matte Black
- Minimalist square neck design with stylish all-over matte black finish

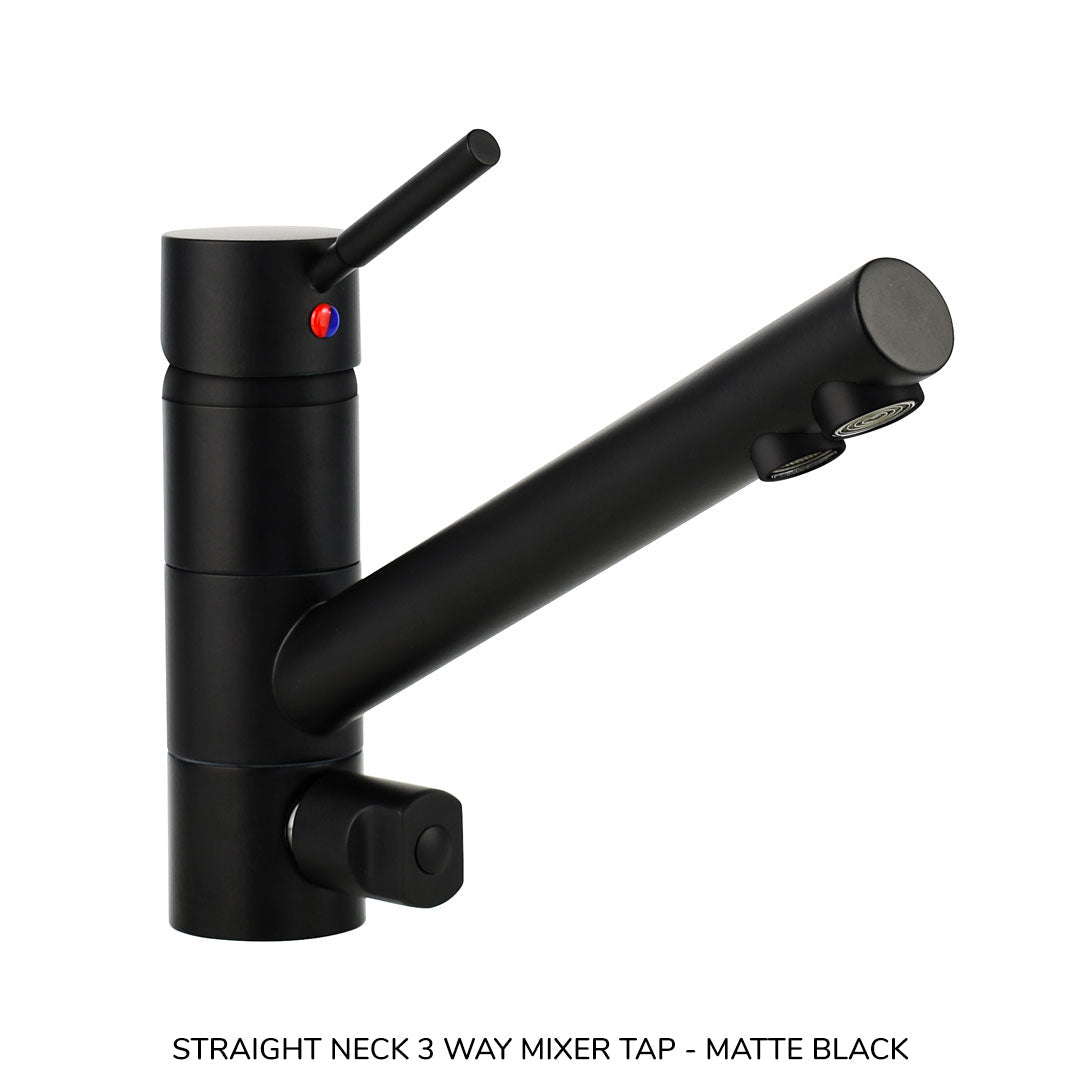

Straight Neck 3 Way Mixer Tap (F4) - Matte Black
- Modern design with all-over matte black finish

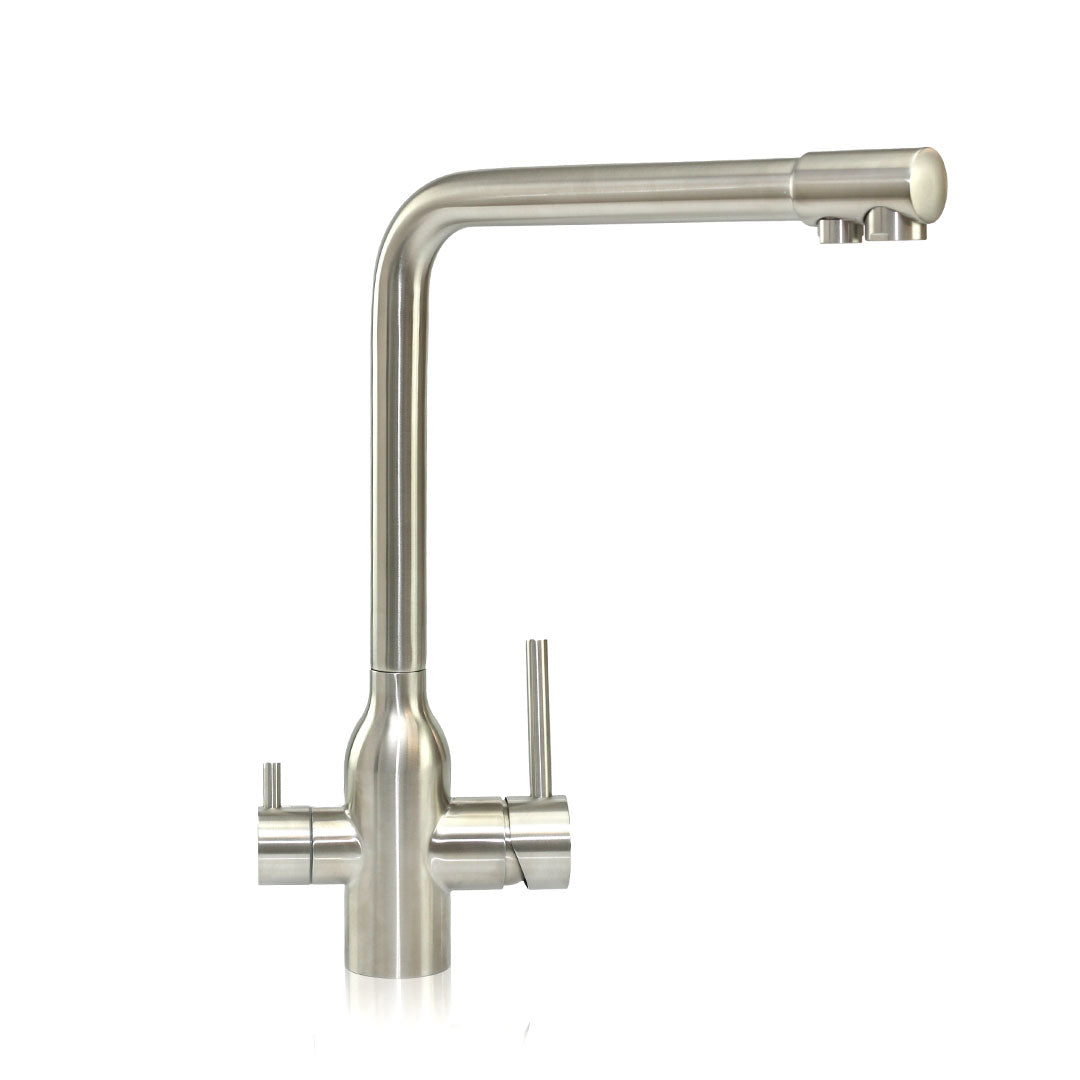

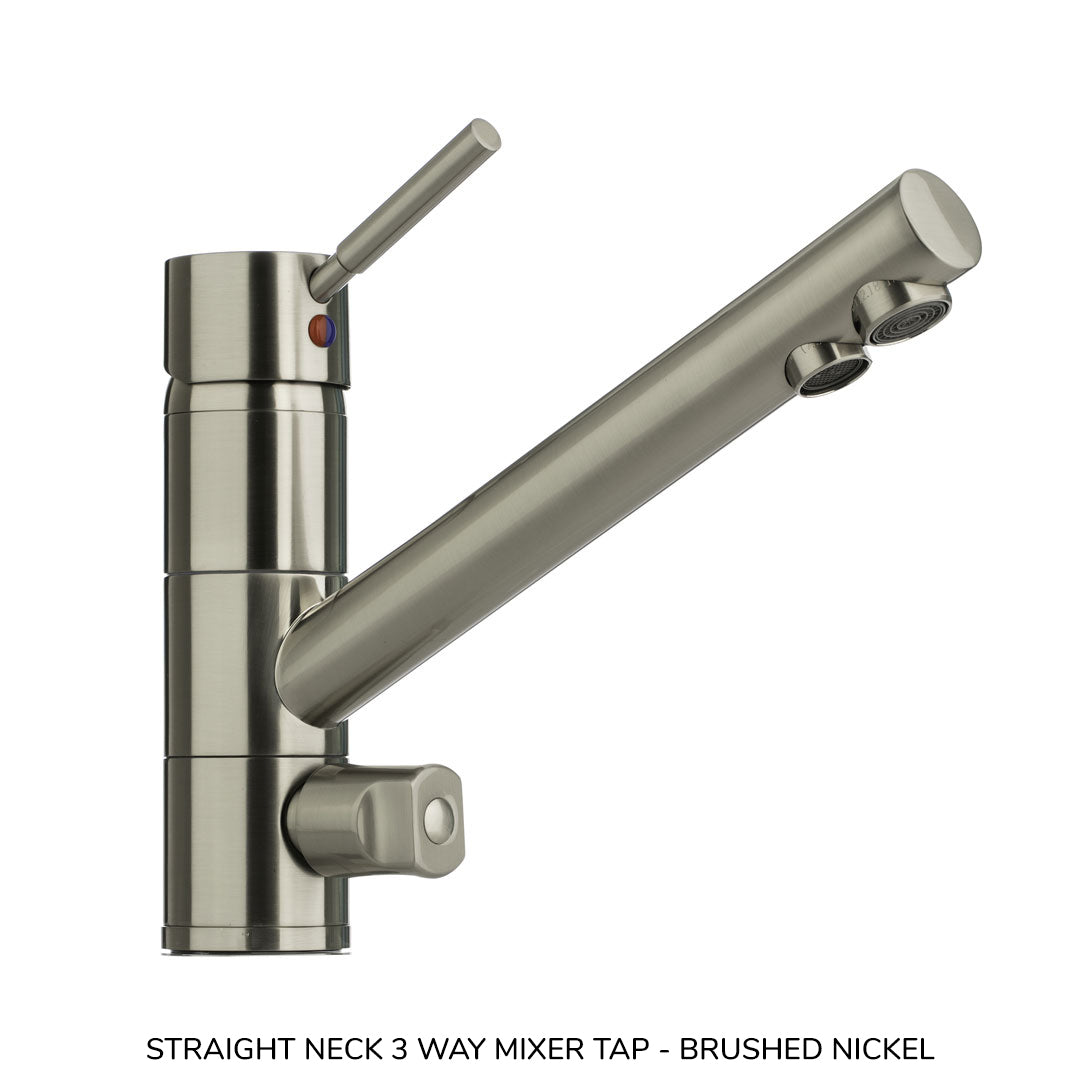

Straight Neck 3 Way Mixer Tap (F4) - Brushed Chrome
- Modern design with all-over brushed chrome finish

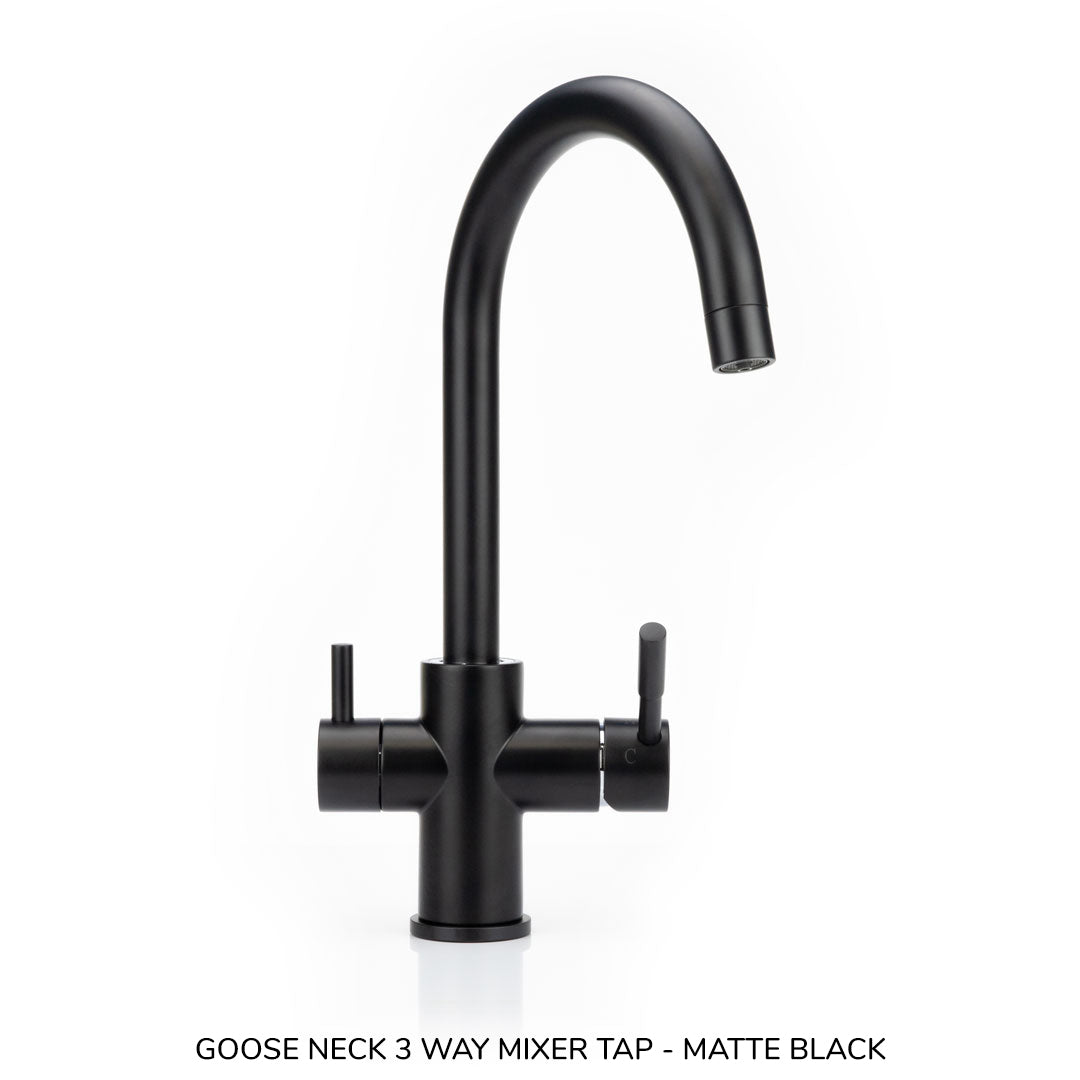

Goose Neck 3 Way Mixer Tap (F5) - Matte Black
- Stylish design with all-over matte black finish
For installation, servicing and maintenance guidelines in your local area, please check with your local water authority or state plumbing regulations as they vary between states and territories.
Specifications
SINGLE UNDER SINK SPECIFICATIONS
| Flow Rate | 3 Litres / Minute |
| Feed Pressure | 30 - 100 PSI |
| Min / Max Water Temperature | 4.4 - 38°C |
| Dimensions (H x L x D) | 330mm x 145mm x 115mm |
| WaterMark Certification | Lead Free - AS 3497, Licence no. 040326 |
Note: *WaterMark Certification refers to the system, please refer to individual faucet and 3 way mixer taps for certification details.
TANK WATER CARTRIDGE SPECIFICATIONS
| Flow Rate | 1.9 Litres / Minute |
| Min/Max Pressure | Min - 30 PSI - Max - 125 PSI (we recommend a minimum of 60 PSI) |
| Min/Max Temperature | 5°C - 30°C |
| Product Dimensions (L x D) | 248mm x 67mm |
| Micron Rating | Submicron |
| Material | Ceramic outer shell, Carbon block, Ion exchange resin |
*Doulton Ultracarb Cartridge is not recommended for gravity tank systems. Please contact our Product Specialists on 1300 808 966 for alternative options.
HOUSING SPECIFICATIONS
| Max Pressure | 125 PSI |
| Temperature Rating | < 51.7°C |
| Housing Dimensions | 290mm x 114mm x 111mm |
| Min / Max Temperature | 4.4 - 51.7°C |
| Material | Food Grade Polypropylene, EPDM O-Ring |
| Inlet / Outlet | ¼" NPT |
Premium Mixer Tap Specification

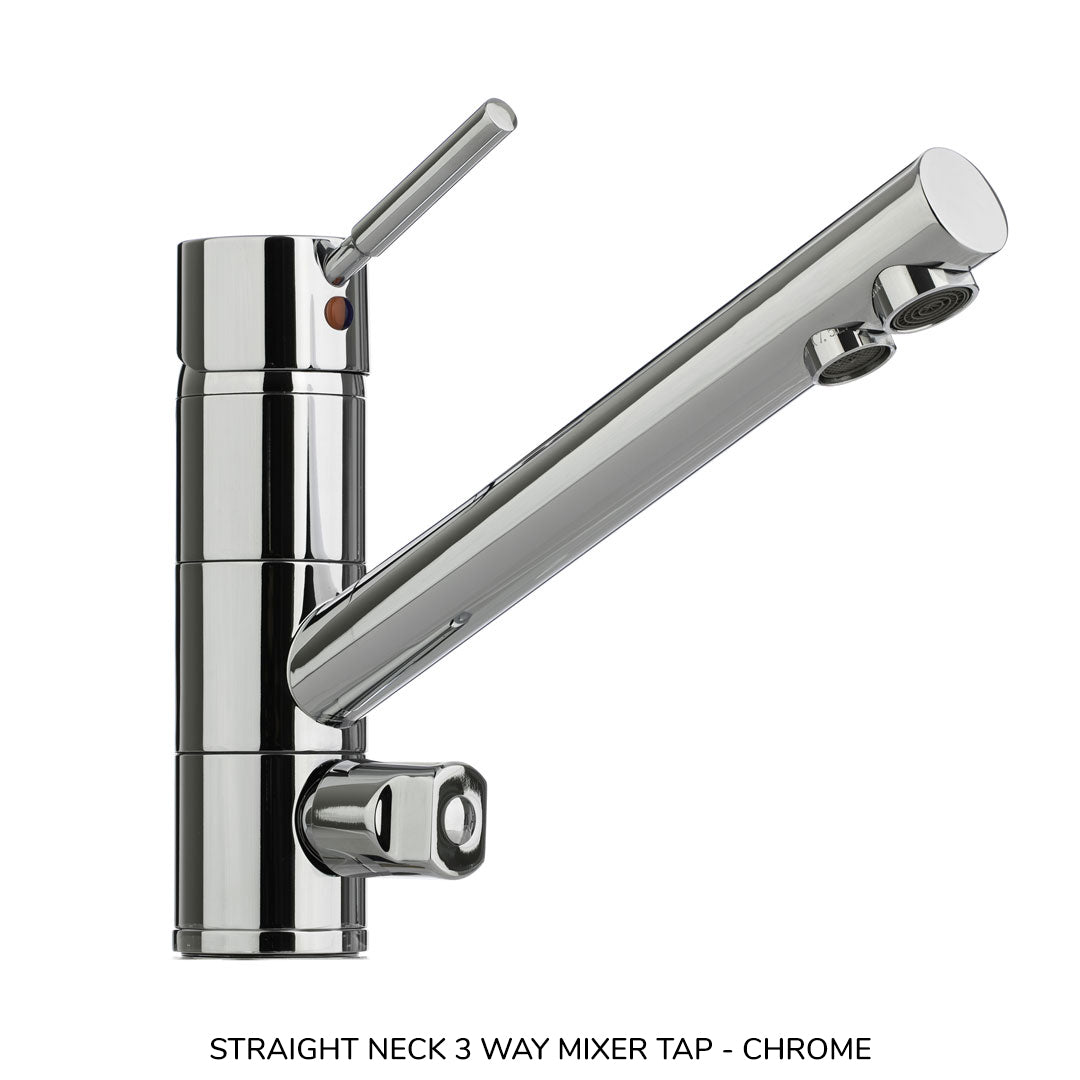

| STRAIGHT NECK 3 WAY MIXER TAP (F4) - Chrome | View product here |
| STRAIGHT NECK 3 WAY MIXER TAP (F4) - Matt Black | View product here |
| SQUARE NECK 3 WAY MIXER TAP (F6) - Chrome | View product here |
| SQUARE NECK 3 WAY MIXER TAP (F6) - Matt Black | View product here |
SUPPLIED WITH
| Single filter housing with mounting bracket | ||||
| Filter cartridge | ||||
| Premium Mixer Tap | ||||
Australian approved standard cold water connection kit including:
|
