Product Description

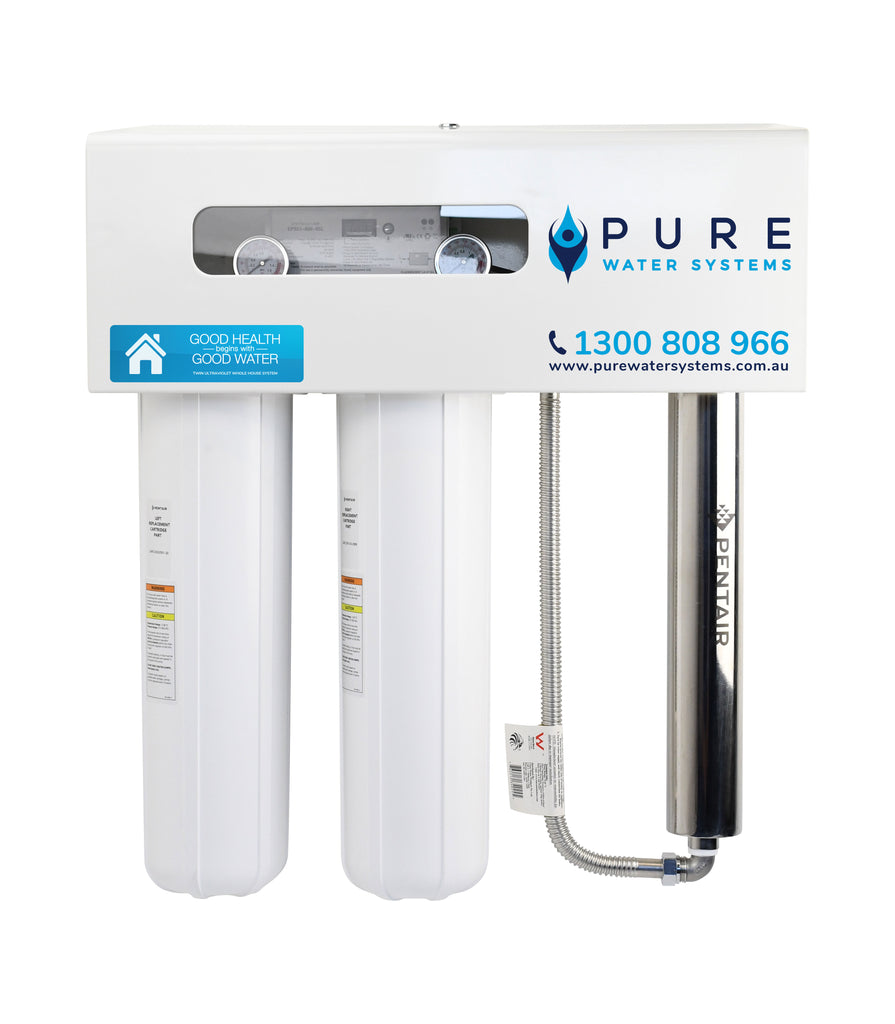

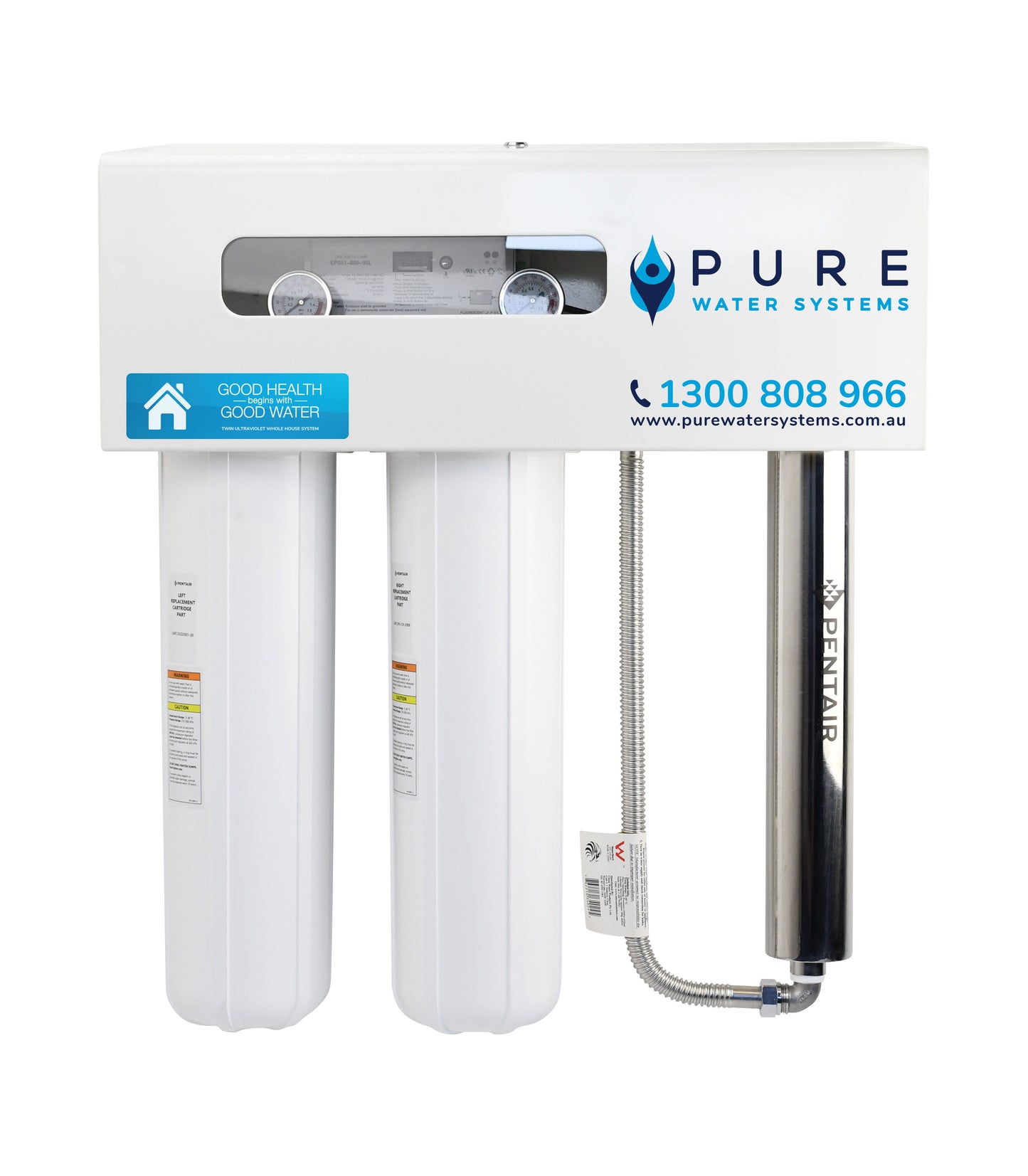

The Pure Water Systems Twin UV Whole House System pre-filters your water by passing it through two stages of filtration before passing through the ultraviolet lamp to provide clean, fresh water for your whole house.
The first stage of filtration is the Dual Gradient Cartridge which filters from 50 micron on the outside and down to 5 micron on the inside to prevent blocking of the cartridge whilst providing a superior level of filtration. It is constructed out of 100% polypropylene and is made with a large diameter, allowing it to work at higher velocities and remove more particulates from your water.
The second stage of filtration is the Diamond Flow Carbon Block Cartridge which utilises a dual filtration design which incorporates both a polyspun polypropylene outer layer and carbon block technology on the inside to reduce chlorine, taste and odour whilst also capturing higher levels of finer dirt and particulate which reduces clogging of the cartridge.
The third and final stage of the filtration process is the ultraviolet radiation, where the UV System is certified to remove 99.9999% bacteria, including E-coli and parasites.
What is Ultraviolet Radiation?
Ultraviolet (UV) lamps expose living micro organisms like bacteria, viruses and cysts to UV light. When the micro organisms in your water meet the UV light, they are hit with enough energy to interrupt their cellular function, which then prevents them from reproducing and spreading diseases in your water.
Pure Water Systems prides itself on ensuring that every customer receives a product that they can be confident in purchasing. Therefore, to ensure that you receive a system that suits your needs, we recommend that you contact one of our friendly team to discuss the best product to suit your individual needs.
Do I also need a drinking water system?
It is highly recommended to install a point-of-use (under sink) water filtration or purification system in your kitchen in addition to a whole house system as other contaminants, like fluoride, can still be present in your water. In addition to this, whole house systems are designed to remove chlorine and other chemicals from all water entering your home, meaning that water after this point can become stagnant if it is sitting too long and increase the risk of contaminants being reintroduced into the water. This is why we suggest bundling your whole house system with a drinking water system to ensure you have the cleanest water possible.
How to choose the right whole house system for you and your family?
At Pure Water Systems we are experts in water filtration, please phone our friendly product experts on 1300 808 966 or send complete the form below and one of our team will be in contact with a quote.
For installation, servicing and maintenance guidelines in your local area, please check with your local water authority or state plumbing regulations as they vary between states and territories.
Specifications
UV WHOLE HOUSE SPECIFICATIONS
| System Dimensions (H x W x L) | 673mm x 218mm x 769mm |
| Max Pressure | 350 kPa (50psi) |
MATERIAL
| Protection Cover | Powder coated steel |
| Housing | Polypropylene |
| UV Lamp Quartz | Quartz thimble and stainless steel chamber |
SPECIFICATIONS
| Flow Rate | 75 L / Minute |
| Min / Max Pressure | 210 - 500 kPa (30 - 73 psi) |
| Min / Max Temperature | 5 - 38°C |
| Certification | NSF 42 & 53 Certified |
MICRON RATING
| P50/05BB-20 | 50 / 05 Micron |
| DFX-CB-20BB | 10 Micron |
