Product Description

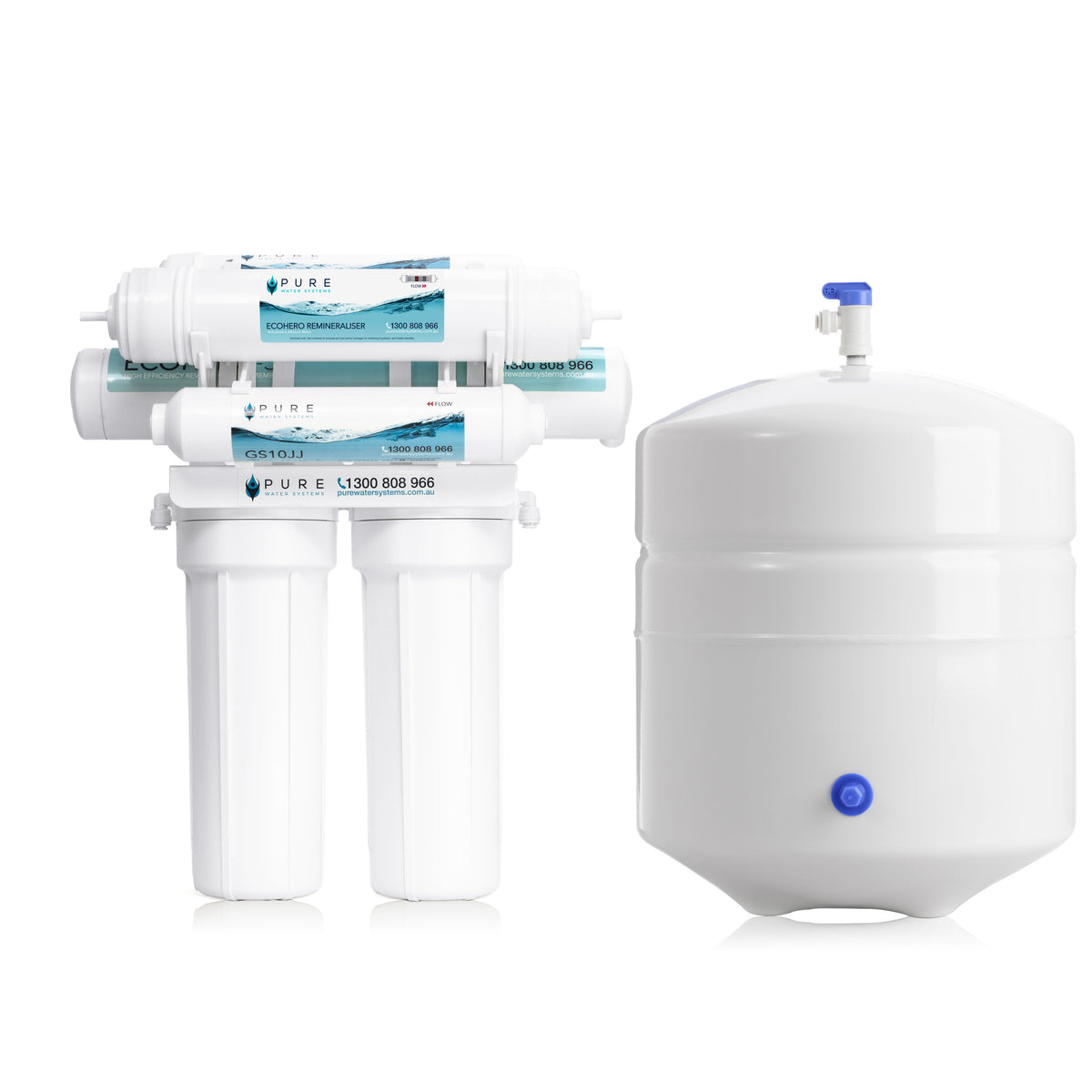

EcoHero 5 Stage Reverse Osmosis with Remineraliser – Under Sink (System Only)
The Pure Water Systems EcoHero 5 Stage Reverse Osmosis with Remineraliser delivers advanced water purification for those seeking exceptionally pure, great-tasting drinking water, conveniently from their kitchen tap.
Designed to fit neatly inside your under-sink cupboard, this system combines reverse osmosis technology, an additional deionising cartridge and a remineraliser to significantly reduce unwanted contaminants before restoring beneficial minerals to your purified drinking water.
CHOOSE YOUR FAUCET
The EcoHero Reverse Osmosis Water Purifier is installed inside your under-sink cupboard, keeping your kitchen benchtop clutter-free.
This is a System Only product and does not include a faucet. Choose a compatible standalone drinking water faucet or 3-way mixer tap to complement your kitchen design and installation requirements.
Explore our range of stylish mixer taps and faucets to complete your system.
WHAT IS REVERSE OSMOSIS?
Reverse osmosis is one of the most advanced methods of water purification, going beyond standard carbon filtration to reduce a wide range of contaminants found in drinking water.
The process forces water through an ultra-fine membrane, reducing dissolved impurities, including total dissolved solids (TDS).
The EcoHero system features the advanced EcoHero-50 Reverse Osmosis Membrane, designed to provide up to 300% improved wastewater efficiency compared with other reverse osmosis membranes.
Its ultra-fine 0.0001 micron membrane reduces total dissolved solids and contaminants such as fluoride, bacteria, viruses, herbicides, pesticides, nitrates and other organic and inorganic compounds.
The result is purified, great-tasting drinking water, conveniently available from your chosen faucet.
WHAT IS THE DIFFERENCE BETWEEN 4 AND 5 STAGE REVERSE OSMOSIS SYSTEMS?
The EcoHero 5 Stage Reverse Osmosis System includes an additional Deionising Cartridge, providing an extra level of purification beyond the 4 Stage system.
This additional cartridge helps remove residual total dissolved solids (TDS) remaining after reverse osmosis, achieving water purity levels similar to distilled water and as low as 0 ppm TDS under specified testing conditions.*
The deionising cartridge contains tiny resin beads that attract and capture electrically charged dissolved substances through a process called ion exchange.
This additional purification stage makes the EcoHero 5 Stage system ideal for customers seeking maximum contaminant reduction before remineralisation.
5 STAGE REVERSE OSMOSIS WITH REMINERALISER
The EcoHero 5 Stage Reverse Osmosis System with Remineraliser incorporates the following filtration components:
-
1 Micron Pre-Filter
-
10 Micron Carbon Block
-
EcoHero-50 Reverse Osmosis Membrane
-
Deionising Cartridge
-
Remineraliser Cartridge
-
Post Carbon Cartridge
Each component plays an important role in reducing contaminants, improving taste and restoring minerals to your purified drinking water.
WHAT IS REMINERALISED WATER?
Reverse osmosis is highly effective at reducing contaminants, including heavy metals such as cadmium, arsenic and chromium. However, the purification process can also remove naturally occurring minerals from water.
As part of the EcoHero 5 Stage Reverse Osmosis System, the Remineraliser cartridge is designed to reintroduce beneficial minerals after the purification process.
Why Choose a Remineraliser?
The EcoHero Remineraliser contains patented mineral crystal balls that help restore minerals to purified water, including calcium, magnesium, potassium and sodium.
The cartridge also raises the water's pH towards alkaline levels and is designed to reduce Oxidation Reduction Potential (ORP) while producing hydrogen-rich drinking water.
Installed inline with your reverse osmosis system, the remineraliser treats purified water during the final stage of the process.
What Is Oxidation Reduction Potential (ORP)?
Oxidation Reduction Potential (ORP) measures a substance's tendency to gain or lose electrons.
The EcoHero Remineraliser is designed to reduce ORP and produce hydrogen-rich drinking water as part of its remineralisation process.
CERTIFICATIONS & PERFORMANCE
The EcoHero 5 Stage Reverse Osmosis with Remineraliser Under Sink System is Lead-Free WaterMark Certified to AS3497 and incorporates NSF 42 Certified components.
The supplied product specifications state that the membrane cartridge is NSF 58 Certified for the following contaminant reduction performance:
| Contaminant | Reduction |
|---|---|
| Arsenic | 97.9% |
| Hexavalent Chromium | 99.7% |
| Trivalent Chromium | 99.6% |
| Barium | 99.6% |
| Selenium | 99.0% |
| Copper | 98.6% |
| Fluoride | 96.8% |
| Turbidity | 99.1% |
| Cadmium | 98.8% |
| Lead | 99.4% |
| Total Dissolved Solids (TDS) | 93.1% |
The system comes ready for installation, complete with its purification cartridges, high-quality housings, components and fittings.
Please note: A faucet is not included with this System Only option.
PEACE OF MIND
Pressure Limiting Valve
The EcoHero purification system incorporates a precision-machined, lead-free metal pressure limiting valve and dual check valve.
Designed to help protect against pressure spikes, prevent backflow and resist water hammer, this high-quality component provides additional protection for your water purification system.

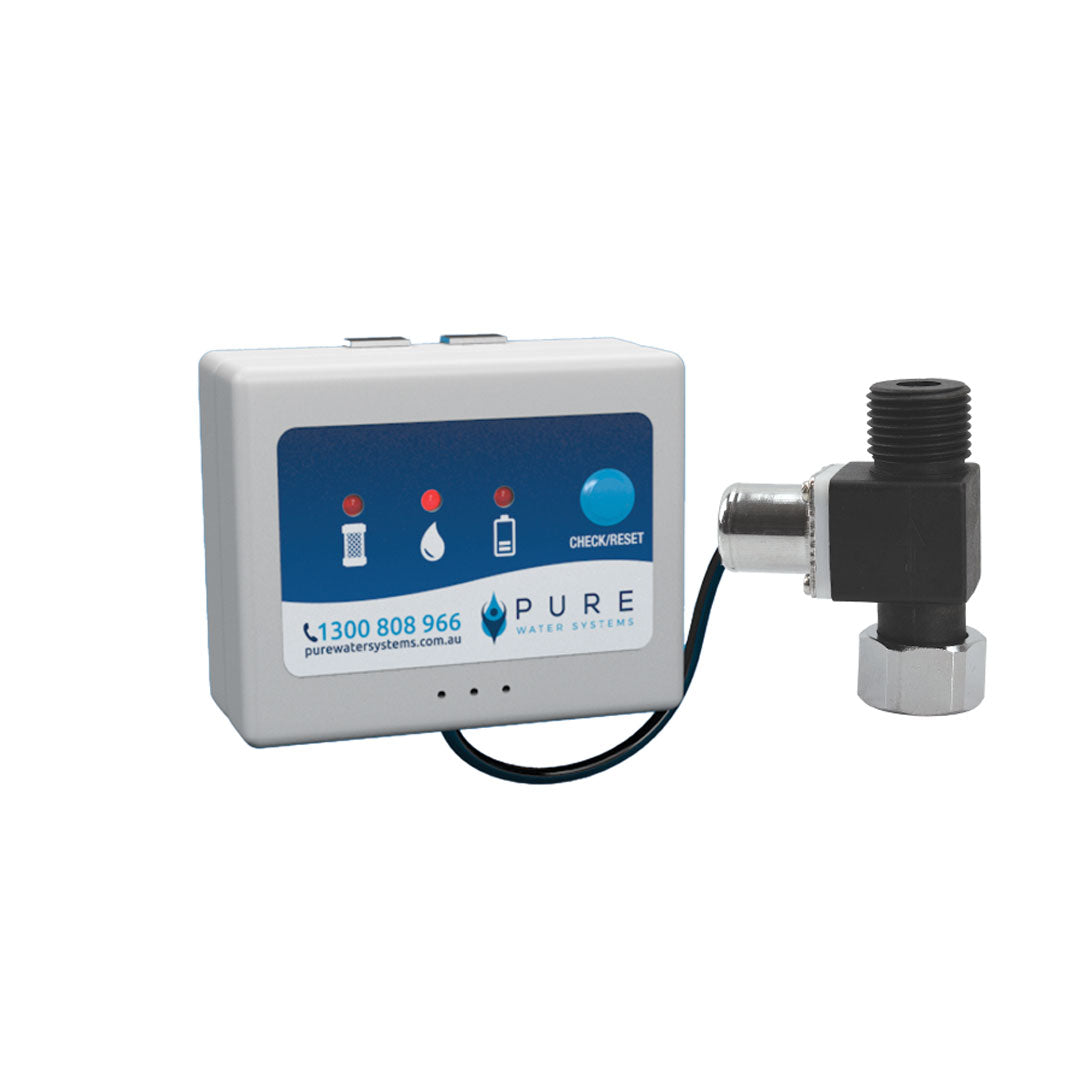

Cartridge Reminder & Leak Protection System
The EcoHero system also includes a Leak Protection System, designed to help protect your home against potential water damage.
If moisture is detected by the metal contacts on the control box, the system sounds an alarm and automatically isolates the water supply to the purification system.
The controller also features an integrated cartridge life monitor, providing a reminder when your filter cartridges are due for replacement.
Learn more about how the Leak Protection System works.
COMPLETE YOUR SYSTEM
Enjoy purified, remineralised drinking water for drinking, cooking, tea, coffee and everyday use.
The EcoHero 5 Stage Reverse Osmosis with Remineraliser is supplied with its purification components, housings and installation fittings.
System Only: Faucet not included. Select a compatible standalone faucet or 3-way mixer tap separately to complete your installation.
Based on an inlet TDS of 100 ppm. Internally tested using Pure Water Systems 5 Stage Reverse Osmosis systems.
WaterMark Certification refers to the purification system. Please refer to individual faucet and 3-way mixer tap product information for their certification details.
For installation, servicing and maintenance guidelines in your local area, please check with your local water authority or relevant state plumbing regulations, as requirements vary between states and territories.
Specifications
EcoHero 5 Stage Reverse Osmosis System with Remineraliser
System Specifications
| Specification | Details |
|---|---|
| System Type | 5 Stage Under-Sink Reverse Osmosis with Remineralisation |
| System Dimensions (H × W × D) | 450 × 385 × 130 mm |
| Tank Dimensions (H × D) | 360 × 280 mm |
| Membrane Rating | 0.0001 micron |
| Flow Rate | 190 litres/day (50 GPD) |
| Operating Pressure | 300–600 kPa (45–87 psi) |
| Operating Temperature | 5–49°C |
| Maximum Water Recovery | Up to 50%* |
| Wastewater Ratio | Approximately 1 part purified water to 1 part wastewater* |
| WaterMark Certification | AS/NZS 3497 |
| WaterMark Licence | 040326 (subject to model verification) |
| System Certification | Lead-free (subject to certification verification) |
| Installation | Under-sink installation by a licensed plumber |
| Warranty | 12 months |
EcoHero Remineraliser Specifications
| Specification | Details |
|---|---|
| Dimensions (H × D) | 355.6 × 75 mm |
| Flow Rate | 0.28 L/min |
| Operating Pressure | 70–600 kPa |
| Operating Temperature | 4–38°C |
| Materials Certification | NSF-certified materials |
| Recommended Replacement | Every 12 months |
| Compatible Systems | EcoHero 4 Stage and 5 Stage RO Systems |
Combined System Operating Limits: Installation must accommodate the operating requirements of both the reverse osmosis system and remineraliser. The remineraliser has a maximum operating pressure of 600 kPa and maximum temperature of 38°C.
Certified Contaminant Reduction Performance
EcoHero Reverse Osmosis Systems have been tested and certified under AS/NZS 3497 for the reduction of 11 substances. The following results represent average reductions under specified testing conditions.
| Contaminant | Average Reduction |
|---|---|
| Arsenic | 97.9% |
| Hexavalent Chromium (Cr6+) | 99.6% |
| Trivalent Chromium (Cr3+) | 99.7% |
| Barium | 99.6% |
| Selenium | 99.0% |
| Copper | 98.6% |
| Fluoride | 96.8% |
| Turbidity | 99.1% |
| Cadmium | 98.8% |
| Lead | 99.4% |
| Total Dissolved Solids (TDS) | 93.1% |
Results are based on certified laboratory testing under specified conditions. Actual contaminant reduction may vary depending on incoming water quality, operating pressure, temperature and filter maintenance.
In-House TDS Testing
| Measurement | Result |
|---|---|
| Incoming Water TDS | 96 ppm |
| After RO Membrane | 3 ppm |
| Test Date | 29 October 2018 |
These historical in-house readings were measured after the RO membrane and before remineralisation. They are separate from the certified contaminant reduction results and should not be interpreted as guaranteed household performance.
Filter Cartridges
| Position | Cartridge | Product Code |
|---|---|---|
| Stage 1: Sediment Pre-Filter | 1 Micron Polypropylene Spun Pre-Filter | PWS-P1 |
| Stage 2: Carbon Pre-Filter | 10 Micron Carbon Block | PWS-5+ |
| Stage 3: Reverse Osmosis Membrane | EcoHero 50 Membrane | PWS-MEM50 |
| Stage 4: Carbon Post-Filter | 5 Micron Encapsulated Granular Carbon Filter | GS10JJ |
| Stage 5: Remineralisation | EcoHero Remineraliser Cartridge | POU-REMIN-01 |
Remineralisation: The final treatment stage reintroduces minerals and helps adjust pH following reverse osmosis purification, providing mineral-enriched drinking water.
Filter Maintenance: Replacement intervals depend on incoming water quality and household usage. Refer to the recommended replacement schedule for each cartridge to maintain optimal filtration performance.
Certifications
| Component | Certification |
|---|---|
| EcoHero 5 Stage RO System | AS/NZS 3497 |
| Filter Housing | NSF Standard 42 |
| EcoHero 50 Membrane | NSF/ANSI Standard 58 |
| Tubing | NSF Standards 51 and 61 |
| John Guest Fittings | NSF Standards 51 and 61 |
| Holding Tank | NSF Standard 58 |
| Remineraliser Materials | NSF-certified materials |
Component certifications are based on the supplied product information and should be checked against current supplier documentation.
Materials
| Component | Material |
|---|---|
| Filter Housing | Food-grade polypropylene |
| RO Membrane | Aromatic polyamide thin-film composite |
| Holding Tank | Stainless steel, high-grade chlorobutyl diaphragm and virgin polypropylene liner |
Supplied With
| Component | Included |
|---|---|
| EcoHero 5 Stage Reverse Osmosis System | Yes |
| Mounting Bracket | Yes |
| Standard Filter Cartridges | Yes |
| Fifth-Stage Treatment Cartridge | Subject to confirmed configuration |
| Holding Tank | Yes, capacity to be confirmed |
| EcoHero Remineraliser Cartridge | Yes |
| Cold Water Connection Kit | Yes |
| Isolation Tap | Yes |
| Pressure Limiting / Dual Check Valve | Yes |
| High-Pressure Tubing | Yes |
| Drain Clamp | Yes |
| Installation Instructions | Yes |
| Drinking Water Faucet | Not included with system-only purchase |
Important Performance Information
Water recovery rates of up to 50% are based on optimal operating conditions. Actual water efficiency, filtration performance and flow rates depend on incoming water quality, water pressure, temperature and system maintenance.
Replacement filters should generally be changed every 12 months or 8,000 litres, whichever occurs first, unless individual cartridge instructions specify otherwise. More frequent replacement may be necessary depending on water quality and usage.
The remineralisation cartridge reintroduces minerals and helps adjust pH following reverse osmosis purification. As a result, final drinking water TDS readings may be higher than measurements taken immediately after the RO membrane.
