Product Description
The Pure Water Systems Twin Under Sink Water Filter System is a highly efficient filtered water solution, perfect for those wanting an extra level of filtration. Twin Under Sink Water Filter Systems have a pre-filter cartridge as the first stage of filtration, which allows for optimal performance of the second stage, submicron carbon block cartridge.
These systems can be neatly plumbed under your sink, and this bundle includes a modern and stylish LED Faucet installed over the sink for great tasting, fresh filtered water on tap. Perfect for your home or office, these filter systems reduce clutter on your bench top area, and can be installed inline to a water chiller.
Naturally occurring contaminants such as parasites and bacteria, as well as disinfection products used by Australian water authorities (such as chlorine and aluminium sulphate) can be found in our everyday tap water. Some harmful parasites like giardia and cryptosporidium cysts can even survive disinfection processes, potentially causing severe illness.
The Pure Water Systems filtration system incorporates a precision machined, full metal construction pressure limiting valve and dual check valve, providing protection from pressure spikes, preventing backflow, and resisting water hammer. Whilst this is a requirement under Australian Standards, we have chosen this valve as it is ultra-reliable and performs to the highest standard, giving you peace of mind that your system is protected.
Choose from our high-quality town water or tank water options to suit your requirements.
Town Water Twin Under Sink Filter System:
The Twin Under Sink Filter System for town water utilises a 1 micron Town Water Pre-Filter cartridge, combined with the submicron Hi-Tech Optimiser (HTO) cartridge for superior filtration. The HTO is the hero of Australian water filter cartridges, with its unique triple action filtration featuring advanced carbon block technology, pharmaceutical grade membrane and an electrostatic outer wrap. The HTO cartridge has been formulation tested with unrivalled results to remove 99% of chlorine, 98% of lead and 99.95% of parasites (including giardia and cryptosporidium), effectively removing up to 101 contaminants from your water.
Tank Water Twin Under Sink Filter System:
The Twin Under Sink Filter System for tank water utilises a 5 micron Tank Water Pre-Filter washable cartridge, combined with the 3 stage ceramic Doulton Ultracarb cartridge to immediately improve the taste and quality of your tap water. The submicron Doulton Ultracarb cartridge is formulation tested to remove 99.99% of bacteria, parasites and particles such as potentially harmful pathogenic organisms like giardia, cryptosporidium, e-coli, cholera, typhoid, kiebsiella terrigena and shigella.*
Due to its superior contaminant holding capability, the tank water pre filter is ideal for water supplies where high levels of sediment, sand, dirt and rust are of concern. This cartridge’s pleated design maximises dirt holding capacity, while the durable polyester media is bacteria and chemical resistant.
Because the Doulton Ultracarb’s outer ceramic surface is designed to catch and filter a large range of contaminants such as sediment, dirt and parasite cysts (like giardia and cryptosporidium), this may cause the cartridge’s flow to reduce over time. The Doulton Ultracarb can be conveniently restored to its normal flow level during its 12-month period of use with a little DIY maintenance. Simply remove the ceramic cartridge from its housing and gently scrub clean with a brush or a lightly abrasive pad for an extended life and improved flow.
Both town and tank water Twin Under Sink Filter Systems are Watermark Certified and have NSF Certified components.
Enjoy more than just great tasting drinking water, as a Single Under Sink Water Filter System is perfect for washing fresh produce, water for cooking, tea and coffee, pets water dishes, watering plants and more!
COMPLIMENTED WITH A MODERN AND STYLISH LED FAUCET
A wide range of stylish LED Faucets are available to suit your unique style for an aesthetic addition to your kitchen.
Its clever design features a LED light that illuminates blue when fresh, filtered water flows through. The LED indicator will then change to red to indicate when it is time to replace your filter cartridge, so there is no more guessing or forgetting.
Simply replace the faucet battery at the same time as your filter cartridge to reset the LED indicator for another 12 months*. To make life even easier, Pure Water Systems will supply a replacement faucet battery when you purchase a replacement filter cartridge.
Specifications
TWIN UNDER SINK SPECIFICATIONS
Flow Rate | 3 Litres / Minute |
Min / Max Pressure | 30 - 100 psi (210 - 700 KPa |
Min / Max Temperature | 4.4 - 38°C |
Dimensions (H x L x D) | 320mm x 270mm x 130mm |
Watermark Certification | WMTS-103 Licence #WM-022727 |
TOWN WATER PRE-FILTER SPECIFICATIONS
Flow Rate | 18.9 Litres / Minute |
Min / Max Temperature | 4.4 – 62.8°C |
Product Dimensions | 61mm x 251mm |
Micron Rating | 1 Micron |
Material | 100% Food Grade Polypropylene |
Certification | NSF42 |
TOWN WATER CARTRIDGE SPECIFICATIONS
Flow Rate | 3 Litres / Minute |
Min/Max Pressure | 30 - 100 PSI (210 - 700 KPa) |
Max Temperature | 38°C |
Cartridge Dimensions | 250mm x 73mm |
Micron Rating | Submicron |
Material | Electrostatic outer wrap, Pharmaceutical grade membrane, Blend of activated carbons |
TANK WATER PRE-FILTER SPECIFICATIONS
Flow Rate | 38 Litres / Minute |
Min / Max Temperature | 4.4 – 51.7°C |
Cartridge Dimensions | 248mm x 67mm |
Micron Rating | 5 Micron |
Material | Food Grade Polypropylene, Non-woven Polyester (reusable) |
TANK WATER CARTRIDGE SPECIFICATIONS
Flow Rate | 1.9 Litres / Minute |
Min/Max Pressure | Min - 30 PSI - Max - 125 PSI (we recommend a minimum of 60 PSI) |
Min/Max Temperature | 5°C - 30°C |
Product Dimensions (L x D) | 248mm x 67mm |
Micron Rating | Submicron |
Material | Ceramic outer shell, Carbon block, Ion exchange resin |
*Doulton Ultracarb Cartridge is not recommended for gravity tank systems. Please contact our Product Specialists on 1300 808 966 for alternative options.
HOUSING SPECIFICATIONS
Max Pressure | 125 PSI |
Product Dimensions | 290mm x 114mm x 111mm |
Min / Max Temperature | 4.4 - 51.7°C |
Material | Food Grade Polypropolene, EPDM O-Ring |
Certification | Watermark, NSF42 |

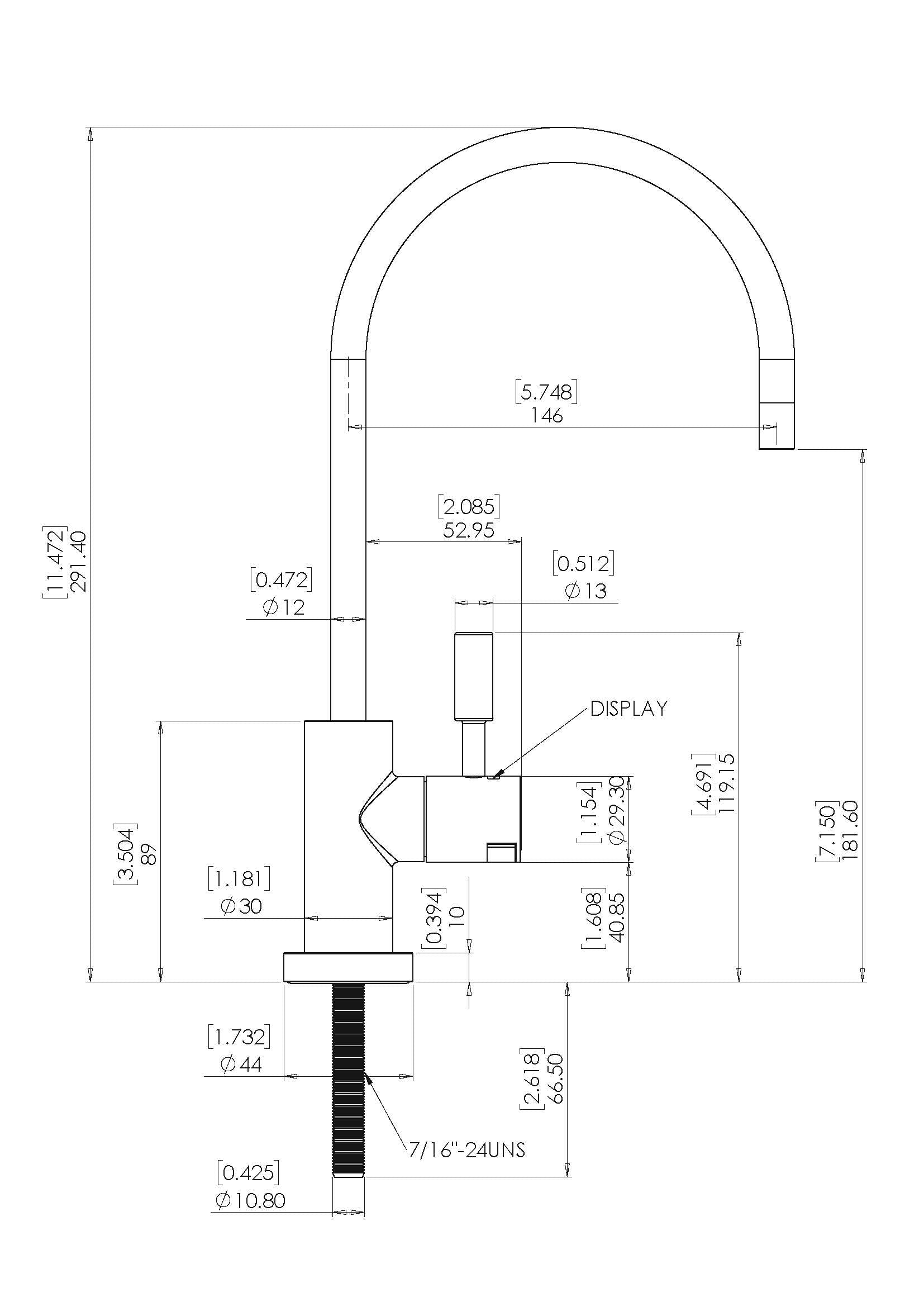

LED FAUCET SPECIFICATIONS
Recommended Water Source | Mains (treated),Tank (rain), Bore, River water supply |
Weight | 0.4kg |
Max Pressure | 125 PSI |
Materials | Body = DR Brass (CZ132), Spout = Brass (C27000), Orings (spout) = EPDM, Shank (Tube) = Brass (CZ132), Handle = Brass |
Connection | Connect to 1/4" (6mm) nylon tube via an olive, insert and compression nut (supplied with faucet) |
NSF certified | NSF 61 |
Sink Hole | 12mm |
Max. Bench Thickness | 60mm |
Faucet Height | 292mm |
Spout Height | 182mm |
Warranty | 1 Year Warranty* |
SUPPLIED WITH
Twin filter housing with mounting bracket | ||||
Pre-Filter for Town (PWS-P1) or Washable Tank Water Pre-Filter (R5) | ||||
Submicron Town (PWS-HTO) or Tank Water Cartridge (CER1) | ||||
Slimline LED Faucet | ||||
Australian approved standard cold water connection kit including:
|
